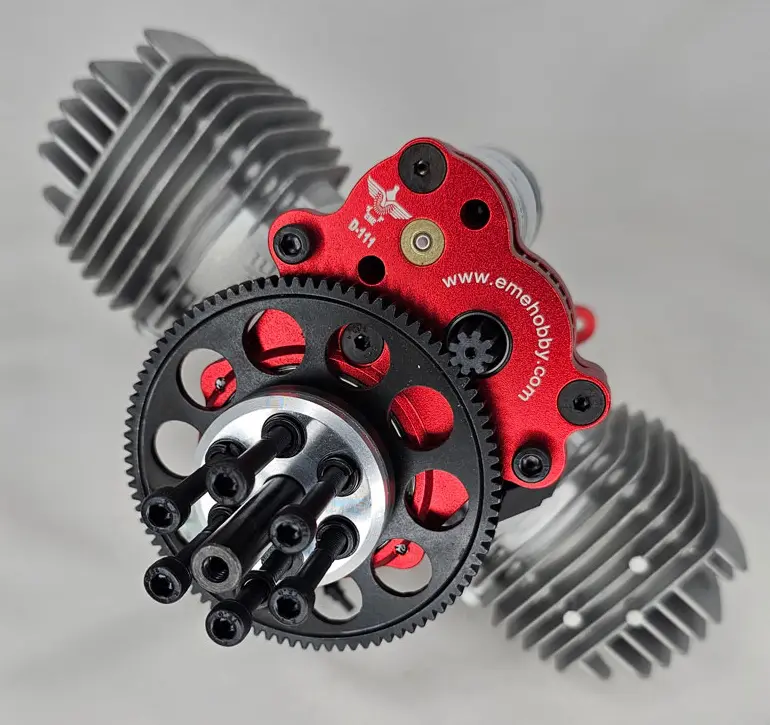

EME Engines 120CC Engine Twin Auto Start

Description

EME (Eagle Master Engine) is a highly regarded brand of 2-stroke gasoline engines built specifically for large-scale and giant-scale RC aircraft. Known for offering an excellent balance of value, smooth performance, and premium hardware (such as genuine Walbro carburetors and NSK/NRB bearings), they are widely recognized for their optional onboard electric auto-start systems.

• • Genuine Fuel Systems: Unlike many competitors that use replica carburetors, EME installs authentic Walbro carburetors across their product line to prevent finicky tuning and ensure linear throttle response.

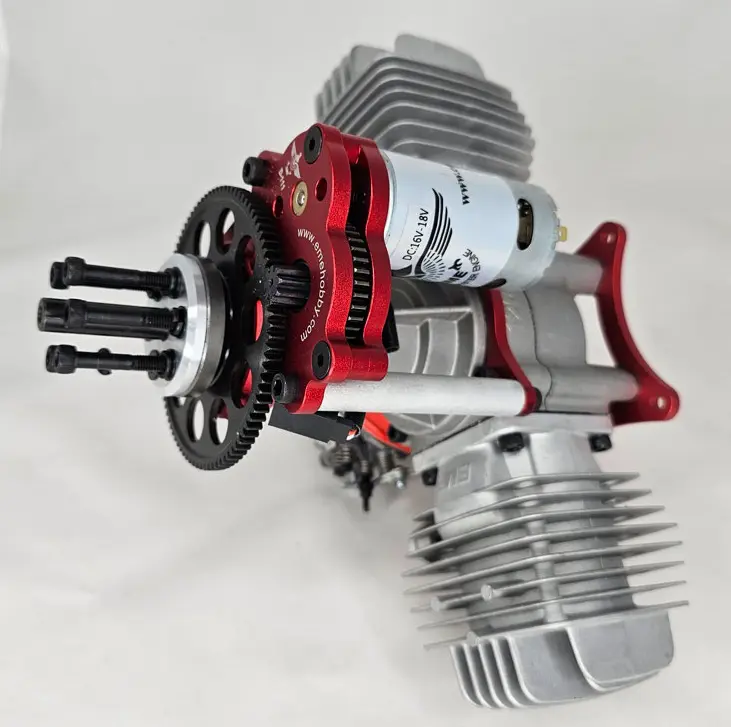

  • Onboard Auto-Starters: EME was one of the first brands to make highly integrated electric starters popular. Starters can be bought pre-installed or added later via specialized Auto Start Kits. They use a heavy-duty brushed motor paired with a one-way bearing to safely start the engine from your transmitter switch.
  • High-End Ignition Modules: All modern variants utilize high-voltage Rcexl or EME electronic ignitions (rated for 4.8V to 12V or 2S LiPo direct), removing the need for a separate voltage regulator on your ignition battery.

Specifications:

• Displacement: 120 cc
• Weight: 5.97 lb. with Mufflers & Ignition
• Engine- 5.3 lb (2400g), Muffler – .35lb (160g), Ignition – .3lb (160g)
• RPM Range: 1,100-7,200
• Output: 12.2 hp @ 7,000 rpm
• Requires: unleaded gasoline (91~93 octane), oil (35:1), ignition battery (6.6 V- 7.4 V) & propeller
• Includes: electronic ignition, muffler, spark plug, gasket, bolts, machined aluminum standoffs
• Suggested Propellers: 27×10, 28×10, 28×12, 29×10 (3-blade: 27×12) – Prop bolt pattern is the same as DLE 111

Technical Data:

• Ignition Battery: 7v – 15v
• Compression Ratio: 7.6:1
• Gas/Oil Mix: 30:1 ~ 35:1
• Replacement Spark Plug: NGK CM6 or equivalent
• Carb: Walbro WJ71

Specifications:

• 540 Brushed Motor
• Weight: 560g/ 19 oz
• Voltage: 7.2-11.1V -A 3c (11.1V) lipo, 1800mah is recommended
• Can also be activated with 40-60A brushed ESCs and servo-operated switches; EME Engine Auto Start Controller recommended.

Auto Start Specifications:

• 550 Brushed Motor
• Weight: 850g/ 30 oz
• Voltage: 7.2-11.1V -A 3c (11.1V) lipo, 1800mah is recommended
• Can also be activated with 40-60Amp Brushed ESC’s and servo-operated switches; EME Engine Auto Start Controller recommended.

18 Month Warranty – Serviced right here in the USA.
