Jetapult® Complete System Short Set

Description

SHORT SET NOTE: This is the short set which includes everything except the rails.  The rails can be purchased at any location that sells pvc.  The rails need to be 3/4″ (19mm) in diameter by 4 feet (1,220 mm) long.  Longer rail lengths can be used with the system.  This package is designed to be shipped in a smaller box saving the customer money in shipping costs.  This option is beneficial for foreign orders.

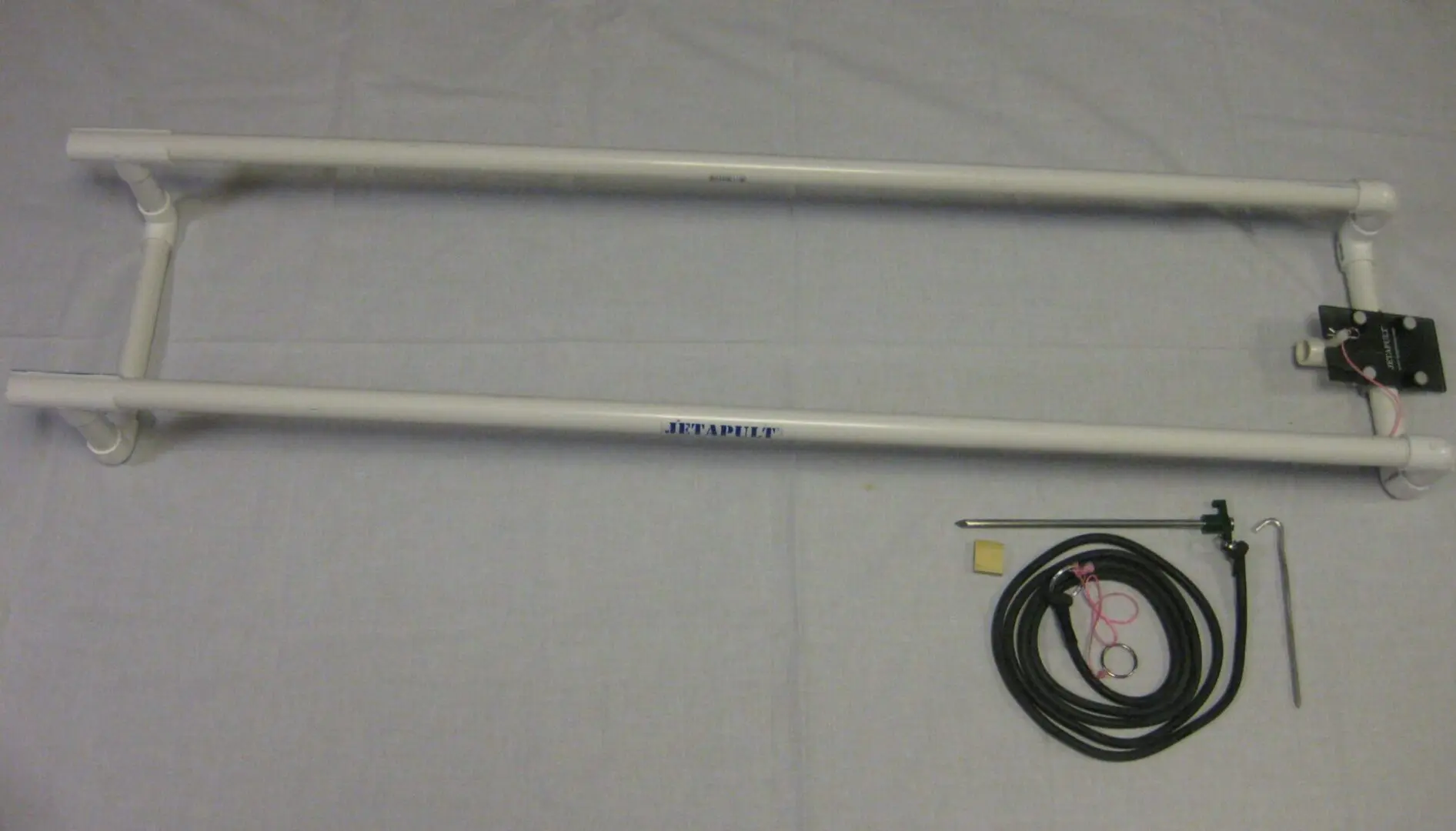

The Jetapult® developed by Fan Jets USA is engineered to launch various sizes of EDF jets. It operates by a bungee being tethered to the aircraft and a release point on the Jetapult®. The Jetapult® offers hands-free operation. The release mechanism is operated by the flyers foot, keeping the hands on the transmitter for optimum control. ALL PARTS ARE INCLUDED EXCEPT THE RAILS, including the bungee 1 tow hook kit and anchor spikes. No gluing is necessary. The Jetapult® easily compacts down to a very small size to fit into any size car for transportation.

The Jetapult® can be seen on You Tube!

 SPECIFICATIONS:

• Jet Size: 64 to 70mm EDF Jets recommended (2 to 5lbs/ 2267g)
• Can be used to launch airplanes like Funjets, Zagi’s, Styker, and other propeller-driven airplanes.
• Bungee Material: Silicone (This material is more costly compared to surgical tubing but holds its elasticity and is more durable giving better performance over a longer period of time.)
• The kit comes with one tow hook kit.
• No gluing required

OPERATION:

The Jetapult® operates similarly to a glider high start system. Except the jet flies out parallel to the ground and not straight up like a glider. It utilizes the same type of attachment to the fuselage by means of a tow hook on the underside of the fuse. Place a tow hook on the bottom of the fuse halfway between the nose of the aircraft and the leading edge of the wing. It is necessary to have this tow hook reinforced with epoxy, a plywood piece to glue the tow hook into, and a glass cloth to avoid the hook being ripped out of the fuse.

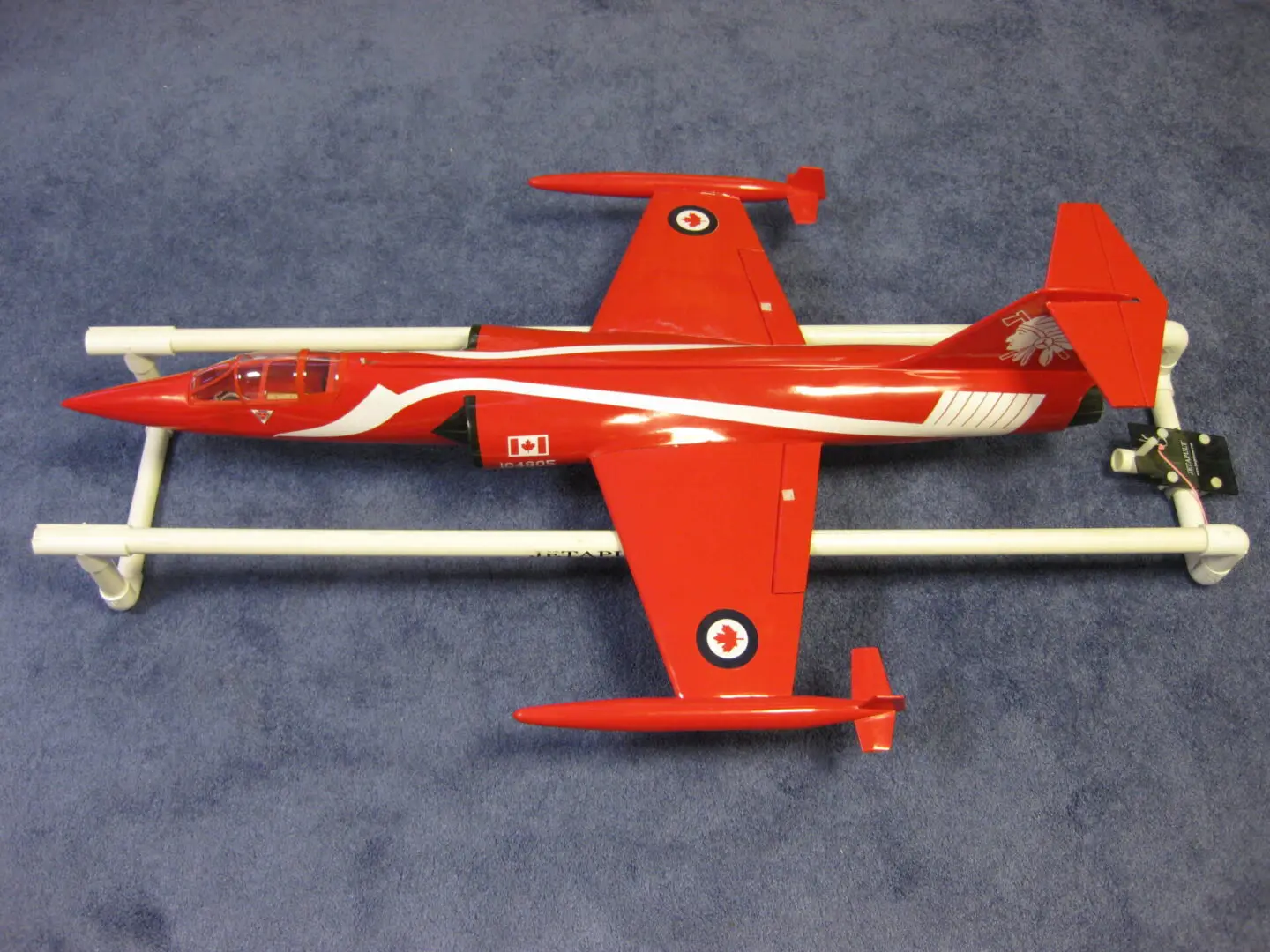

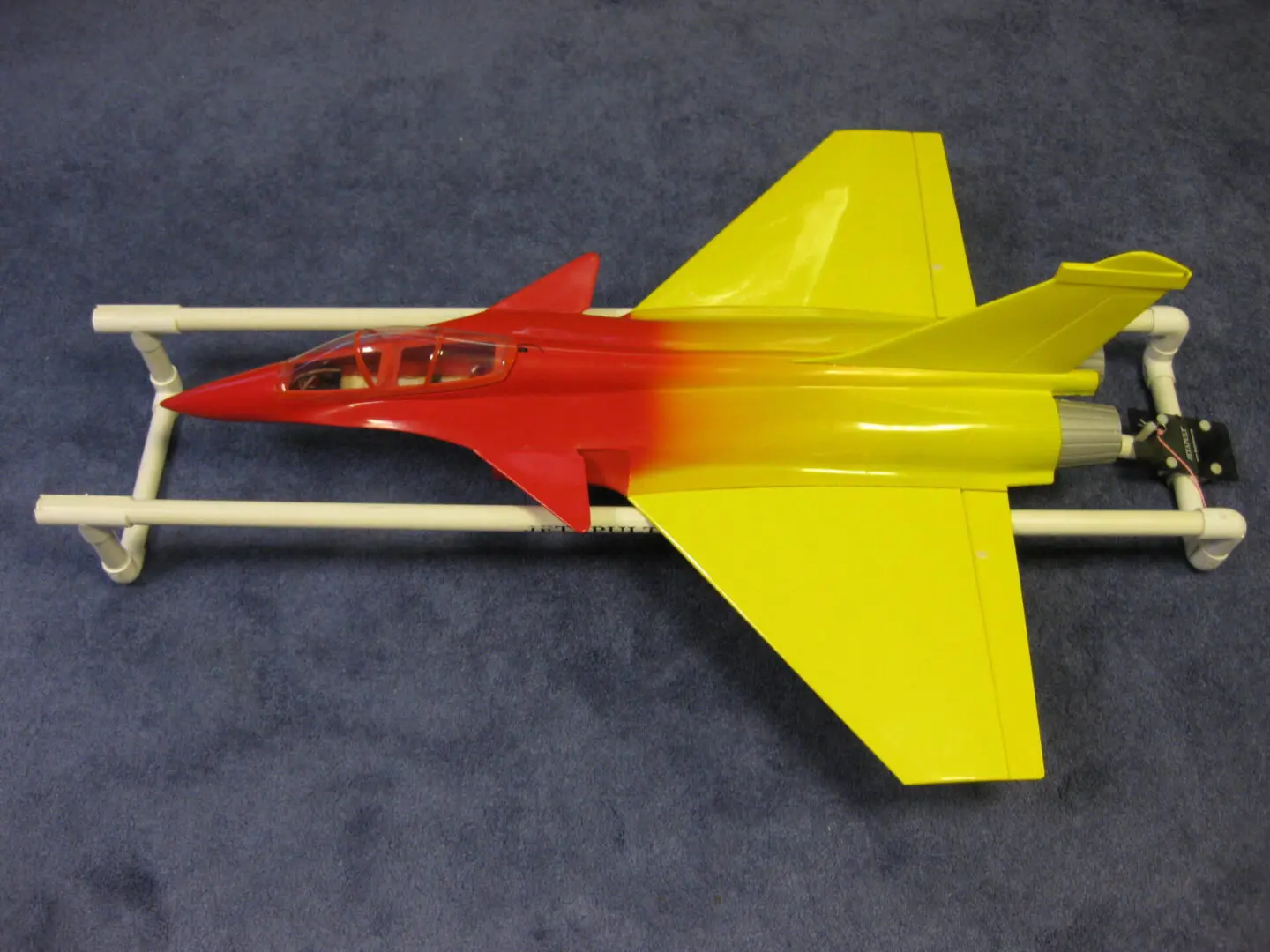

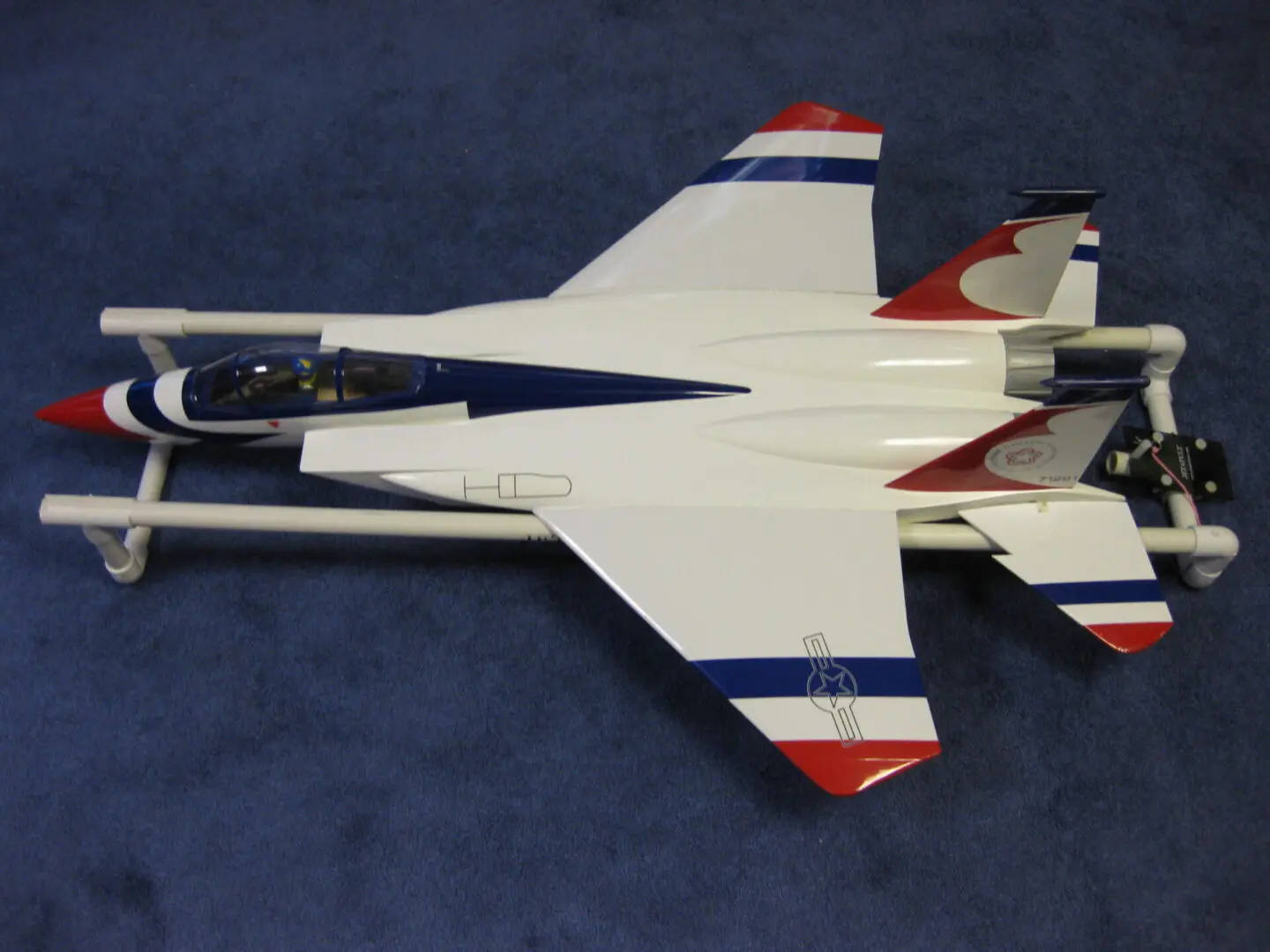

Picture Note: Jets shown in pictures are not included!

Customer Testimony:

I just wanted to let you know your jetapult is awesome. “I have a foam BD-5J that was a 1 outta 2 on hand launch, with the Jetapult launch is great, step on the release and no more struggling. The price can’t be beaten either, it wouldn’t be worth going out and finding all the parts and cutting them to size.” -Tim Crookham

World Famous Jetapult®: Even John Glenn uses our Jetapult!

Insurance Note:  Fan Jets USA recommends the purchase of shipping insurance. If insurance is not purchased and the package is lost or damaged, the most that can be claimed with the USPS and awarded to the purchaser (shipment recipient) is $50.00.  Fan Jets USA is not responsible for reimbursing the purchaser the difference of an order of any amount.  Shipping charges are not included in an insurance claim per USPS guidelines.

CA Residents: WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
