JP Hobby 150 Retract/Brake Controller Ver. B

Description

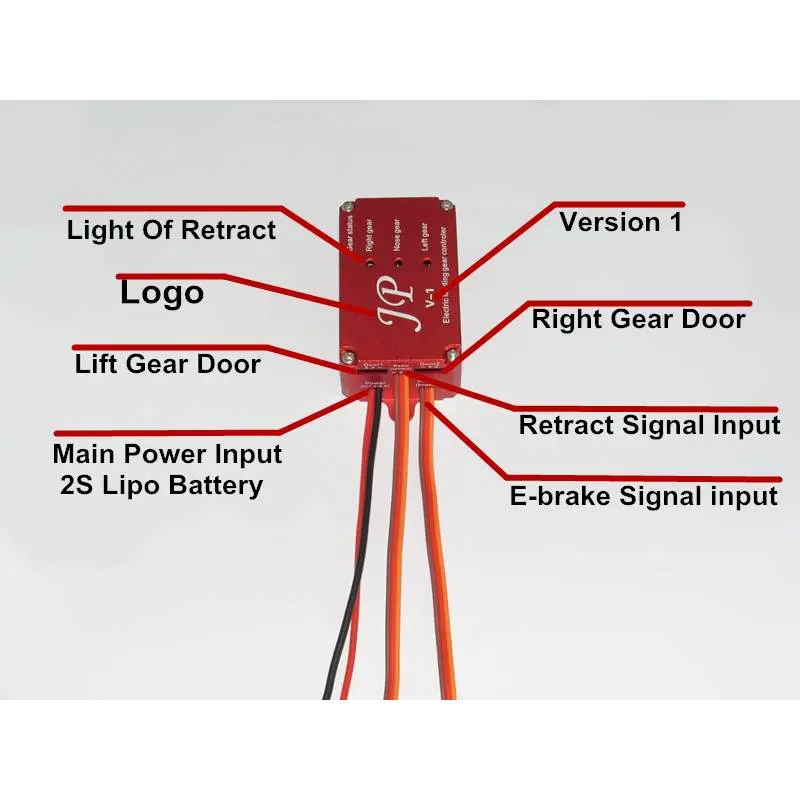

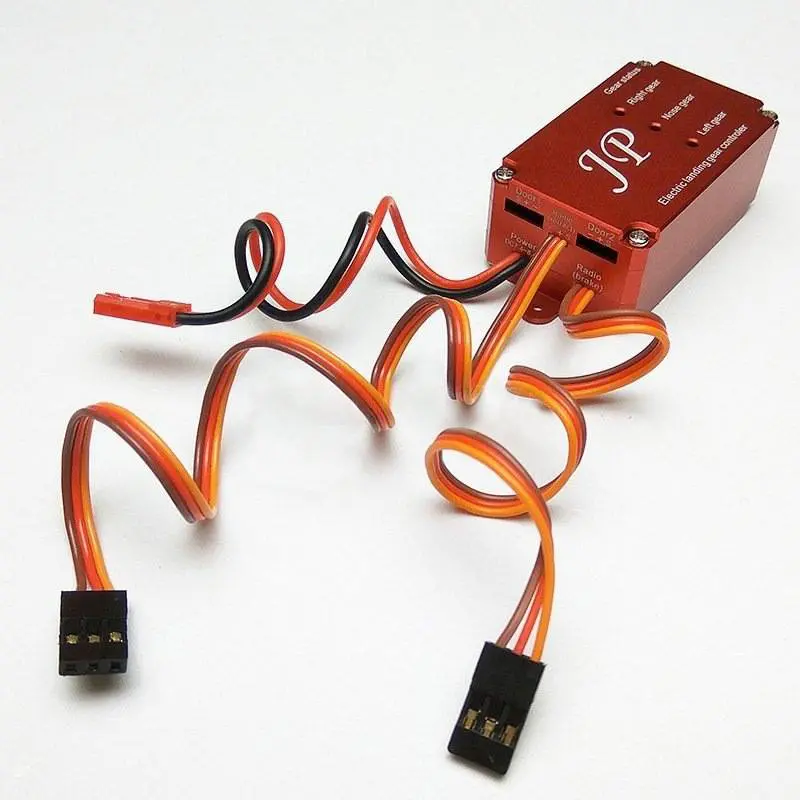

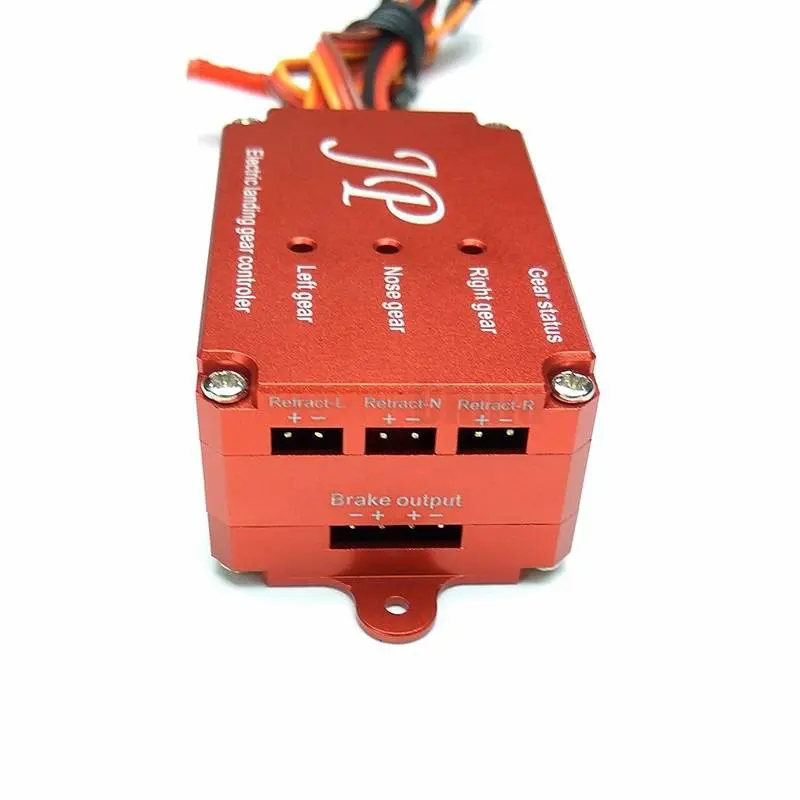

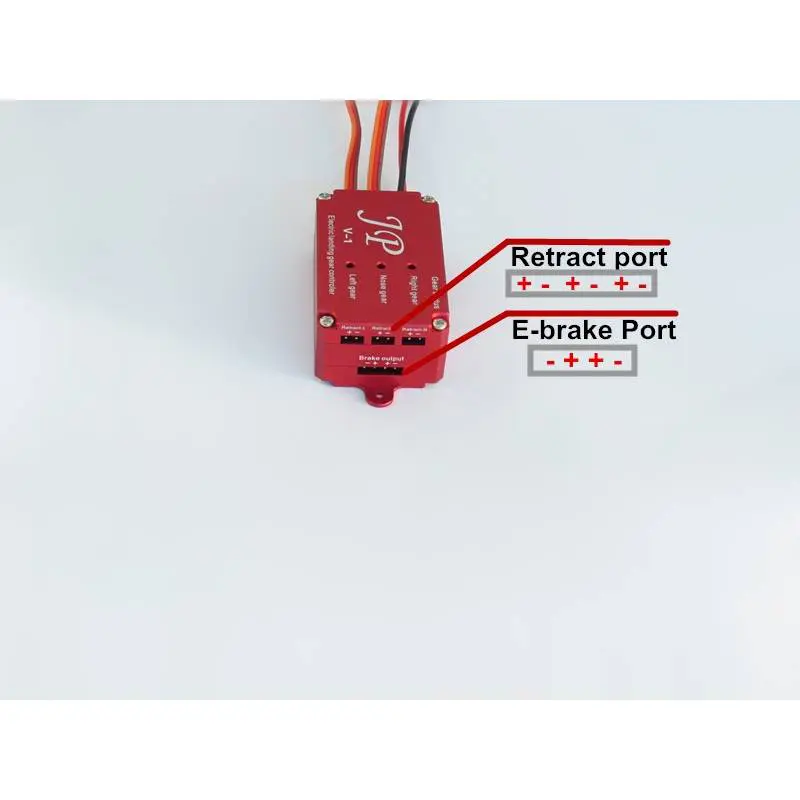

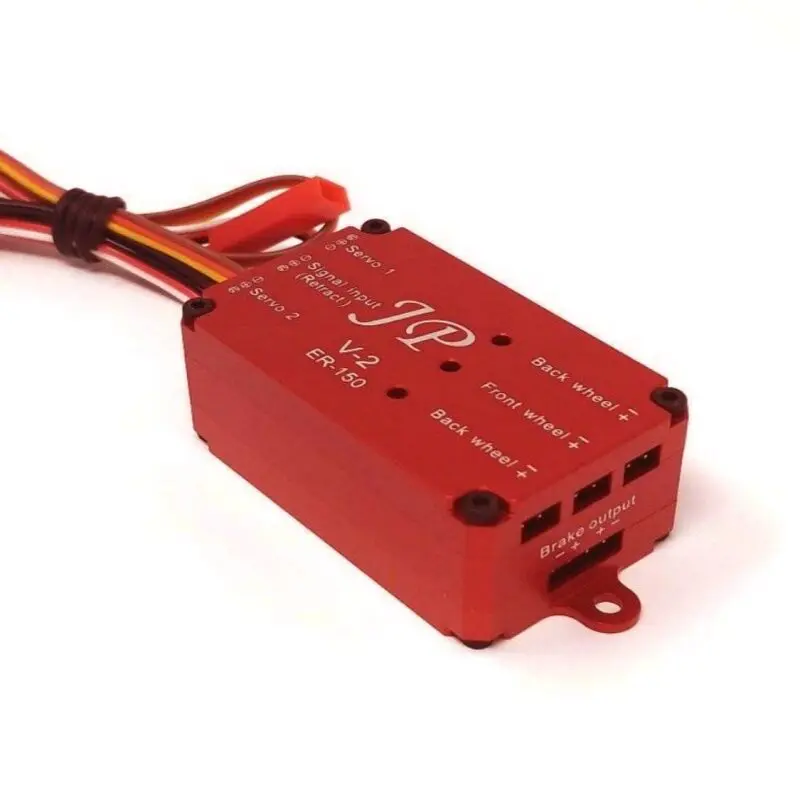

The JP Hobby Integrated E-Retract and E-Brake control box is used to control both electric retracts and electric brakes from one control box.

Retract Control:

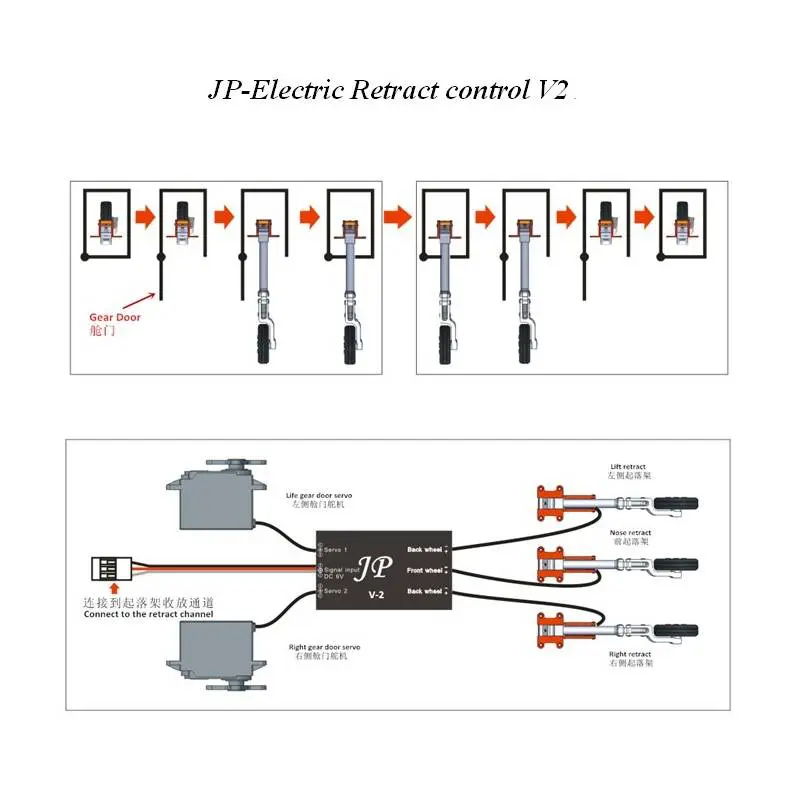

This is a replacement control box for the JP Hobby electric retracts.  It will work with er-150 JP Hobby retracts. The gear doors will close while the gear are down.

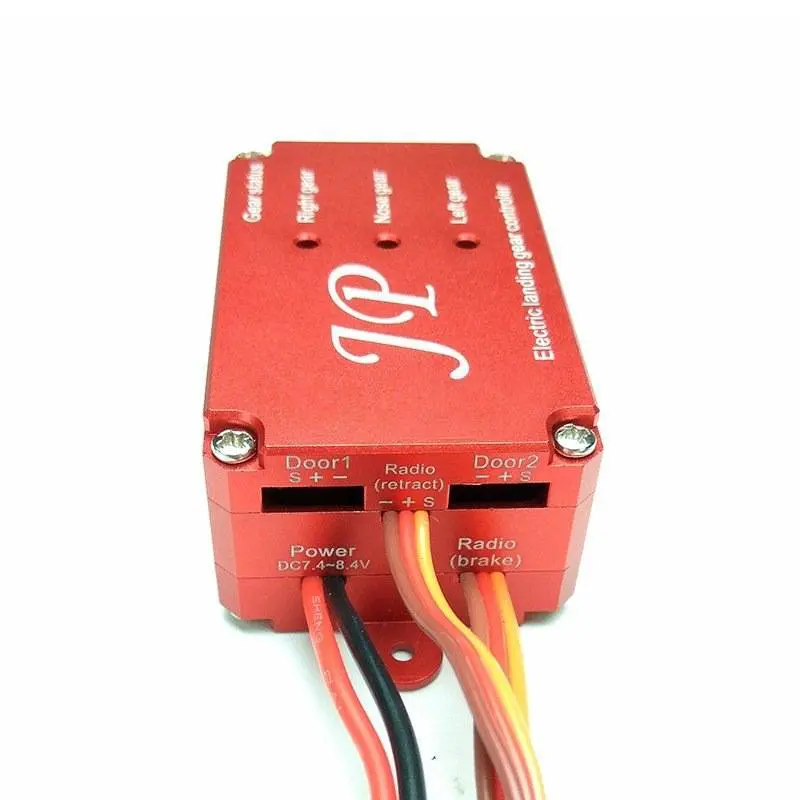

Power: 7.4-8.4V

Features:

1: Completely controlled by electricity, no more trouble from air brake air leaking.

2: The controller will shut down the brake after 1 minute automatically , The controller will smartly detect it if you the brake stop for 1 minutes, and automatically reset it to its normal function.

Brake Information:

1.Voltage input:7.2V-8.4V external battery.

2.Signal input: Connect remote control to a on/off channel on the receiver to set the reaction.

3. Strength of the braking power is controlled by the epa percentage on the transmitter.

Contents:

• Control Box for gear and brake operation
