JP Hobby Adjustable E-Brake Controller w Gyro
Original price was: $69.99.$59.99Current price is: $59.99.
Item #: JPH-ME-G-Brake Controller
Manufacturer: JP Hobby
Manufacturer’s Product Number: JPH-ME-G-Brake Controller-1
Condition: New
Description

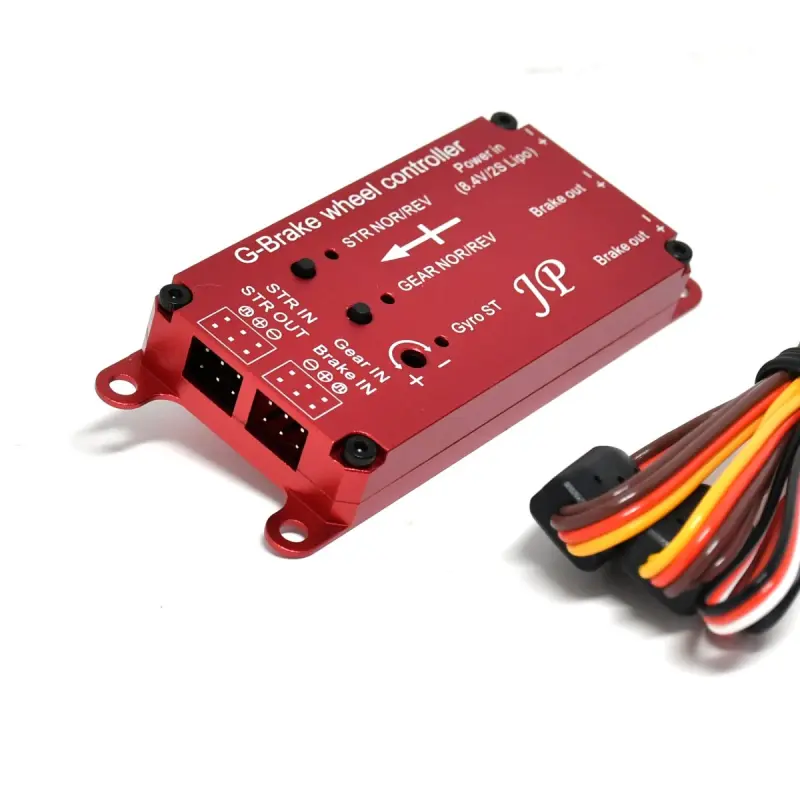

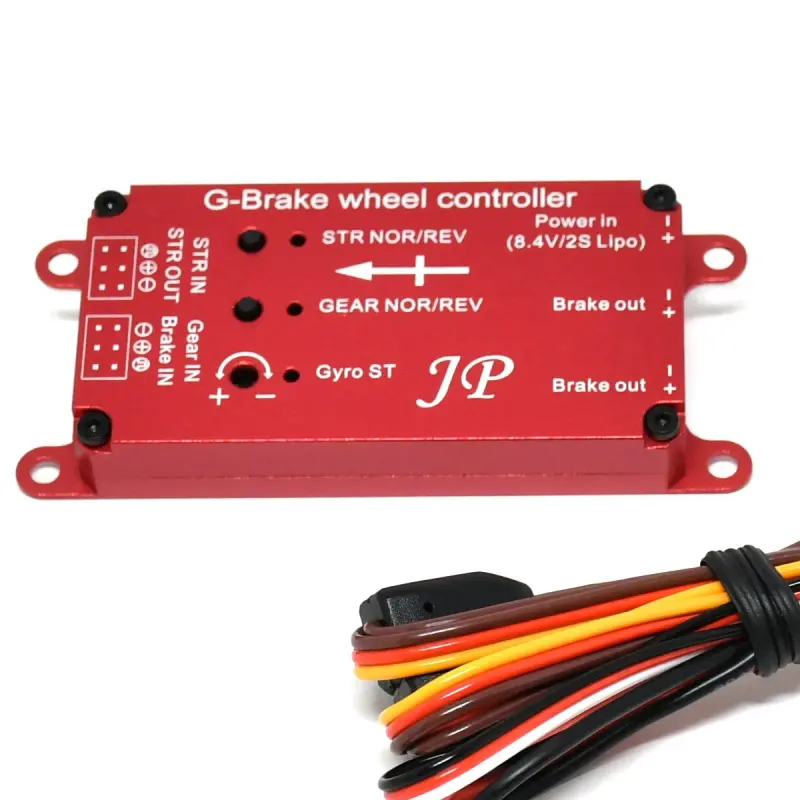

Adjustable control Box for JP Hobby electric brakes. This control box features an aluminum case for protection with mounting tabs for easy installation. It also allows the braking tension to be independently adjusted for each wheel with the simple turn of a screwdriver along with a gyro to keep the plane steering straight.
Specifications:
- Input Voltage:7.4V (2S lipo)
- Output Voltage: 7.4V
- Size: 80 x 34 x 11mm
- Weight: 42g

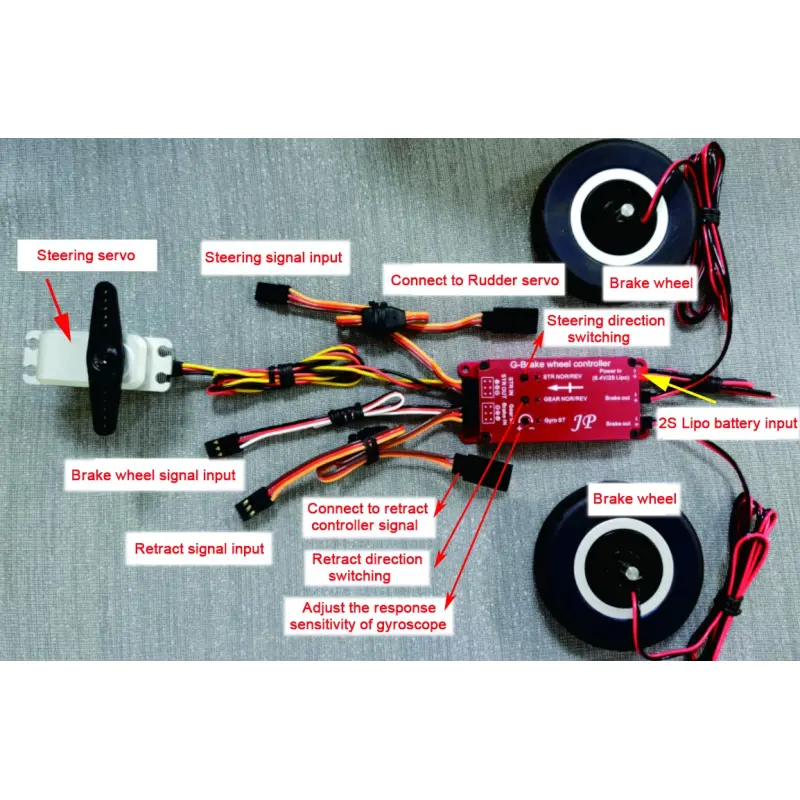

JP E-Brake Using illustration
- Direct power supply from an additional dedicated 2S battery.
- Connects directly to the receiver on the Rudder channel, retractable gears, and a 2-position switch.
- The controller is equipped with a gyroscope which acts on the steering servo of the front wheel to keep your model on the axis of the landing way when braking.
- the gyroscope becomes inactive when the gear is retracted as does the front wheel servo.
- You can reverse the rotation direction of the front wheel servo.
- you can reverse the direction of the in/out or out/in retracts.
- You can adjust the brake strength with your radio. +/-100% (or a higher value like +/-140% if your radio allows it) is the maximum power. You can modify this value to obtain softer braking but always start by testing with the maximum value.
JP Hobby Gyro Brake wheel Controller Manual
