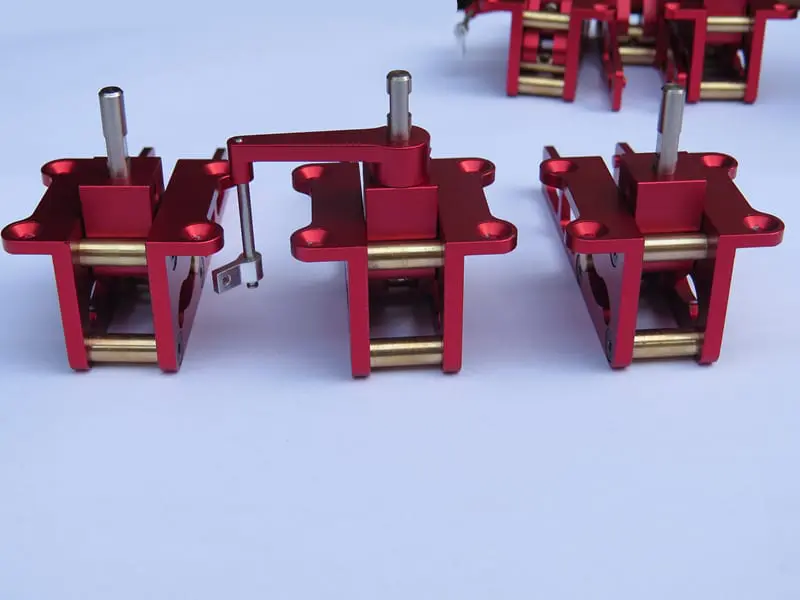

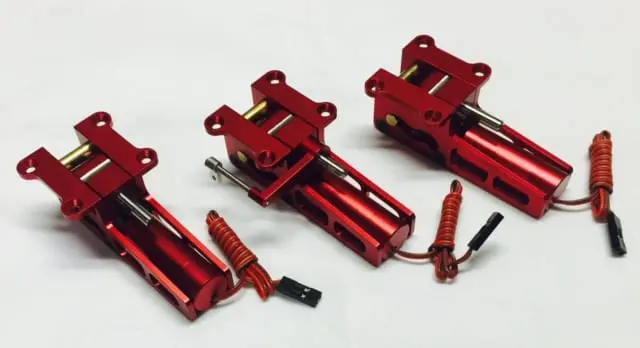

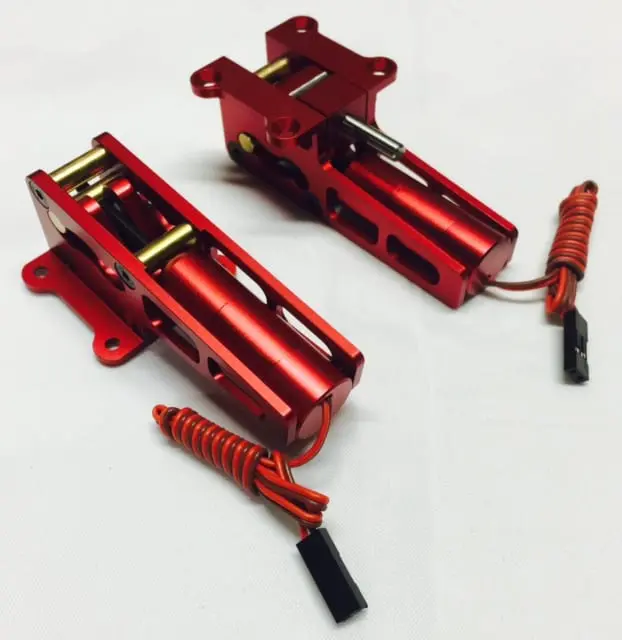

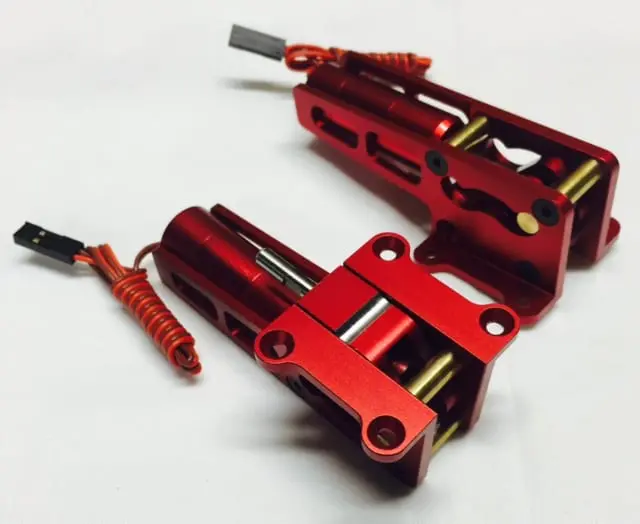

JP Hobby ER-005 Retracts

Sale!

Original price was: $179.99.Current price is: $159.99.

In stock

Item #: JPH-ER-005
Manufacturer: JP Hobby
Manufacturer’s Product Number: JPH-ER-005
Condition: New

Description

These electric retracts work for jets in the 64-90mm jet size range along with airplanes.  Wire struts do not come with the retracts due to being used with oleo struts.  It does come with a 15mm long 5mm diameter pin that will fit into a strut.

Oleo Struts are not included!!  JP Hobby ER-005 Oleo Struts will work with these retracts.  Retracts come with V2 also known as B version control box.

JP Hobby Retract Controller ER-120 V1 Manual

Specifications

  • Material: Aluminum
  • Struts diameter: 10mm
  • Pin Diameter Size: 5mm
  • For plane: up to 6 kg/ 13 lb (possible 7-8kg)
  • 90 Degree rotation angle

Technical Specifications

  • Retracts weight: 2 x 62.8g + 1 x 66g
  • Control module version B box weight: 19g
  • Retract sizes: Depth 26mm x Length 73mm x  Width 18mm
  • Retract mounting plate sizes: 33mm x 37mm
  • Total Depth: 26 mm (From top of retract to bottom, including the mounting tabs)
  • Control box version B sizes: 53mm x 32mm x 10mm
  • Length with motor: 74mm
  • Working Voltage:  5 – 6V
  • Speed: 5.2 sec (5v) – 4.3 sec (6v)

Please pay attention that only JP Hobby sequencers are qualified to work in accordance with the JP Hobby products.

Insurance Note:  Fan Jets USA recommends the purchase of shipping insurance. If insurance is not purchased and the package is lost or damaged, the most that can be claimed with the USPS and awarded to the purchaser (shipment recipient) is $50.00.  Fan Jets USA is not responsible for reimbursing the purchaser the difference of an order of any amount.  Shipping charges are not included in an insurance claim per USPS guidelines.

CA Residents: WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Additional information

Weight .4 lbs
Dimensions 9 × 6 × 2 in
