JP Hobby ER-120 Retracts (Juniaer T27 Tucano turboprop 20cc) Special Order

Sale!

Original price was: $339.99.Current price is: $309.99.

Available on backorder

Item #: JPH-EROLEB-120-JUN-T27-20cc
Manufacturer: JP Hobby
Manufacturer’s Product Number: JPH-EROLEB-120-JUN-T27-20cc
Condition: New

Description

Stock Notice:  This is not a normal stock item and is considered a special order with Fan Jets USA. If one is wanted it needs to be purchased as a backorder and follows Fan Jets USA’s special order policy.  It will then be placed with our next JP Hobby order.  Feel free to contact us in regards to lead time.

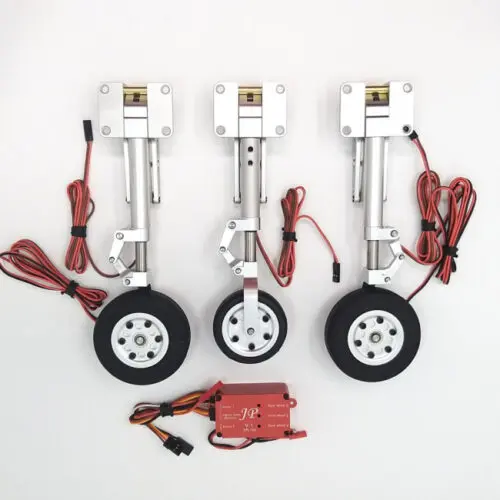

JP Hobby ER-120 tricycle full set with Brakes and Controller for Juniaer T27 Tucano turboprop 20cc model

CNC Machined aluminum articulated and mechanical suspended scale electric landing gear. Complete gear set including 1x50mm front wheel and 2x65mm main wheels with brakes system and 3 retracts with a JP Hobby V1 version controller retract box which includes an electrical magnetic brake controller. Main gear and single nose gear. For planes up to 12kg.

Specifications

  • Materials: Aluminium
  • Suspension: mechanical
  • Wheels: ball bearings mounted
  • For planes up to 12kg
  • Linkage for Outward/Return cable control (steel cable not included)

Technical Specifications

  • Struts diameter: 13mm
  • Mounting Struts diameter: 12mm
  • Main gear wheels diameter: 65mm
  • Nose gear wheel diameter: 50mm
  • Wheels axle diameter: 5mm (Main) – 4mm (Front)
  • Weight: 745g (for the complete set including the 3 struts, 3 retracts, wheels, and the controller)

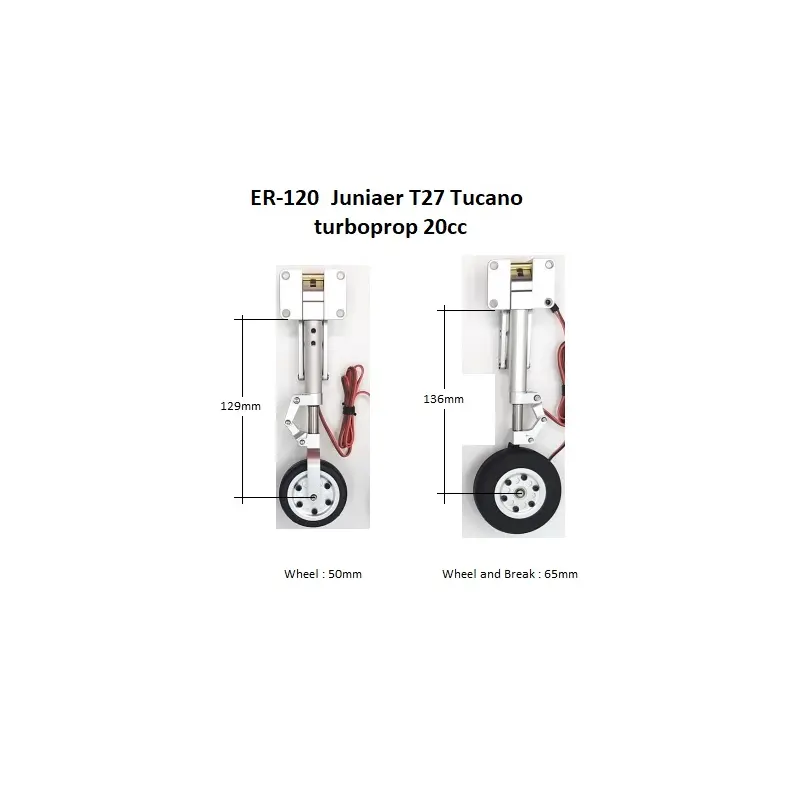

  • Dimensions: for detailed dimensions, please refer to the pictures
  • Retracts working voltage: 5-8.4V (2S LiPo)
  • Brakes working voltage: 7.2-30V

Content

  • 2x Scale metal struts for main landing gear equipped with 65mm wheels & brake system
  • 1x Scale metal strut for nose gear equipped with 50mm wheel and linkage
  • 3x Electric Retracts JP Hobby ER-120 12mm (12kg/Low/Inside)
  • 1x JP Hobby ER-120 V1 version All Integrated controller retract box (doors opened when the gear is down)

Data sheet

Serial JP Hobby ER-120 (12kg)
Mounting diameter (mm): 12
Strut(s) Diameter(s) (mm): 13
Wheel(s) axle(s) diameter(s) (mm) 5mm (main) – 4mm (front)
Weight (gr): 745gr
Max weight Up to 12kg
Torque 12kg/cm
Rotation direction 90 Degree
Working voltage (Volts): 5 to 8.4v (2s LiPo recommended)
Connection: JP Hobby JST type plug (+/-) for JP Hobby retracts
Material Aluminium, Rubber
Mounting Low
