JP Hobby ER-150 90° F4U Alloy 90° Rotative Electric Set

Description

This is not a normal stock item.  If a set is wanted it will need to be purchased on a backorder and it will then be placed with our next JP Hobby order which happens at least once a month.  Please, contact us for a more accurate estimated time of delivery.

The electric retracts work for airplanes weighing up to 20kg/ 44 lbs.

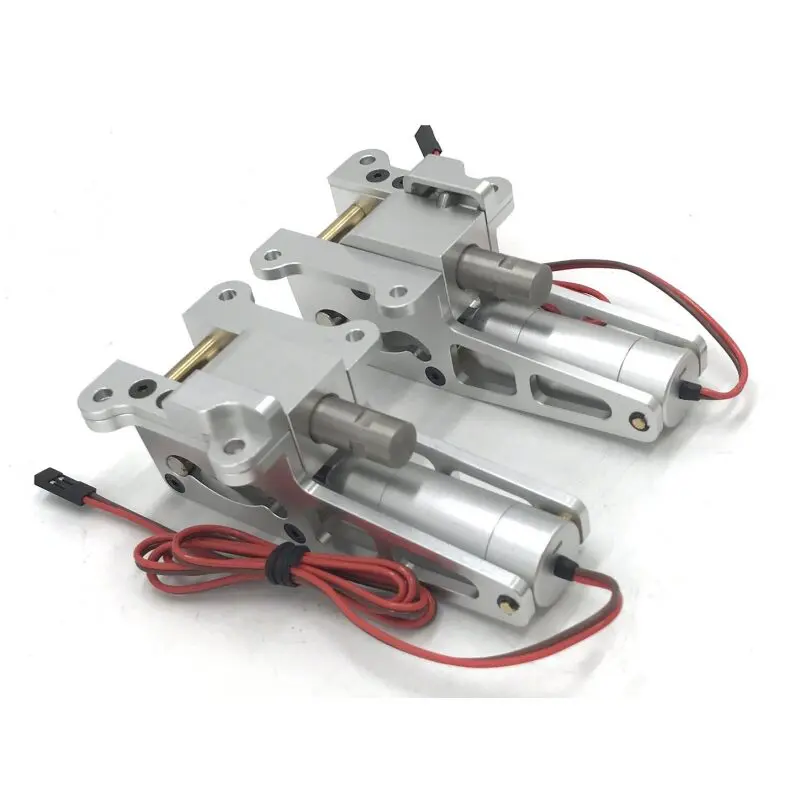

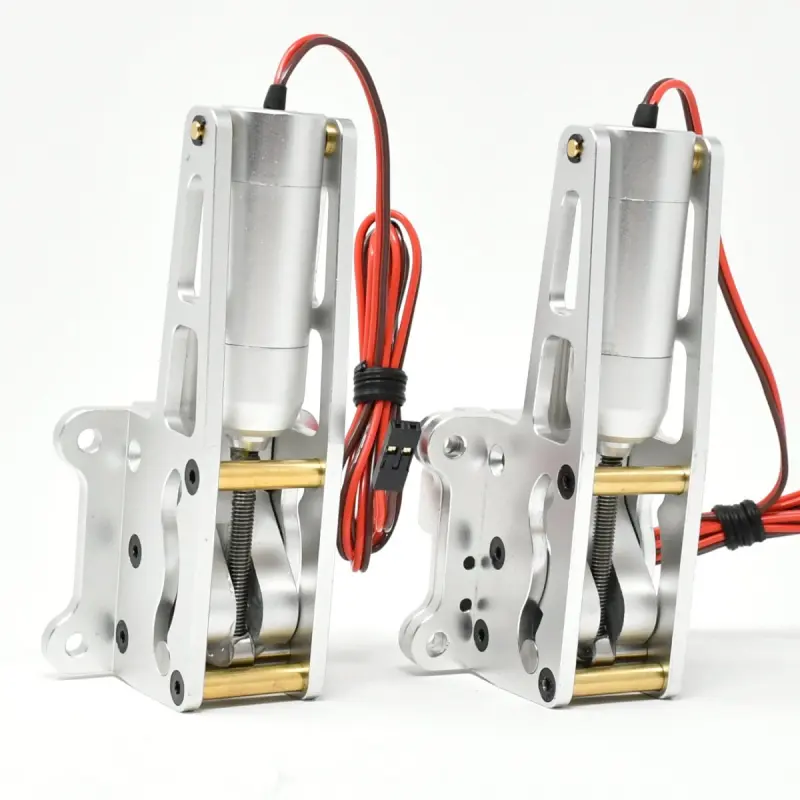

These are a set of 90-degree rotating retracts for aircraft like the P40 or F4U Corsair.  A control box is not included.

Oleo Struts are not included!!

• Material: Aluminum
• For plane: up to 20 kg/ 44lbs

Technical Specifications

• Struts diameter: nc
• Angle: 90° + 90° rotating 10mm pin

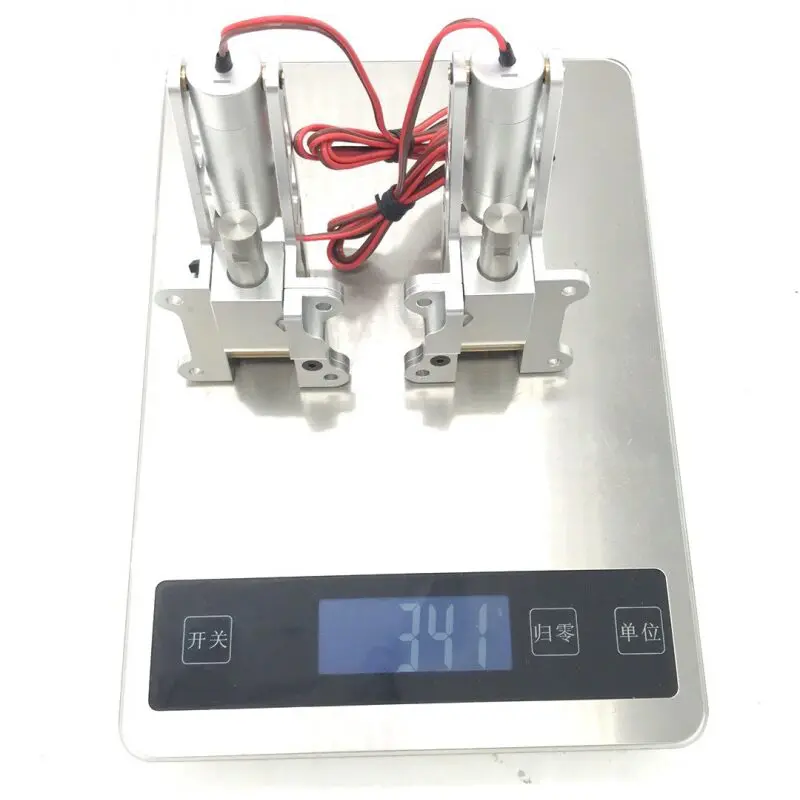

• Retract weight: 341g

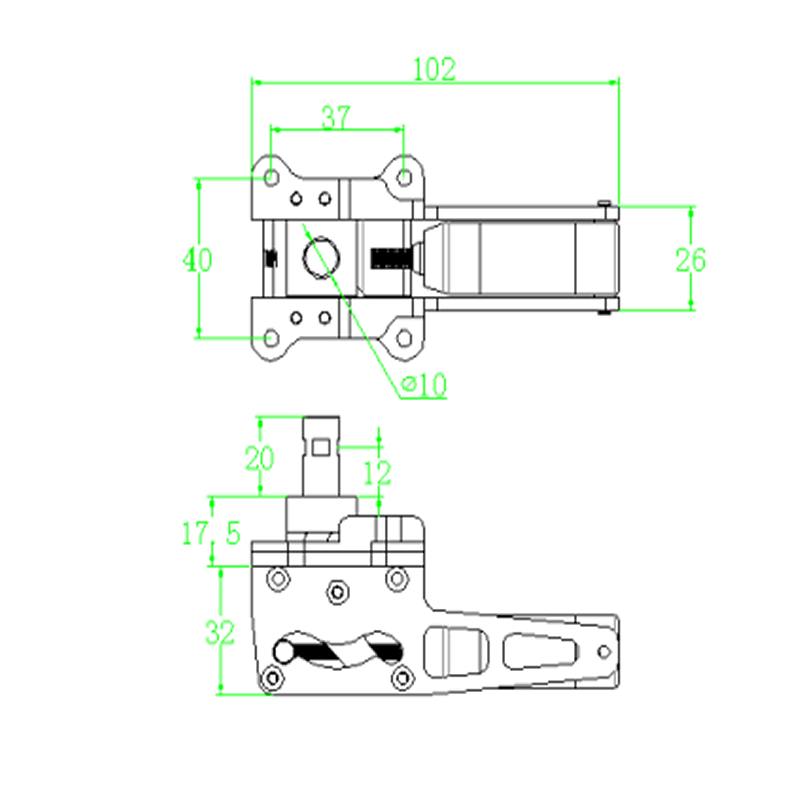

• Retract sizes: 26mm x 102mm x 32mm
• Retract mounting plate sizes: 40mm x 37mm
• Working Voltage: 5 – 8.4V
• Speed: 7 sec (6V) – 5 sec (8.4V)


  DATA SHEET:

  Serial	JP Hobby ER-150 (20kg)
  Mounting diameter (mm):	10
  Strut(s) Diameter(s) (mm):	15
  Weight (gr):	341 gr
  Max weight	Up to 20kg
  Torque	12kg/cm
  Rotation angle	90°
  Rotation direction	Inside (jack side)
  Working voltage (Volts):	5 to 8.4v (2s LiPo recommended)
  Connection:	JP Hobby JST type plug (+/-) for JP Hobby retracts
  Material	Aluminium
  Mounting	Low

• Electric Retract ER-150 F4U 10mm
  > Model Weight: until 20kg
  > Struts diameter: Pin diameter 10mm
  > Angle: 90° + 90° rotating 10mm pin
  > Rotation direction: Inside (jack side)
  > Mounting: Low
