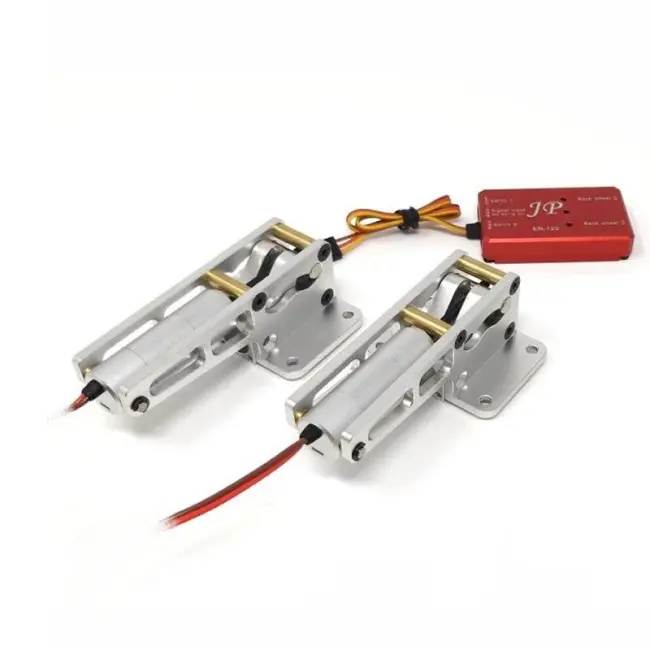

JP Hobby ER120 Retracts 2 Gear 10-12mm

Description

The electric retracts work for airplanes weighing up to 12kg/ 26 lbs. These 2 electric retracts work for planes up to 12kg (10kg for ER-010 oleo struts) equipped with JP Hobby oleo struts ER-010-120 or equivalent 10-12mm. The set of retracts is delivered with a version A control box.

These are a set of inside retracts.  The mains rotate inside.  Inside rotation means that the drive motor is on the same side where the struts are located.

Oleo Struts are not included!!

• Material: Aluminum
• For plane: up to 12 kg/ 26lbs (10kg for ER-010 oleo struts)

JP Hobby Retract Controller ER-120 V1 Manual

Technical Specifications

• Rotation: 90 Degrees
• Struts diameter: 12mm ( comes with an adapter for 10mm struts)
• Retracts weight: 252g/ 8.9oz
• Control module box weight: 19g
• Retract sizes: Depth 27mm x Length 80mm x Width 22mm
• Retract mounting plate sizes: 35mm x 48mm
• Control box sizes: 53mm x 32mm x 10mm
• Working Voltage:  5 – 8.4V
• Speed: 5.2 sec (5v) – 4.3 sec (6v)
