RBC Kits Mig 29

Sale!

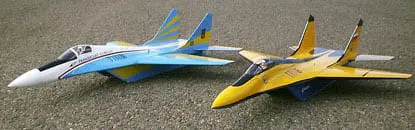

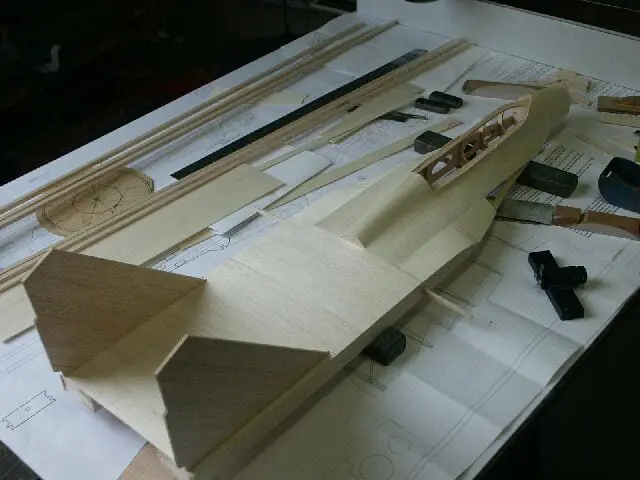

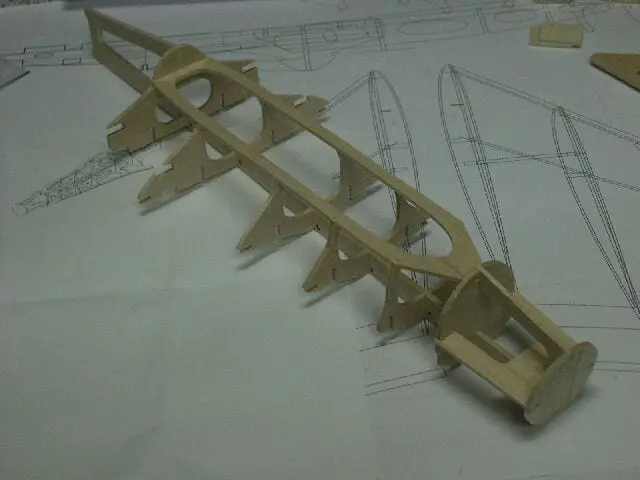

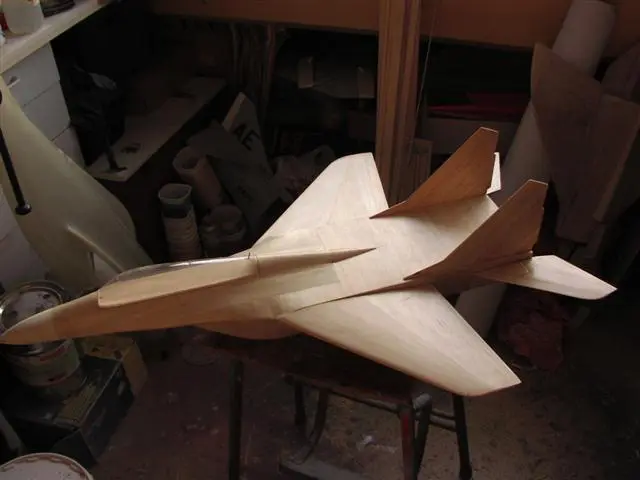

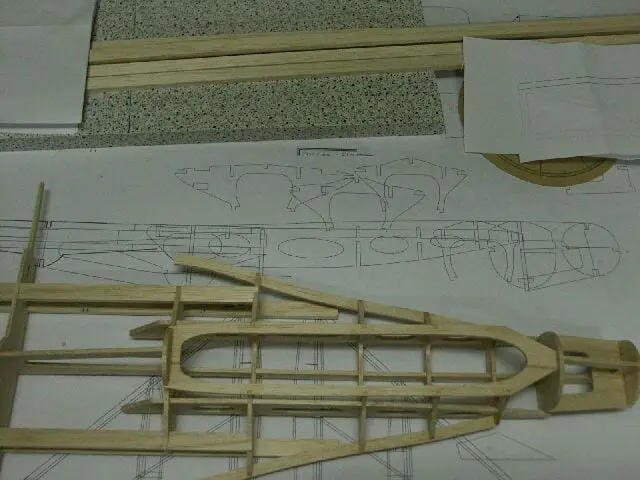

RBC Kits Mig 29
RBC Kits Mig 29 - Image 2
RBC Kits Mig 29 - Image 3
RBC Kits Mig 29 - Image 4
RBC Kits Mig 29 - Image 5
RBC Kits Mig 29 - Image 6

Original price was: $179.99.Current price is: $169.99.

In stock

Item #: RBC-1150
Manufacturer: RBC Kits
Manufacturer’s Product Number: RBC-1150
Condition: New

Description

MIG-29 is a perfect training model. The impeller is exposed, so that no channels have to be built. If you need high-speed model that is quick to assemble and easy to handle, yet visually appealing is that is this kit is perfect for you. The kit contains all wood parts CNC machined in selected material, deep drawn parts, a detailed plan, small parts. The structure is quite simple.  The Mig 29 works extremely well with the Jetapult launching system from Fan Jets USA.

Decals not included in kit.

Click: RBC Kits Mig 29 Instruction Manual

Specifications:
Wingspan: 650mm/ 25.5 Inches
Length: 960 mm/ 38 Inches
Flying Weight: 900-1300 g./ 2-2.9 lb.
Wing Area: 13 dm2
Wing Loading: 64gr dm2 to 75gr dm2
4 Channel Elevator, Ailerons & Throttle (ailevons needs delta mixer)

This kit will work very well with the Jetapult launching system with Fan Jets USA.

BUILDERS NOTE: REFER TO THE “ELECTRIC SETUP GUIDELINE” ON THE HOME PAGE TO HELP DETERMINE THE PROPER SET UP FOR FAN, ESC, MOTOR AND BATTERY.

Design Features:

  • All formers and ribs CNC cut
  • Unique tab lock design
  • One piece design for easy transportation
  • Motor/Fan accessible through hatch
  • Easy battery access through canopy
Kit Includes:
Photo Instructions
Full Size Rolled Cad Plans With All Parts Shown
Vacuformed Canopy, Nose Cone
PVC Outlet Tube (Thrust tube)

Items needed for completion:

  • Ducted Fan: 70mm class fan unit- HET 6904, Wemotec Minifan, Schubeler DS-30 and others
  • Brush less Motor: 70mm Class (HET 2W, HET 2W20 recommended by RBC)
  • Electronic Speed Control: Brush less
  • Servos (Micro): 2 for regular operation: Ailevons (Requires a transmitter with mixing)
  • Li-Po Battery: 3-4s lipo 3200-3800mAh, 35C or higher
  • 1 ft Red and Black Silicone Wire
  • Battery and Gilt Connectors
  • CA and Epoxy glues
  • Hardware: Hinges, control horns etc..
  • 2x 18 in/ 457 mm Servo Extensions- Tailerons

Insurance Note:  Fan Jets USA recommends the purchase of shipping insurance. If insurance is not purchased and the package is lost or damaged, the most that can be claimed with the USPS and awarded to the purchaser (shipment recipient) is $50.00.  Fan Jets USA is not responsible for reimbursing the purchaser the difference of an order of any amount.  Shipping charges are not included in an insurance claim per USPS guidelines.

CA Residents: WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Additional information

Weight 5.4 lbs
Dimensions 41 × 8.5 × 5 in
