E-Jets Jetfan 90mm V3 EDF Unit
Item #: JETFAN-90EDF
Manufacturer’s Product Number: JETFAN-90EDF
Out of stock
The new E-Jets JETFAN-90 V3 edf unit was developed from the proven JF-80. Thanks to the increased ring area (FSA) of 51.05 qcm and new lower resistance stator blades, the efficiency and engine cooling could be improved again! This results in an increase in thrust of up to 5% with the same input power! The design continues in the direction of high jet speed and dynamic thrust. Special care was taken to ensure that you can continue to use your tried and tested high-speed 36mm-40mm motors.
Matching complete heat sinks are available for 36mm motors like the HET-650 series, and for the 39mm motors like the HET-700 series there are enclosed tubes from 39.00 to 40.00mm, so that the various motors are always fully supported by the stator blades ,
The JETFAN90, a 9 blade modular rotor with all carbon housing, expertly hand made in Austria and very affordable! This Fan was specially developed for a new “Jetsound” . The sound is very unique and the sound intensity has been minimized in order to get a smooth Whooshing sound similar to a turbine. The high pitch frequencies have been minimized in the design.
The new fan has been developed to have a maximum efflux speed and static thrust. This makes a powerful and wide flying style possible with your model.
Compared to other fan systems which are mainly made for static thrust we have the advantage of high speeds. The fan blade design has been developed so that you can use common Kv motors and ESC with just a little more amp draw than a regular 90mm fan. The fan does not require highly specific low Kv motors in order to work. A very affordable multi blade fan unit that gives you a jet like sound at an unbeatable price!

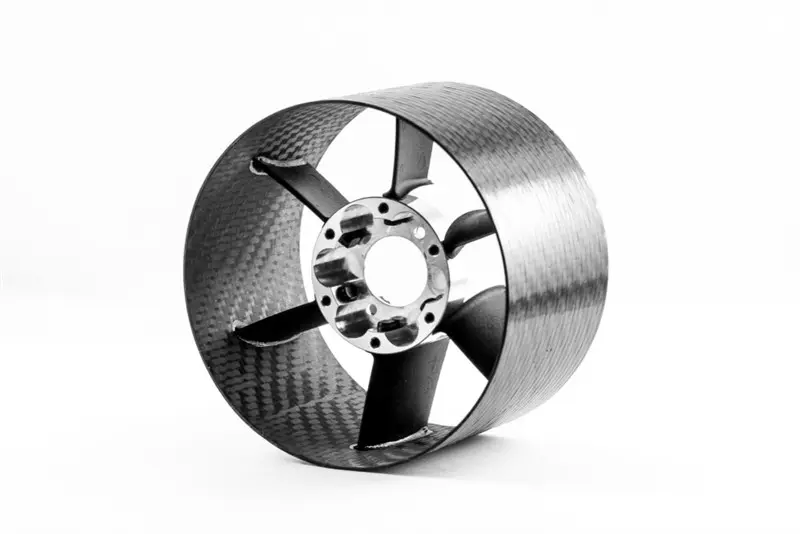

- Carbon Fiber Housing, Carbon Fiber filled rotor, Aluminum Hub
- Outer Housing Diameter: 92mm
- Inner Housing Diameter: 90mm
- Housing Length: 57mm
- Weight: 122 grams – 4.3 Ounces
- Input Power: 5,500 Watts
- Static Thrust: 2.2kg/ 4.8lbs to 6.2kg/ 13.6 lbs
- Rotor: 9 bladed dynamically balanced
- 5 mm chuck adapter
- Comes complete with mounting tabs and instructions
- Takes a motor with a diameter of 36-40mm.

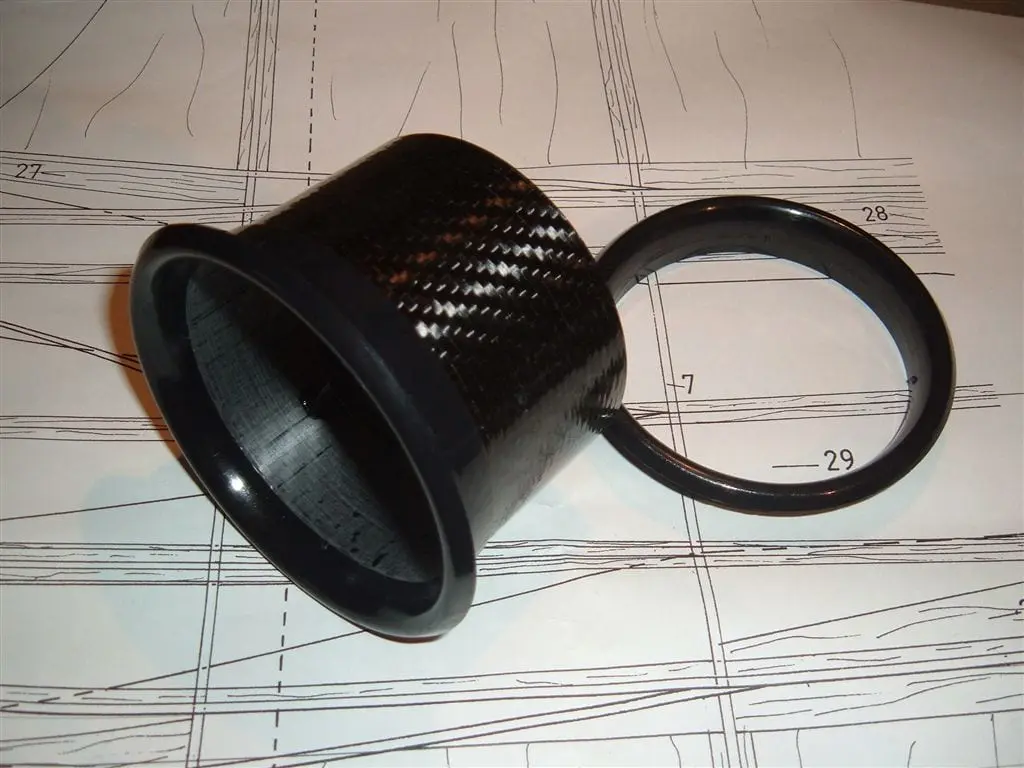

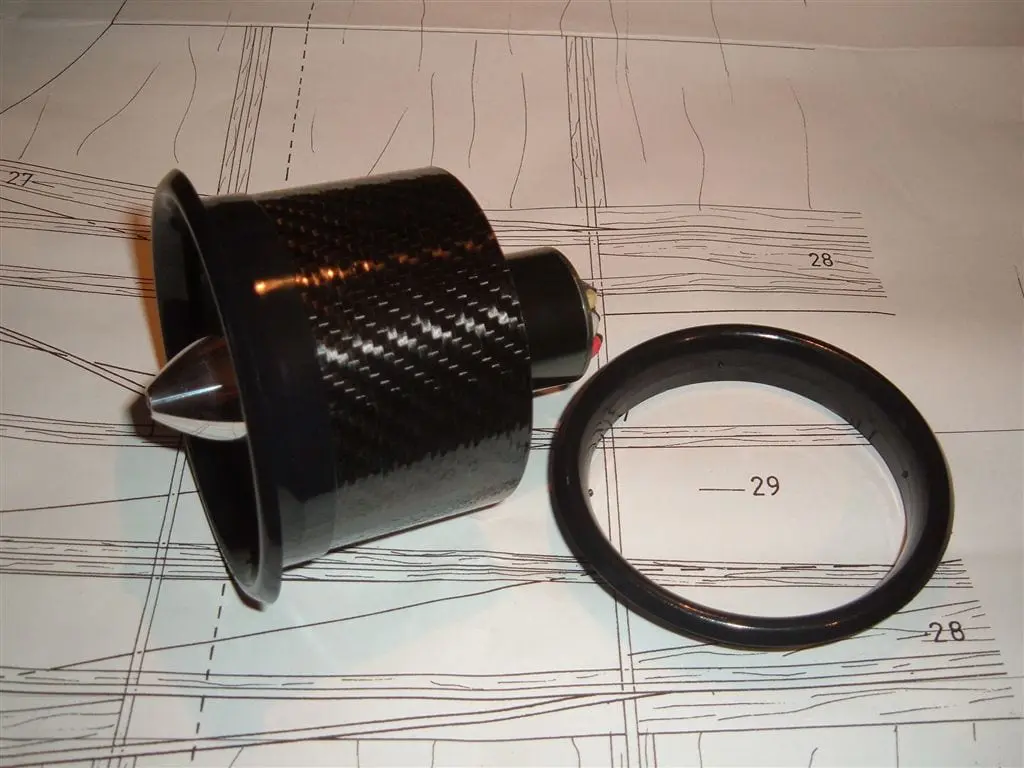

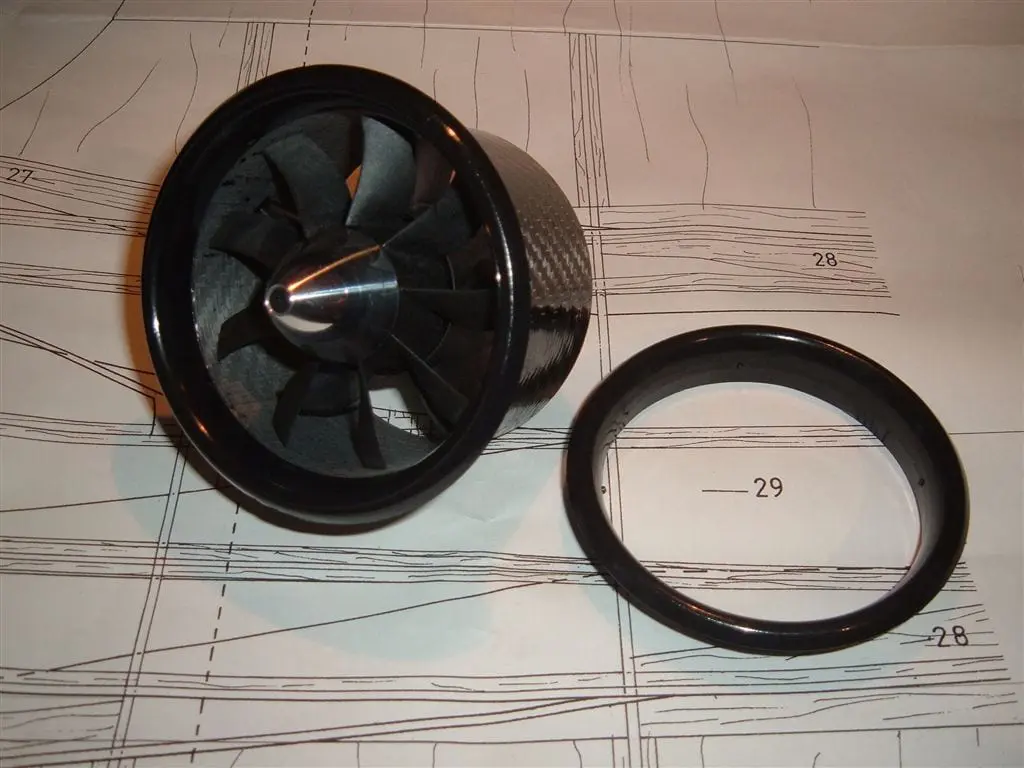

PICTURE NOTE: THE INTAKE RING IN THE PICTURE DOES NOT COME WITH THE 90MM FAN UNIT.
The following video is of a 80mm unit in a Habu but produces the same sound as a reference.
Insurance Note: Fan Jets USA recommends the purchase of shipping insurance. If insurance is not purchased and the package is lost or damaged, the most that can be claimed with the USPS and awarded to the purchaser (shipment recipient) is $50.00. Fan Jets USA is not responsible for reimbursing the purchaser the difference of an order of any amount. Shipping charges are not included in an insurance claim per USPS guidelines.
CA Residents: WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
|Dimensions||4 × 4 × 3 in|
