Fan Jets USA Thrust Tube 100-120mm EDF’s

$6.99 $5.99

Item #: FJU-TUBE100-120
Manufacturer: Fan Jets USA
Condition: New

SKU: FJU-TUBE100-120 Categories: , Tag:

Description

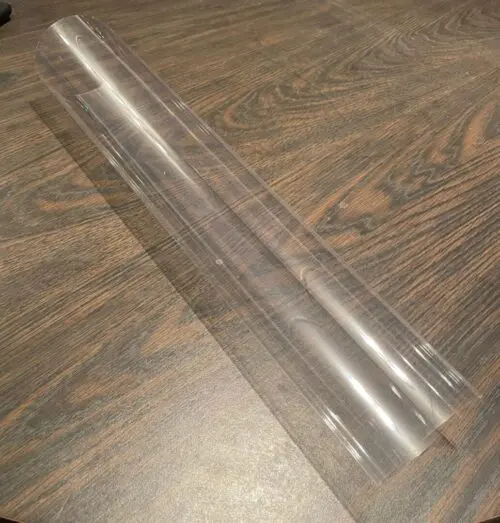

Produce more thrust in your edf jet with the thrust tube from Fan Jets USA.  To get more performance out of an edf unit there should be a thrust tube to help streamline and compress the airflow.  Fan Jets USA offers this clear sheet to be used as a thrust tube on all edf jets from the 100 to 120mm edf size. The tube should have a 1/2 inch overlap on the edges. Clear packing tape can be used to tape the overlap and seal it from the airflow.

Set up:

Low rotor blade count edf (5-7 blade): The exhaust opening needs to be 75-80% of the diameter of the edf unit.

High rotor blade count edf (10-12 blade): The exhaust opening needs to be 85-90% of the diameter of the edf unit.

  • Any more or less than this will result in loss of the thrust output.

FEATURES:

  • Thick duralar material
  • Size: 20 Inches long, 17 Inches wide
  • Thickness: 0.005″
  • Easy to cut, tape and attach to fan units inside thrust tubes
  • If a thrust tube needs to be longer than 20 inches, then a second tube needs to be purchased and then put end over end in the fuse of the jet.

Insurance Note:  Fan Jets USA recommends the purchase of shipping insurance. If insurance is not purchased and the package is lost or damaged, the most that can be claimed with the USPS and awarded to the purchaser (shipment recipient) is $50.00.  Fan Jets USA is not responsible for reimbursing the purchaser the difference of an order of any amount.  Shipping charges are not included in an insurance claim per USPS guidelines.

Additional information

Weight .1 lbs
Dimensions 17 × 1.5 × 1.5 in
