JP Hobby Avanti 1.9 Oleo Struts-Single

Sale!

Original price was: $139.99.Current price is: $119.99.

In stock

Item #: JPH-OL-120-S
Manufacturer: JP Hobby
Manufacturer’s Product Number: JPH-OL-120-S
Condition: New

Description

These oleo struts are made for 120mm jets in the 5-10kg/ 11-22lbs.  They add functionality and scale realism to your edf jet.  These struts can be used with retracts or with fixed landing gear.  The struts help smooth out rough landings and gives better ground handling even on grass fields. Comes with steering linkage for steering servo to nose gear.

CNC Machined Aluminum articulated and hydraulic suspended landing gear. Main gear and single nose gear. For planes up to 10kg.

Designed for the Sebart Avanti 1.9 Arf and works with the JP Hobby ER-120 Retracts.

Specifications:

  • Main struts x 2
  • Nose strut x 1
  • Weight: 230g/ 8oz.
  • Strut Diameter: 12mm
  • For planes up to 10kg/ 22 lbs.
  • Main Gear Length: 155mm/ 6″ (From axle to top of strut where it meets the retract)
  • Nose Gear Length: 165mm/ 6.5″ (From axle to top of strut where it meets the retract)
  • Steering Servo Mounting Dimensions: Length: 36mm/ 1.3″, Width: 16mm/ 0.59″
  • Axle size: 5mm with adjustable axle length to accommodate different tire size widths.  Can take electric brakes with a 5mm axle size.
  • Axle Length: 15mm
  • Materials: Aluminum
  • Suspension: hydraulic

Nose gear takes up to 60mm/ 2.36″ size tires that are not included. Two wheels needed.

Main gear takes up to 70mm/ 2.75″ size tires that are not included.

Content

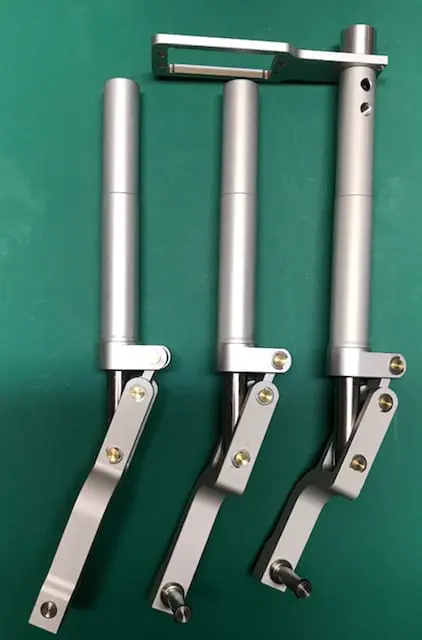

  • 2x Scale metal struts for main landing gear
  • 1x Scale metal strut nose gear
Note: The oleo struts are delivered without the wheels. JP Hobby, retracts, wheels and brake systems are recommended for th
