JP Hobby Adjustable E-Brake Controller

Description

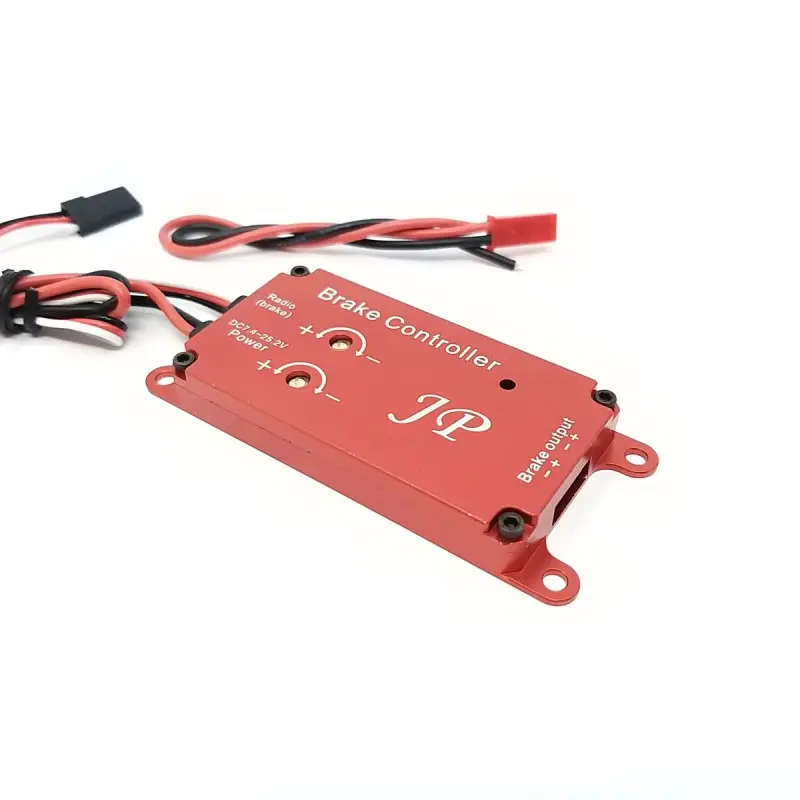

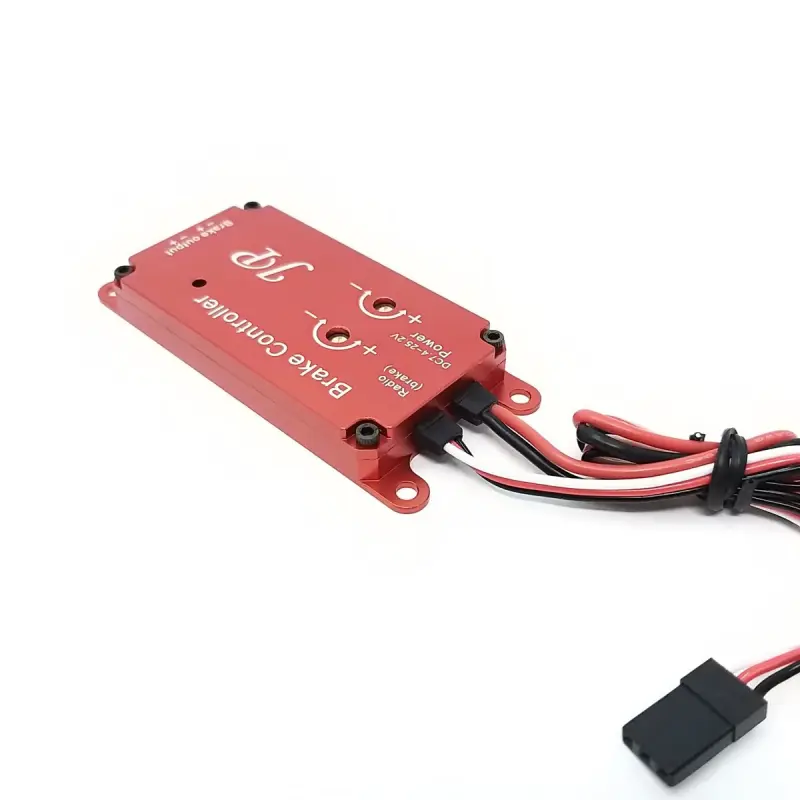

Adjustable control Box for JP Hobby electric brakes.  This control box features an aluminum case for protection with mounting tabs for easy installation.  It also allows the braking tension to be independently adjusted for each wheel with the simple turn of a screwdriver.

JP E-Brake Using illustration

• Voltage input: 2S Can tap directly on aircraft batteries or use an external battery.
• Voltage output: 6-10V
• Signal input: Connect the module on your receiver on a 2 or 3-position switch channel or for variable braking force, to a slider or rotary (variable) knob on your TX. Some will set up brakes as a mix, with the “down elevator” to save a channel.
• The braking force is controlled independently Left / Right by the servo travel/endpoints you set in your TX.

Specifications

•  Input：7.4v (2S lipo)
•  Output Voltage: 6~10V
•  Size: 70 x 34 x 17mm
• Weight: 61.2g

JP Hobby Adjustable Brake Manual
