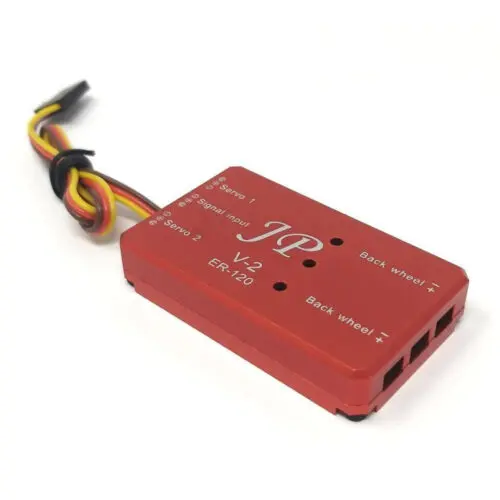

JP Hobby ER-005/120 Retract Controller 2 Gear Ver. B
Original price was: $44.99.$29.99Current price is: $29.99.
Item #: JPH-ERC-120-V2(2C)
Manufacturer: JP Hobby
Manufacturer’s Product Number: JPH-ERC-120-V2(2C)
Condition: New
Description
This electronic switch is used to control the sequence of 2 electric retracts from your transmitter gear channel switch. It is a replacement control box for the JP Hobby electric retracts. It will work with both sizes of the JP Hobby retracts and other retracts brands.

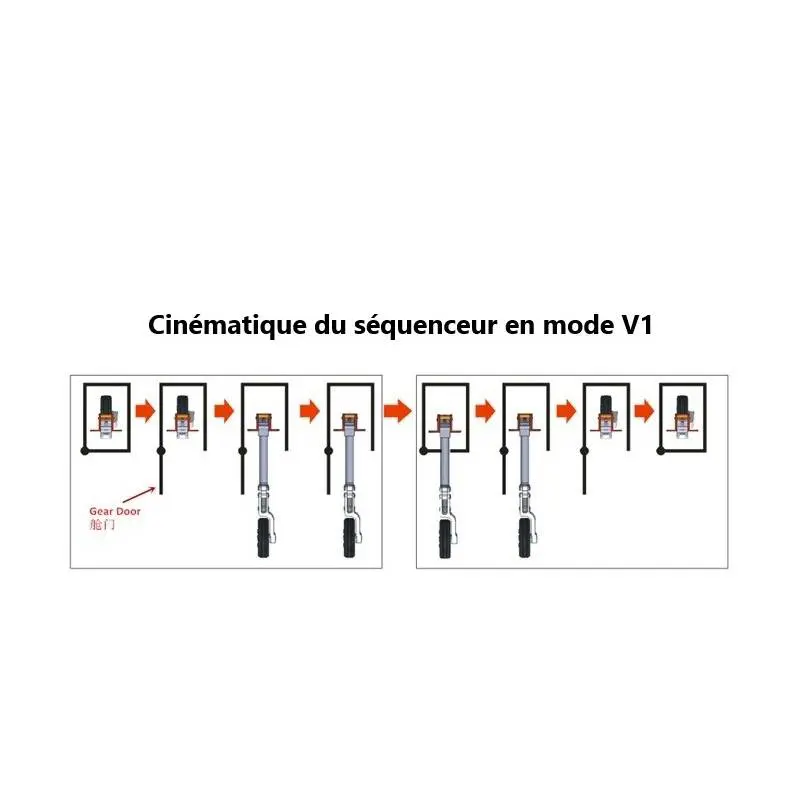

Note: Version B closes the doors when the gear is down while Version A keeps the doors open.
JP Hobby Retract Box ER-120 V2 Manual
Connections
Connect the electric retract mechanism for the main gear to the “back wheel” plug.
Connect the doors servos to the “Servo 1” and “Servo 2” plugs
Connect the “signal input / DC 6V” wire and plug into your receiver “gear” channel
Specifications
- Input voltage: 5V to 6V
- Size: 52 x 32 x 10 mm
- Weight: 22 gr
- Works with ER-005 and ER-120 Retracts
Insurance Note: Fan Jets USA recommends the purchase of shipping insurance. If insurance is not purchased and the package is lost or damaged, the most that can be claimed with the USPS and awarded to the purchaser (shipment recipient) is $50.00. Fan Jets USA is not responsible for reimbursing the purchaser the difference of an order of any amount. Shipping charges are not included in an insurance claim per USPS guidelines.
CA Residents: WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Additional information
Weight | .1 lbs |
---|---|
Dimensions | 2 × 2 × .5 in |
