JP Hobby ER120 Retracts 10-12mm-Outside

Description

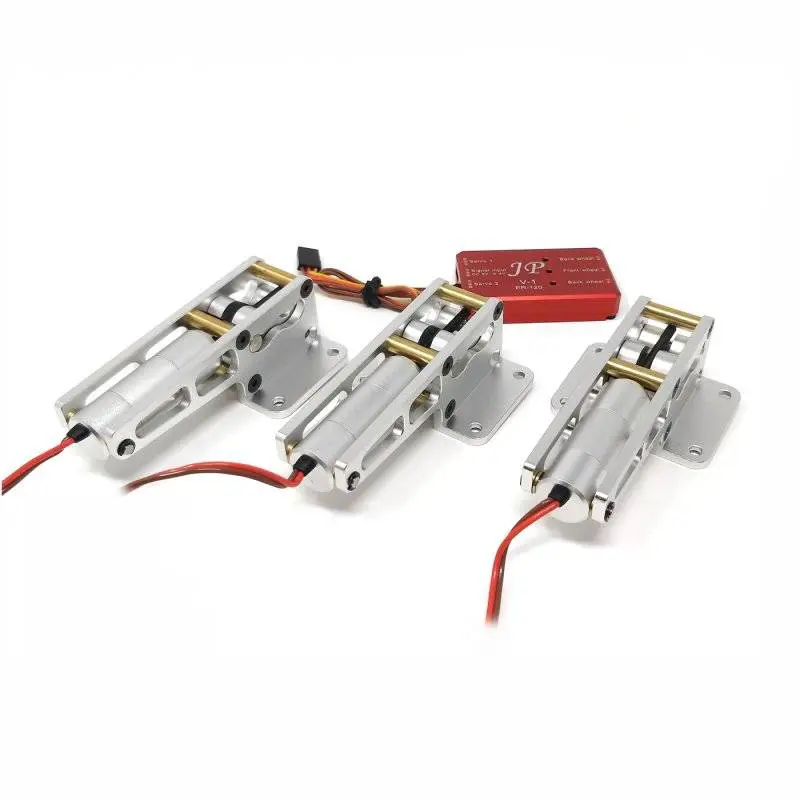

The electric retracts work for airplanes weighing up to 12kg/ 26 lbs. These 3 electric retracts work for planes up to 12kg (10kg for ER-010 oleo struts) equipped with JP Hobby oleo struts ER-010-120 or equivalent 10-12mm. The set of retracts is delivered with a version A control box.

These are a set of outside retracts.  The nose gear and mains rotate outside.  Outside rotation means that the drive motor is on the opposite side of where the struts move.

Oleo Struts are not included!!

• Material: Aluminum
• For plane: up to 12 kg/ 26lbs (10kg for ER-010 oleo struts)

JP Hobby Retract Controller ER-120 V1 Manual

Technical Specifications

• Rotation: 90 Degrees
• Struts diameter: 12mm ( comes with an adapter for 10mm struts)
• Retracts weight: 252g/ 8.9oz
• Control module box weight: 19g
• Retract sizes: Depth 27mm x Length 80mm x Width 22mm
• Retract mounting plate sizes: 35mm x 48mm
• Control box sizes: 53mm x 32mm x 10mm
• Working Voltage:  5 – 8.4V
• Speed: 5.2 sec (5v) – 4.3 sec (6v)
