JP Hobby LED Servo/Retract Tester

Description

JP Hobby Servo and Retracts Tester

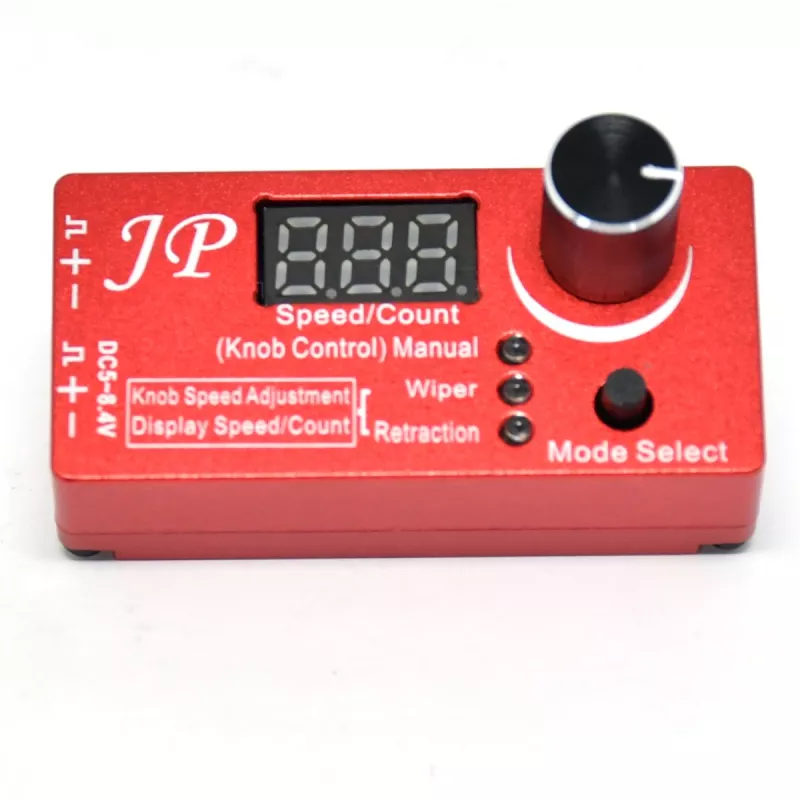

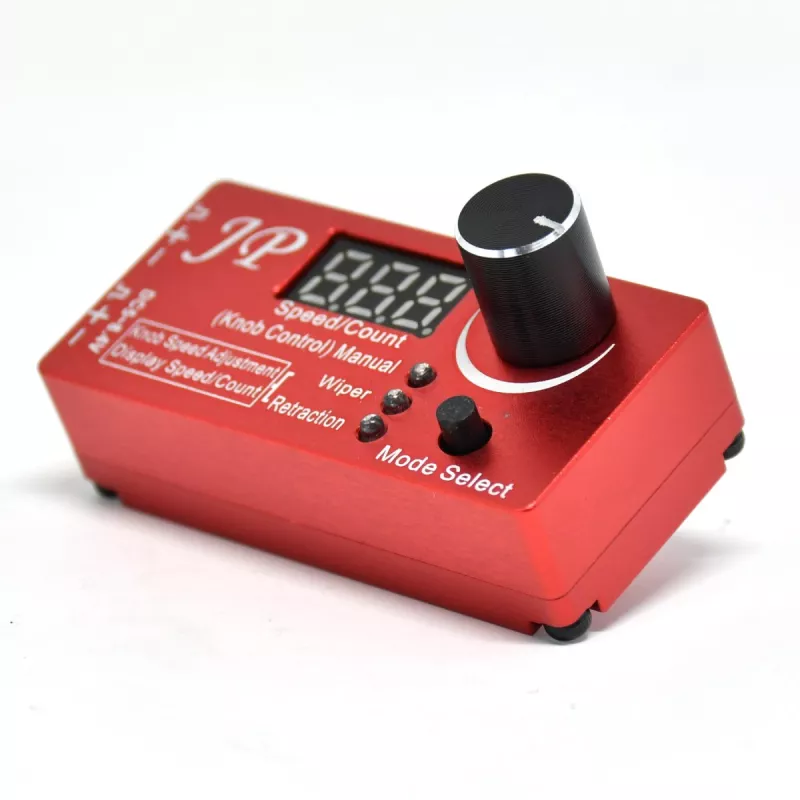

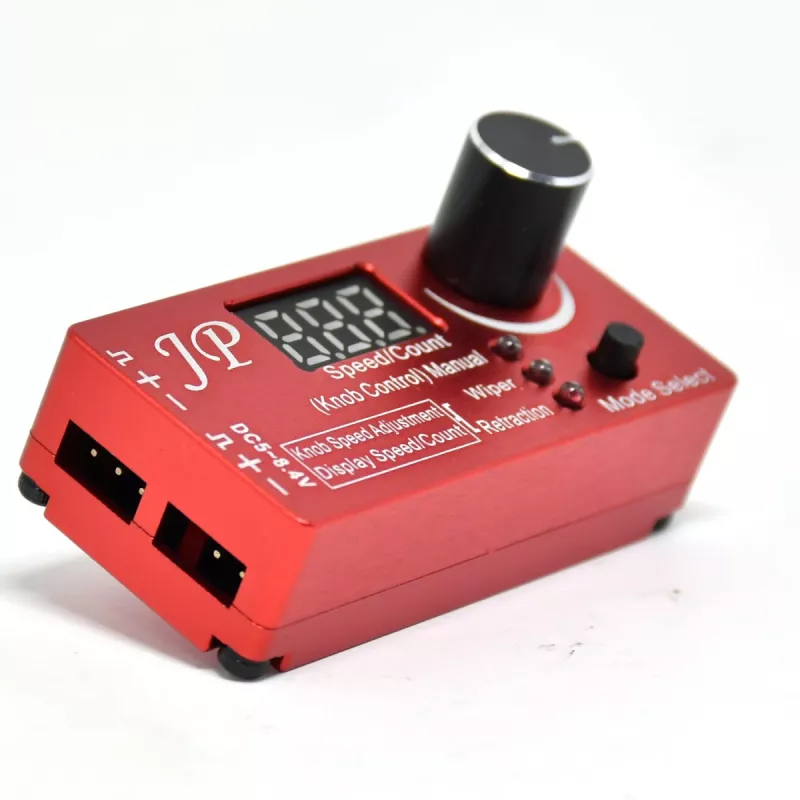

The JP All-Metal Digital Servo Tester is a professional-grade tool designed for testing and calibrating servo motors, electronic speed controllers (ESCs), retractable landing gear, and other RC applications. It is built for durability and precision, making it ideal for both hobbyists and professional technicians. With an intuitive three-level indicator design and a robust metal housing, this tester ensures efficient and reliable performance in various scenarios, including routine maintenance, troubleshooting, and product lifespan evaluation.

Caution! Never connects retract directly to the servo tester. The retracts must always be connected to their own controller, and only the controller should be connected to the servo tester.

Key Features

• Wide Voltage Compatibility: Supports an input voltage range of DC 5V–16.8V, making it suitable for a variety of RC models, including airplanes, cars, boats, and robotics.
• Digital Display & LED Indicators: Clear digital readout and intuitive LEDs provide real-time feedback for easy operation, even for beginners.
• PWM Signal Adjustability: Achieve precise control with a 0.9ms~2.1ms PWM signal range, ensuring responsive throttle adjustments.
• Three Operating Modes: Manual mode, Wiper (sweep) mode, and Retract mode offer flexible testing options for different applications.
• Durable Metal Construction: Ensures longevity and reliability in demanding environments.
• Portable and Lightweight: Compact size (51×25×25 mm) and lightweight (20 g) make it easy to carry for field use.

Specifications

• Input Voltage: DC 5–16.8V
• Output Voltage: Same as input voltage
• PWM Signal Range: 0.9ms–2.1ms ±0.01ms
• Dimensions: 51 × 25 × 25 mm
• Weight: 20 g
• Pulse Width Adjustment: Manual Knob / Wiper Test (with speed and count) / Retract Test (with speed and count)

Operating Modes

Manual Mode

• Adjust PWM pulse width (0.9ms–2.1ms) via rotary knob. The neutral position is 1.5ms.
• Real-time pulse width displayed on the screen

Wiper Mode

• Set sweep cycle time from 0.2 to 12 seconds.
• Six-digit cycle counter (e.g., 1234 cycles displayed as “234” and “001” on two pages).

Retract Mode

• Set the retract cycle time from 1 to 20 seconds.
• Six-digit cycle counter (e.g., 1234 cycles displayed as “234” and “001” on two pages).

Applications

• RC aircraft, cars, boats, and drones
• Retractable landing gear systems
• Robotics and DIY projects
• Maintenance and repair workshops

Safety & Notes

• Use only within the specified voltage range.
• Avoid short-circuiting the output.
• Store in a dry and cool environment.
• JP Hobby is not liable for damage caused by improper use.

Package Contents

• 1 × JP Digital Servo Tester
