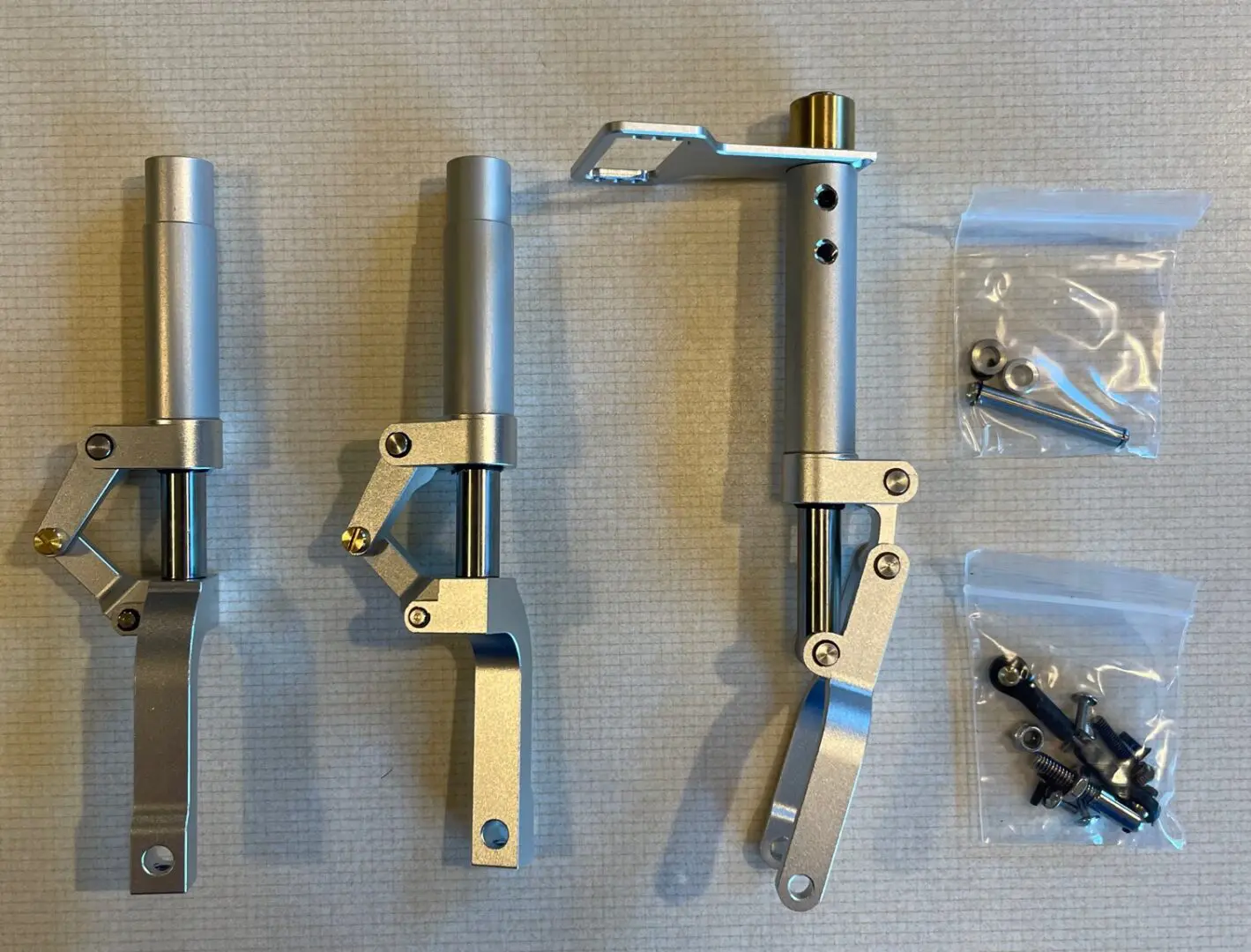

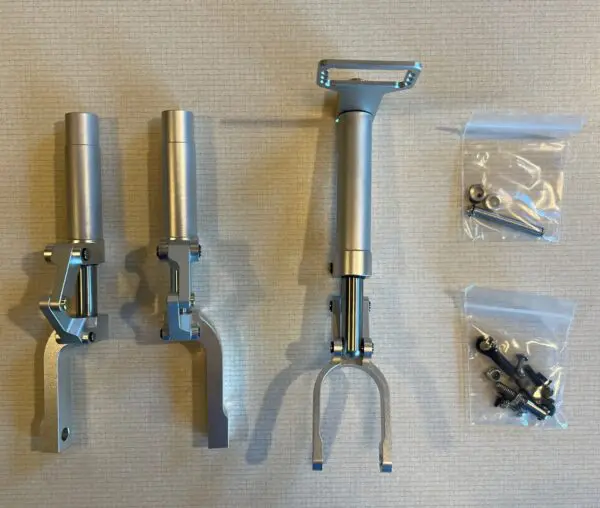

JP Hobby xXx Struts

Sale!

Original price was: $149.99.Current price is: $129.99.

Out of stock

Join Waitlist We will inform you by email when the product arrives and is in stock. Please leave your valid email address below.

Item #: JPH-OL-XXX
Manufacturer: JP Hobby
Manufacturer’s Product Number: JPH-OL-XXX
Condition: New

Description

These oleo struts are made for the Jet Teng Models (JTM) 120mm xXx Arf.  They can also be used with other 120mm jets in the 5-10kg/ 11-22lbs range.  They add functionality and scale realism to your edf jet.  These struts can be used with retracts or with the fixed landing gear.  The struts help smooth out rough landings and give better ground handling even on grass fields. Comes with a steering linkage for the steering servo to the nose gear.

CNC Machined Aluminum articulated and hydraulic suspended landing gear. Main gear and single nose gear. For planes up to 10kg.

Specifications:

  • Main struts x 2
  • Nose strut x 1
  • Weight: 170g/ 6oz
  • Strut Diameter: 12mm
  • For planes up to 10kg/ 22 lbs.
  • Main Gear Length:   113mm/4 1/2″ (From axle to the top of the strut where it meets the retract)
  • Nose Gear Length: 130mm/ 5 1/8″(From axle to the top of the strut where it meets the retract)
  • Steering Servo Mounting Dimensions: Length: 24mm, Width: 12mm
  • Main Wheel Axle size: 5mm with adjustable axle length to accommodate different tire size widths.  Can take electric brakes with a 5mm axle size.
  • Nose Gear Wheel Axle size: 4mm
  • Materials: Aluminum
  • Suspension: hydraulic

Nose gear takes up to 50mm/ 2″ size wheel that are not included.

Main gear takes up to 65mm/ 2.56″ size wheels that are not included.

Content

  • 2x Scale metal struts for main landing gear
  • 1x Scale metal strut nose gear
Note: The oleo struts are delivered without the wheels. JP Hobby, retracts, wheels and brake systems are recommended for th

Insurance Note:  Fan Jets USA recommends the purchase of shipping insurance. If insurance is not purchased and the package is lost or damaged, the most that can be claimed with the USPS and awarded to the purchaser (shipment recipient) is $50.00.  Fan Jets USA is not responsible for reimbursing the purchaser the difference of an order of any amount.  Shipping charges are not included in an insurance claim per USPS guidelines.

CA Residents: WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Additional information

Weight .4 lbs
Dimensions 6 × 4 × 1 in
