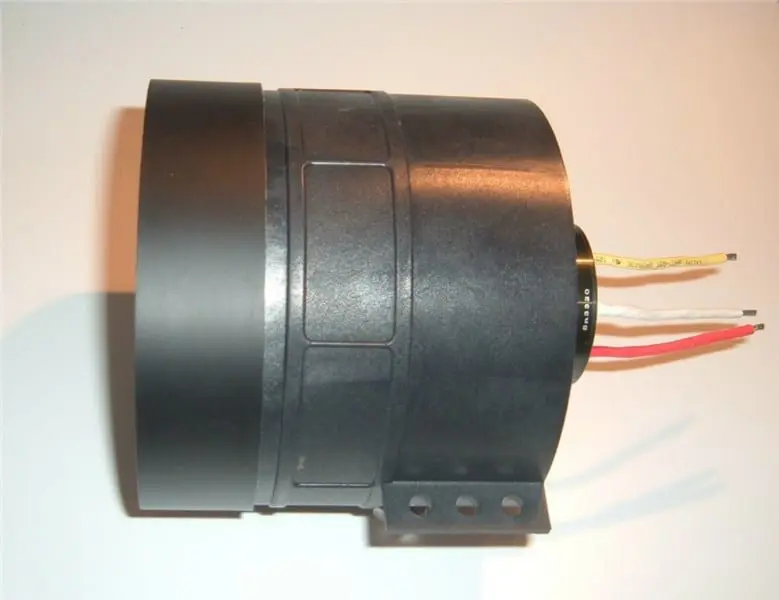

E-Jets Jetfan 120mm Eco EDF Unit

The brand new impeller E-Jets Jetfan-120 ECO was developed by E-Jets for the 120mm EDF class. The basic design is towards average beam speed at very good static thrust. Since the jet models in this class are always larger and thus heavier a powerful and fast start is very important. The mean jet velocity also allows large-scale and rapid skimming of airspace. The requirement of customers for a little more “punch and audible turbine noise” we achieve this by having more rotor blades and lowering of the speed of the rotor. Thus we again have a distinctive sound and were able to suppress the uncomfortable high frequencies.

Special attention should also be made in which in-runner motors size should be 50mm to 52mm outer diameter.

The weight of the Jetfan-120 ECO is around 333 grams, and is therefore in the new class of many-petaled “intoxication-impeller” making this one of the lightest!!!

With achievable spurts of about 10 kilos at even normal currents the Jetfan 120 ECO the only one in this class!

Compared to other fan systems which are mainly made for static thrust the 120 ECO has the advantage of high speeds. The fan blade design has been developed so that you can use common Kv motors and ESC with just a little more amp draw than a regular 90mm fan. The fan does not require highly specific low Kv motors in order to work. A very affordable multi-blade fan unit that gives you a jet-like sound at an unbeatable price!

Note: This fan unit does not come with an intake ring.
Recommended motor: HET 800 series motor.

BUILDERS NOTE: REFER TO THE “ELECTRIC SETUP GUIDE” ON THE HOME PAGE TO HELP DETERMINE THE PROPER SETUP FOR THE FAN, ESC, MOTOR AND BATTERY.

Specifications:

• Carbon Fiber Filled Housing, Carbon Fiber filled rotor, Aluminum Hub
• Weight: 333 grams – 11.74 Ounces

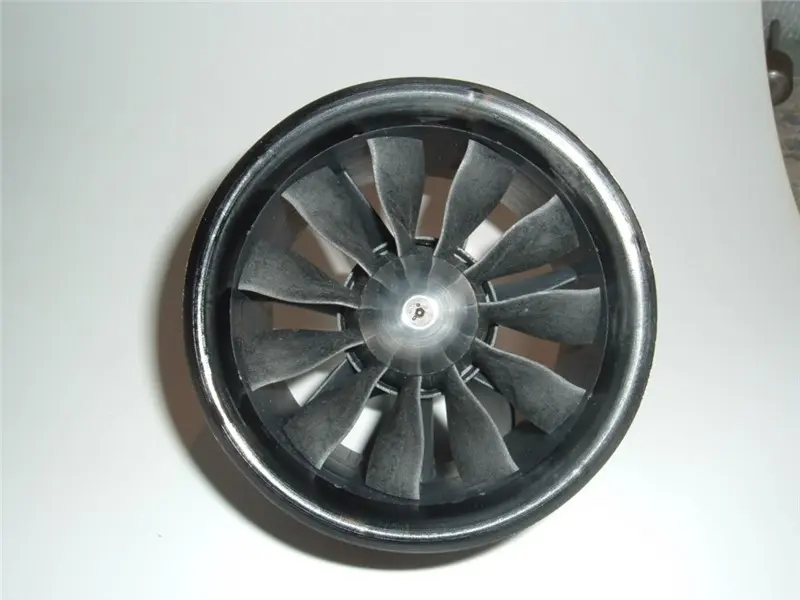

• Rotor: 11 bladed dynamically balanced
• 8 mm chuck adapter
• It comes complete with mounting tabs and instructions
• Takes a motor with a diameter of up to 52mm

Recommended Motors: HET Typhoon 800 motors.

PICTURE NOTE: THE INTAKE RING IN THE PICTURE DOES NOT COME WITH THE 120MM FAN UNIT.

Video Note: The videos below are of the 120mm Jetfan unit just to demonstrate the whooshing sound that the Jetfan edf units are famous for.
