JP Hobby ER-005 Oleo Struts-Single Nose

Description

These oleo struts are made for 64-90mm jets in the 2-6kg/ 4.4-13lbs.  They add functionality and scale realism to your edf jet.  These struts can be used with retracts or with fixed landing gear.  The struts help smooth out rough landings and give better ground handling even on grass fields.

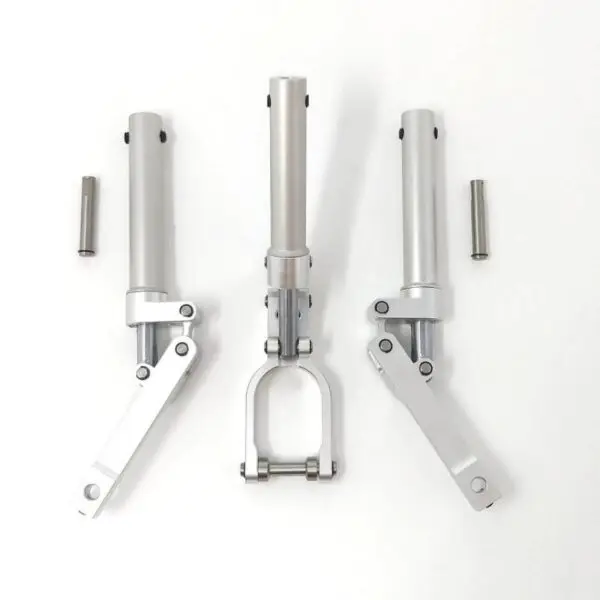

CNC Machined Aluminum articulated and hydraulic suspended landing gear. Main gear and single nose gear. For planes up to 6kg.

These struts work great with RBC Kits designed to take retracts.

These struts will work with both JP Hobby ER-005 and ER-120 retracts.

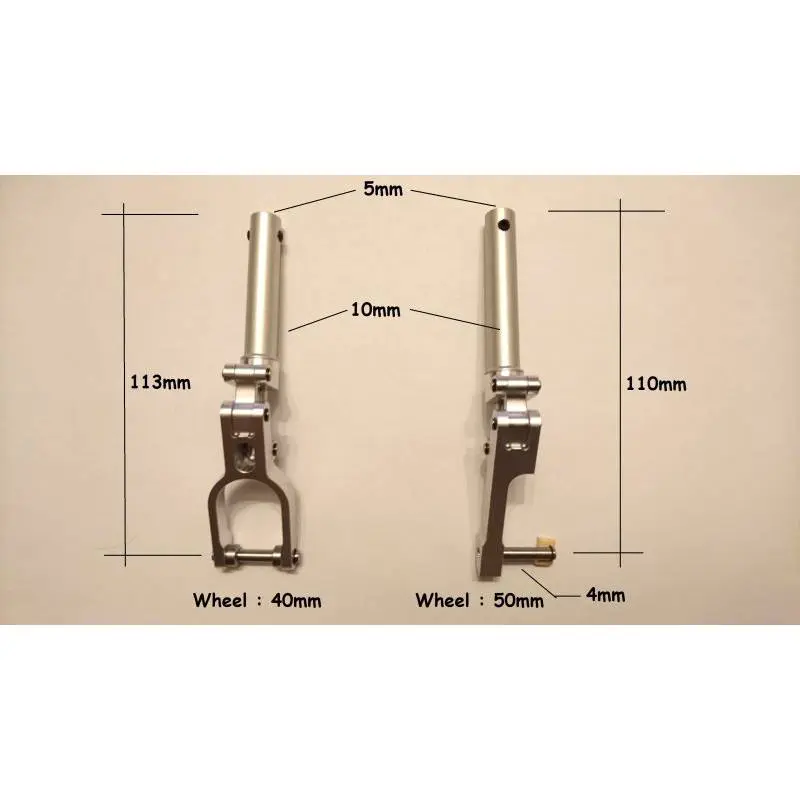

Specifications

• Materials: Aluminum
• Struts diameter: 10mm
• Wheel axle diameter: 4mm
• Mounting shaft diameter on Oleo: 5mm
• Weight: 130g (for the 3 gears)
• Suspension: mechanic
• For planes up to 6kg/ 13.2 lb
• Nose Gear Length: 113mm/ 4.4 Inches
• Main Gear Length: 110mm/ 4.3 Inches
• Nose Gear Wheel: 40mm 4mm axle
• Main Gear Wheel: Up to 50mm 4mm axle with ease.  Can take a 55mm diameter but it is very close and may just slightly rub.  If the corner of the tire is sanded down that could help.

Note: The oleo struts are delivered without the wheels. JP Hobby, retracts, weels and brake
