JP Hobby L-39 Struts

Description

These oleo struts are made for the Jet Teng Models (JTM) 120mm L-39 Arf.  They can also be used with other 120mm jets in the 5-10kg/ 11-22lbs range.  They add functionality and scale realism to your edf jet.  These struts can be used with retracts or with the fixed landing gear.  The struts help smooth out rough landings and give better ground handling even on grass fields. Comes with a steering linkage for the steering servo to the nose gear.

CNC Machined Aluminum articulated and hydraulic suspended landing gear. Main gear and single nose gear. For planes up to 10kg.

Specifications:

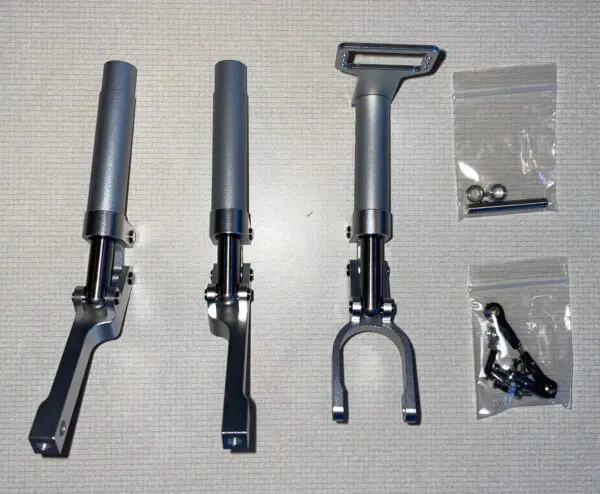

• Main struts x 2
• Nose strut x 1
• Weight: 170g/ 6oz
• Strut Diameter: 12mm
• For planes up to 10kg/ 22 lbs.
• Main Gear Length: 120mm/ 4 3/4″(From axle to the top of the strut where it meets the retract)
• Nose Gear Length: 117mm/ 4 5/8″(From axle to the top of the strut where it meets the retract)
• Steering Servo Mounting Dimensions: Length: 24mm, Width: 12mm
• Main Wheel Axle size: 5mm with adjustable axle length to accommodate different tire size widths.  Can take electric brakes with a 5mm axle size.
• Nose Gear Axle size: 4mm
• Materials: Aluminum
• Suspension: hydraulic

Nose gear takes up to 50mm/ 2″ size wheel that are not included.

Main gear takes up to 65mm/ 2.56″ size wheels that are not included.

Note: The oleo struts are delivered without the wheels. JP Hobby, retracts, wheels and brake systems are recommended for th
