RBC Kits F35C

Description

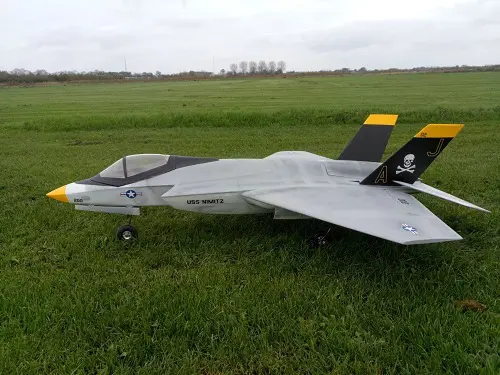

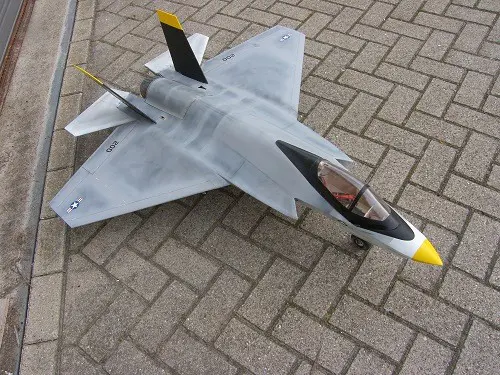

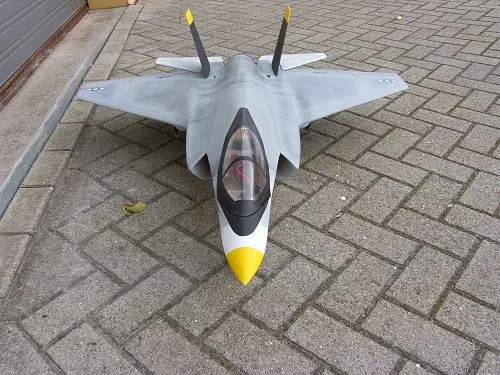

RBC Kits F35C Lightning II 90mm Kit

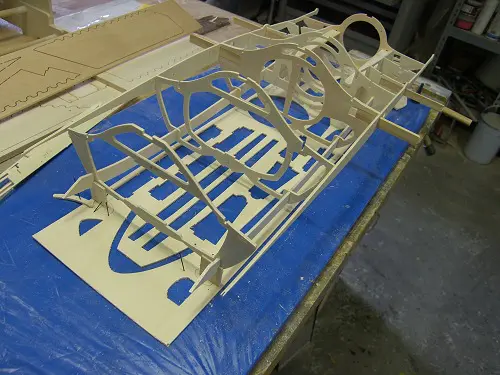

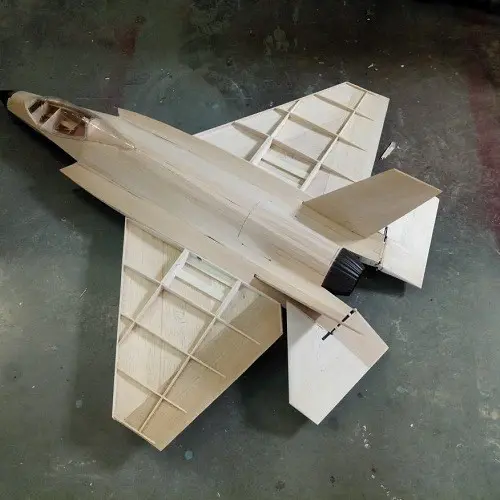

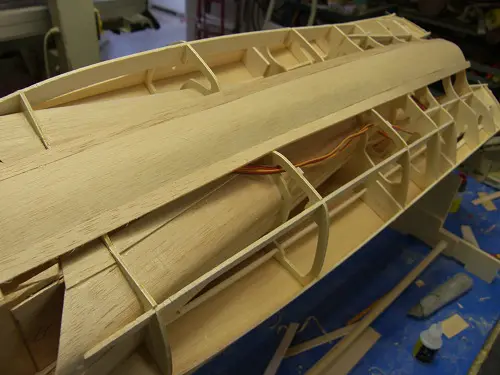

The RBC Kit F35C is a 5th generation jet in an era of stealth capability reaching the deck of the aircraft carrier for the first time. This easy to build kit will create a great looking jet that is easy to repair. The RBC kit features construction of balsa, plywood and abs plastic to make an easy to build/repair kit that has great flying characteristics. The kit contains all parts cnc cut including all wood to finish the F35C. A large clear cad drawing is also included and a vacuum formed canopy, nose cone, tail cone and fairing. It features a large top hatch for easy access to the battery and receiver area. Instructions are on a cd and built on a frame where the parts interlock for strength. It assembles into a one piece design.

Does not come with decals, landing gear or hardware kit. Control horns are included.

Click: RBC Kits F36C Lightning Instruction Manual

SPECIFICATIONS:
Wingspan: 1030mm/ 40.55 Inches
Length: 1250mm/ 49.21Inches
Flying Weight: 3000g and up/ 6.6 lb.
Wing Area: 45 dm2

BUILDERS NOTE: REFER TO THE “ELECTRIC SETUP GUIDELINE” ON THE HOME PAGE TO HELP DETERMINE THE PROPER SET UP FOR FAN, ESC, MOTOR AND BATTERY.

ITEMS NEEDED FOR COMPLETION:

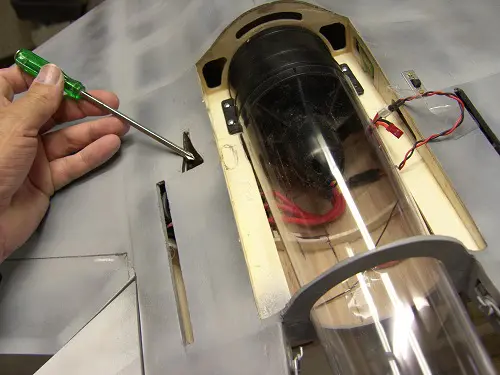

• Ducted Fan: 90mm class fan unit- Jetfan 90, HET 9305, Wemotec Midifan, Schubeler DS-51 and others
• Brush less Motor: 90mm Class
• Electronic Speed Control: Brush less
• Radio: 4ch for regular operation: Tailerons, Throttle, Retracts (steering)

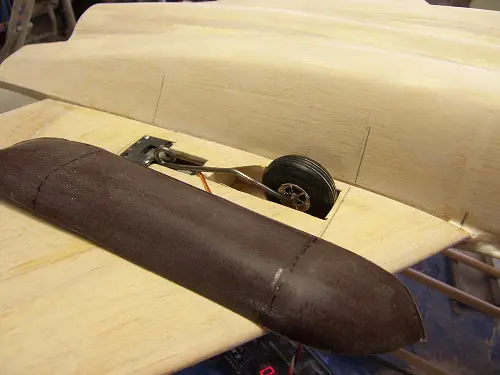

• Landing gear: JP Hobby ER-120 electric retracts
• Struts: JP Hobby 90-120mm struts
• Servos: 25g or higher with metal gears
• Li-Po Battery: 6-8s recommended w/ 40C discharge rate or higher
• 3 in Y Servo Connector-Retracts
• 1 ft Red and Black Silicone Wire
• Battery and Gilt Connectors
• CA and Epoxy glues
• 3x 24 in/ 457 mm Servo Extensions- Tailerons, Throttle
