RBC Kits F20 Tigershark

Sale!
RBC Kits F20 Tigershark
RBC Kits F20 Tigershark - Image 2
RBC Kits F20 Tigershark - Image 3
RBC Kits F20 Tigershark - Image 4
RBC Kits F20 Tigershark - Image 5
RBC Kits F20 Tigershark - Image 6
RBC Kits F20 Tigershark - Image 7

Original price was: $169.99.Current price is: $159.99.

In stock

Item #: RBC-1060
Manufacturer: RBC Kits
Manufacturer’s Product Number: RBC-1060
Condition: New

Description

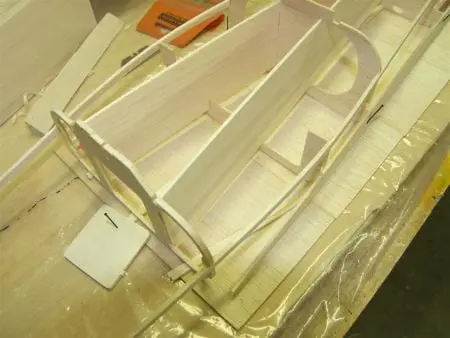

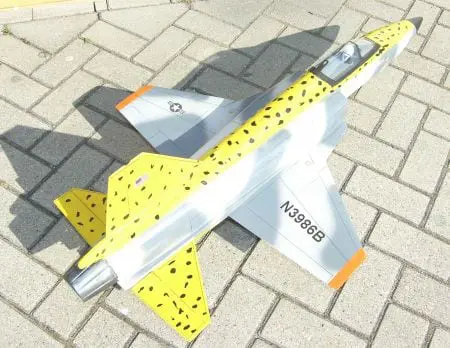

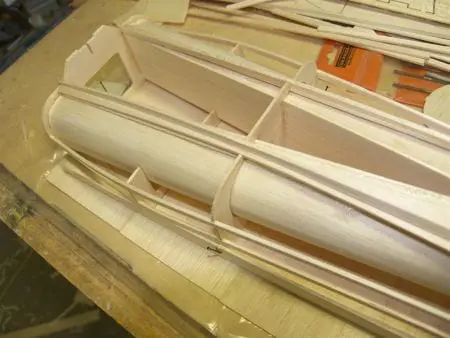

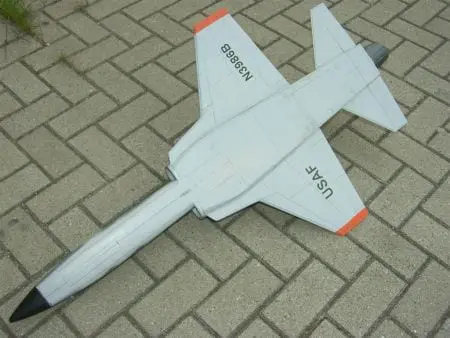

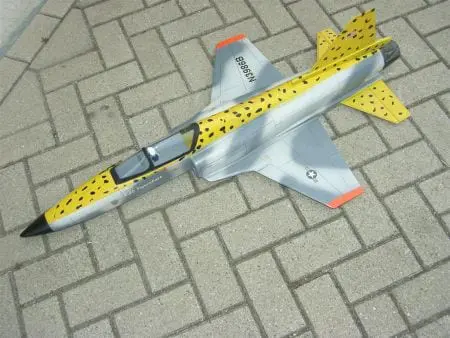

The RBC Kit F20 Tigershark is a easy to build kit that will create a great looking jet that is easy to repair.  The RBC kit features construction of balsa, plywood and abs plastic to make an easy to build/repair kit that has great flying characteristics.  The F-20 can serve as an advanced aerobatic edf jet for the seasoned jet flyer. The kit contains all parts cnc cut including all wood to finish the kit.  A full size cad drawing is also included along with a vacuum formed canopy. Instructions have photos and instructions on a cd.  The F-20 Tigershark works extremely well with the Jetapult launching system from Fan Jets USA.

Decals not included in kit.

Click: RBC Kit F20 Tigershark Instruction Manual

Specifications:
Wingspan: 640mm/ 25.2 Inches
Length: 1165mm/ 45.86 Inches
Flying Weight: 1100 g./ 2.4 lb. and up
Wing Area: 8.8dm2
Wing Loading: 47g dm2 to 66gr dm2
Three channel operation: Aileron and Elevator (Taileron Mixed) and throttle.

BUILDERS NOTE: REFER TO THE “ELECTRIC SETUP GUIDELINE” ON THE HOME PAGE TO HELP DETERMINE THE PROPER SET UP FOR FAN, ESC, MOTOR AND BATTERY.

Items needed for completion:

  • Ducted Fan: 70mm class fan unit- HET 6904, Wemotec Minifan, Schubeler DS-30 and others
  • Brush less Motor: 70mm Class
  • Electronic Speed Control: Brush less
  • Servos (Micro): 2 for regular operation: 2-Tailerons (Requires a transmitter with mixing)
  • Li-Po Battery: Dependent upon the motor chosen (3-4S up to 4,000mAh)
  • 1 ft Red and Black Silicone Wire
  • Battery and Gilt Connectors
  • CA and Epoxy glues
  • 2x 18 in/ 457 mm Servo Extensions- Tailerons

Insurance Note:  Fan Jets USA recommends the purchase of shipping insurance. If insurance is not purchased and the package is lost or damaged, the most that can be claimed with the USPS and awarded to the purchaser (shipment recipient) is $50.00.  Fan Jets USA is not responsible for reimbursing the purchaser the difference of an order of any amount.  Shipping charges are not included in an insurance claim per USPS guidelines.

CA Residents: WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Additional information

Weight 5.4 lbs
Dimensions 41 × 8.5 × 5 in
