Description

Stock Notice:  This is not a normal stock item with Fan Jets USA. If one is wanted it needs to be purchased as a backorder.  It will then be placed with our next RBC Kits order.

When Alexander Lippisch, a famous German aircraft manufacturer, released this rocket-powered interceptor in 1941 it left Allied forces in surprise. With a top speed of 1,130 km/h (700 mph), the ME163 was unmatched for over a decade. But the Komet was not as useful in its intended role as an interceptor, and only about 370 were built.

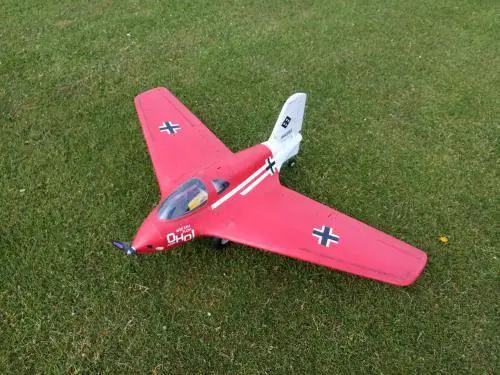

The RBC ME-163 is a true bullet of an airplane.  This plane is capable of flying at 160 mph and fulfilling the need for speed. One of the most unusual aircraft during World War II. The ME-163 offers classic lines and ballistic flight speed. This plane flies extremely fast and is for the veteran RC flyer.

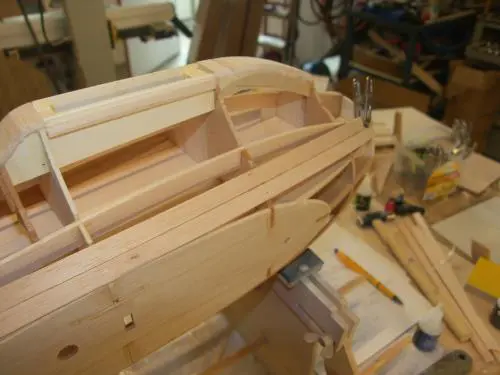

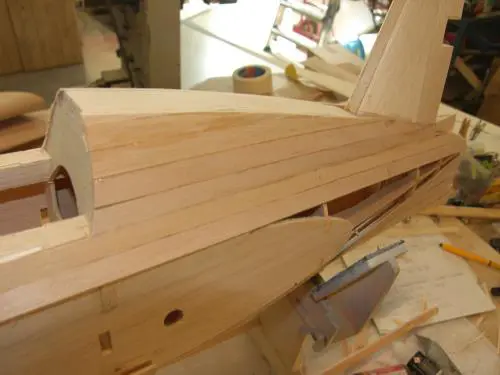

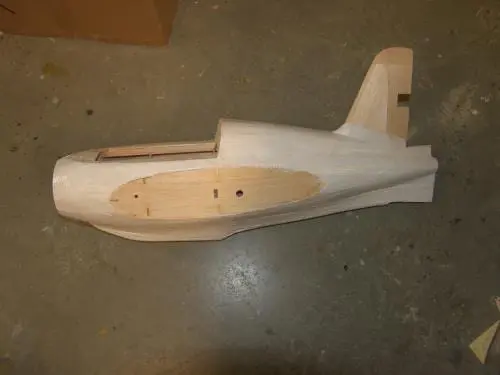

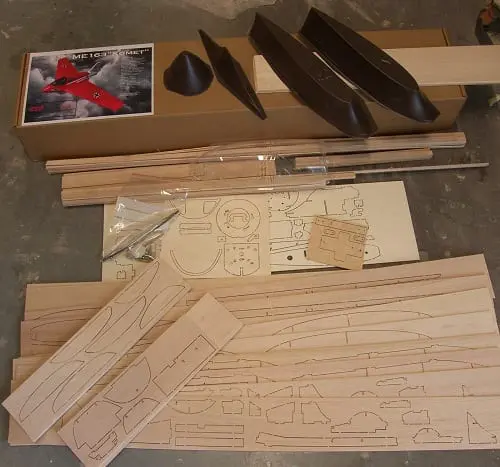

The RBC Kit ME-163 is one of the most unique aircraft in an era where jets were in their infancy of air power. This easy-to-build kit will create a great-looking aircraft that is easy to repair.  The RBC kit features a construction of balsa, plywood, and ABS plastic to make an easy-to-build/repair kit that has great flying characteristics. The kit contains all parts cnc cut including all wood to finish the ME-163. The ME-163 features a large top hatch for easy access to the battery and receiver area. The kit has a one-piece design. Designed to be bungee launched or with the included wheel carriage.  Wheels are not included in the kit.

Decals are not included in the kit.

Kit Features:

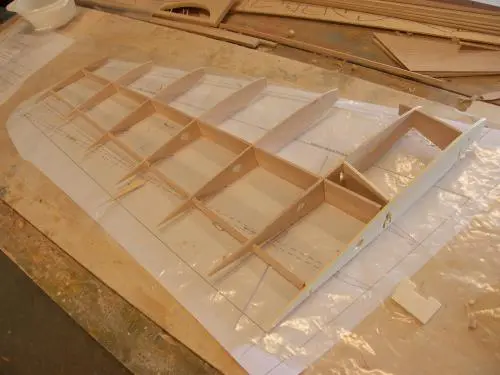

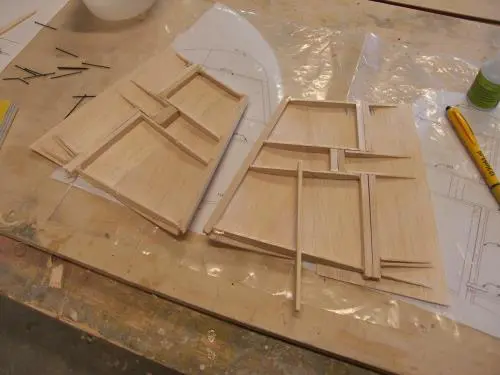

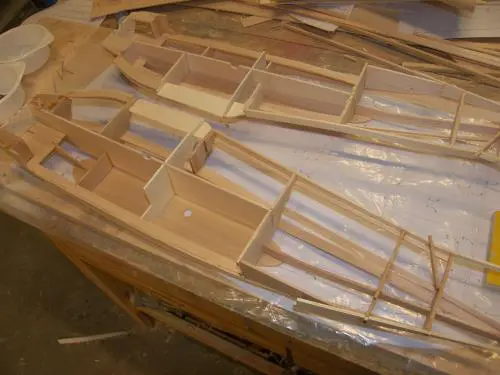

All Formers And Ribs CNC Cut
Unique Tab Lock Design
One Piece Design Easy transportation

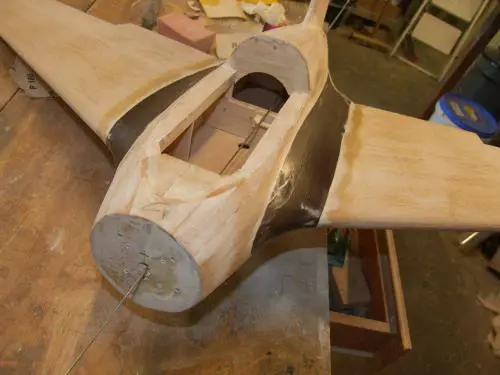

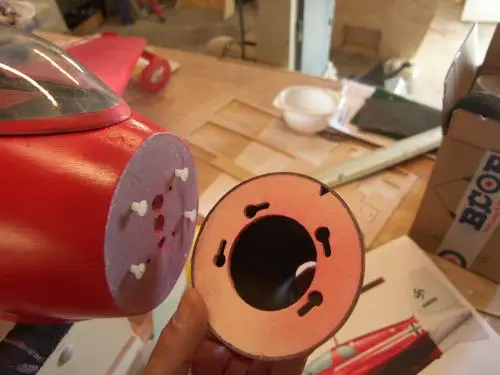

Motor compartment Easy accessible through unique cowl mounting
Battery access through canopy opening
Full Size Rolled Cad Plans With All Parts Shown

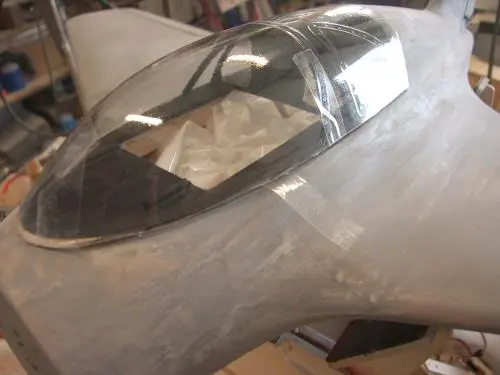

Vacuformed motor cowl, wing fairings, canopy
Pre-designed for jettisonable main landing gear.
Landing gear pre-bent included.
Control Horns, Steering Cables, Hinges
Specifications:
Wingspan: 1250mm/ 49.2 Inches
Wing Area: 31 dm2
Flying Weight: 1600 g. and up/ 3.5 lb. and up
Wing Loading: 50-62 gr dm2
4 Channel Operation: Throttle, Ailevons, Rudder, Wheel dolly release.

BUILDERS NOTE: REFER TO THE “ELECTRIC SETUP GUIDELINE” ON THE HOME PAGE TO HELP DETERMINE THE PROPER SETUP FOR THE FAN, ESC, MOTOR, AND BATTERY.

Items needed for completion:

Recommended Motor Combinations:
  • Outrunner 1,000-12,00 kv range w/ 5mm shaft w/ 3s 4000mAh lipo and 10×6 folding prop
  • HET Xtreme 3826 1000kv w/ 4s 3000mAh lipo and 10×6 prop
  • Or for lower power 150gr motor 3-4s 2500mAh lipo and 9×6 to 10×6 prop
4 Channel Radio with ailevon mixing
Wheels: Main 3.5″/ 90mm and a 1.5″/ 30mm tail wheel
Light weight Servos: About 13 grams (2x ailevons, 1x wheel dolly release and 1x rudder)
Speed controller: brushless and dependent upon the needs of the motor.
Some paint, glass, monokote, or paper finish
Battery:  3S 2200-4000 mAh to 4S 2200-3700 mAh lipo with 45C or higher
Battery and Gilt Connectors
CA and Epoxy glues
3x 18 in Servo Extensions- Ailevons x2, Rudder
Propeller
