RBC Kits Fouga Magister

Description

Stock Notice:  This is not a normal stock item with Fan Jets USA. If one is needed, it must be purchased as a backorder.  It will then be placed with our next RBC Kits order.

RBC Fouga Magister

The Fouga CM.170 Magister is a French two-seat jet trainer from the 1950s, famous for being the world’s first jet-powered basic trainer to enter military service. It is most easily recognized by its distinctive V-tail (or butterfly tail), a design feature originally used on gliders

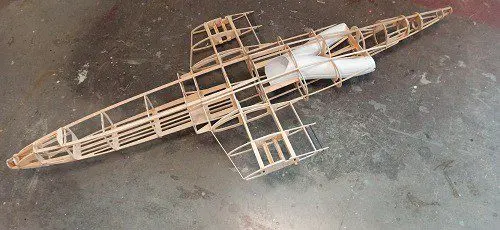

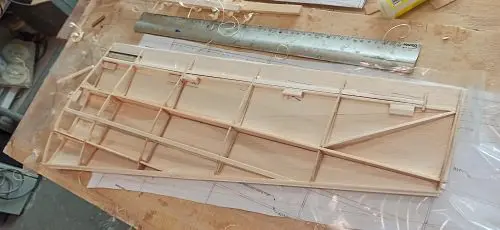

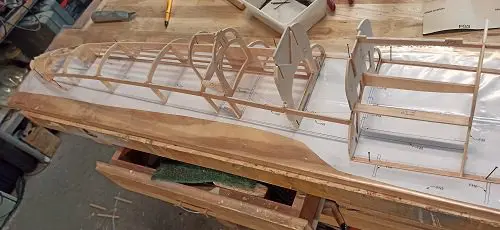

The Fouga Magister is an easy-to-build and fly kit that is a great choice for your first edf jet.  It has a wide flight envelope as it can serve as a trainer or turn up the speed, and you have an aerobatic thrill ride. RBC Kits created a great-looking jet that is easy to repair. The RBC kit features construction of balsa, plywood, and ABS plastic to make an easy-to-build/repair kit that has great flying characteristics.  The kit contains all parts CNC cut, including all wood to finish the kit.  A large, clear CAD drawing is also included, with a vacuum-formed canopy, nose cone, and tip tanks. It features a large top hatch for easy access to the battery and receiver area. Built on a frame where the parts interlock for strength.  It features removable wings for easy transportation.

Does not come with decals, landing gear, or a hardware kit.

Fouga Magister Instruction Manual

BUILDERS NOTE: REFER TO THE “ELECTRIC SETUP GUIDELINE” ON THE HOME PAGE TO HELP DETERMINE THE PROPER SET UP FOR FAN, ESC, MOTOR, AND BATTERY.

ITEMS NEEDED FOR COMPLETION:

• Ducted Fan: 90mm class fan unit- Jetfan 90, HET 9305, or Schubeler DS-51
• Brushless Motor: 90mm Class
• Electronic Speed Control: Brushless
• Retract Gear: Servo-less Retract with Metal Trunion and frame
• Radio: 8ch for regular operation: Ailerons, flaps, elevator, rudder, throttle, retracts (steering)
• Servos: 2x 30g or higher (flaps), 5x 13g or higher metal gear
• Li-Po Battery: 6-8s recommended w/ 40C discharge rate or higher 5000mAh
