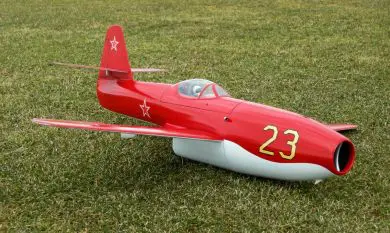

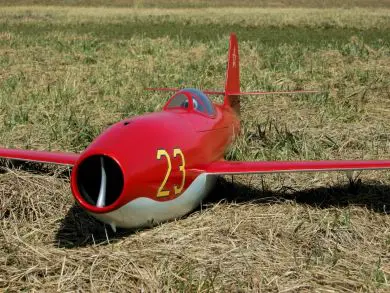

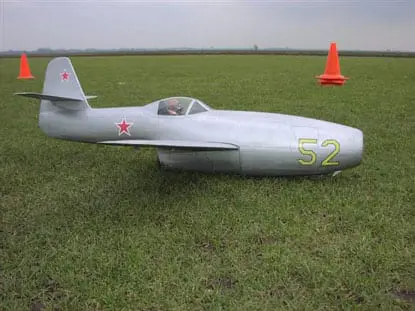

RBC Kits Yak 23

Description

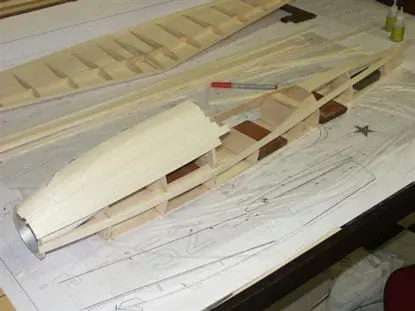

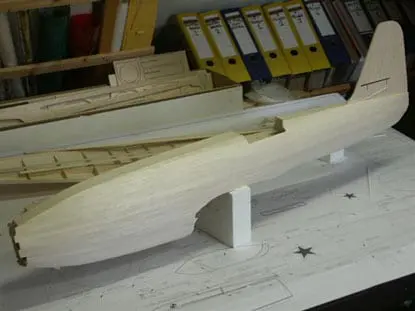

The Yak-23 was developed as a simple lightweight jet fighter, on Yakovlev’s own initiative. It was a development of the earlier Yak 15 and Yak 17 fighters, retaining their non-conventional layout with a Jet engine in the fuselage nose and exhaust under the cockpit, but the construction was all new. Its wings were derived from the Yak 19.  This model was designed for a Mini Fan pro. It is performed in a typical RBC construction with wooden hull and fin surfaces, however, the planking is on this model because of the form of fairly simple. The Yak 23 will fly medium speed. It is controlled by ailerons, elevator and throttle. The kit contains all wood parts CNC machined in selected material, deep drawn parts, a detailed plan and small parts.

Decals not included in kit.

Click for instruction manual

Click for photo instrutions

This kit will work very well with the Jetapult launching system with Fan Jets USA.

BUILDERS NOTE: REFER TO THE “ELECTRIC SETUP GUIDELINE” ON THE HOME PAGE TO HELP DETERMINE THE PROPER SET UP FOR FAN, ESC, MOTOR AND BATTERY.

Design Features:

• All formers and ribs CNC cut
• Unique tab lock design
• Two piece design for easy transportation

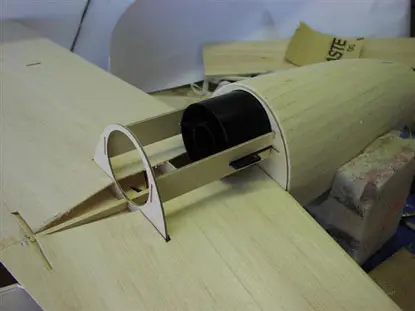

• Motor/Fan accessible through wing
• Easy battery access through wing
• Water slide decals included

Items needed for completion:
