RBC Yak 15 90mm Kit

$204.99 $174.99

Item #: RBC-6133
Manufacturer: RBC Kits
Manufacturer’s Product Number: RBC-6133
Condition: New

Out of stock

Description

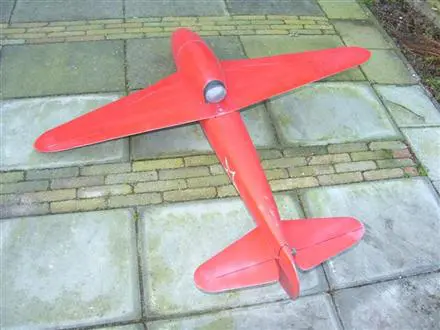

RBC Yak 15 90mm Kit

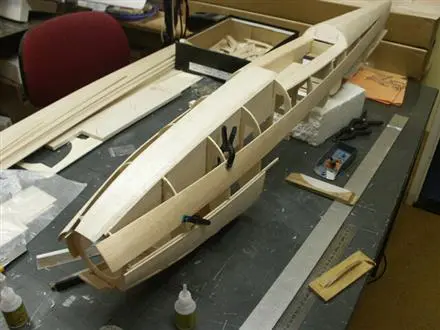

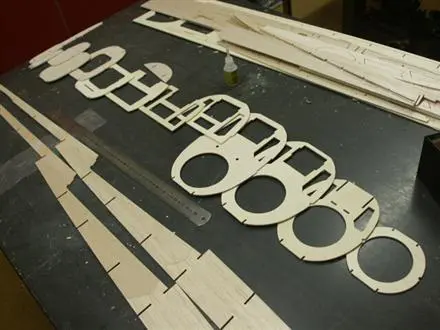

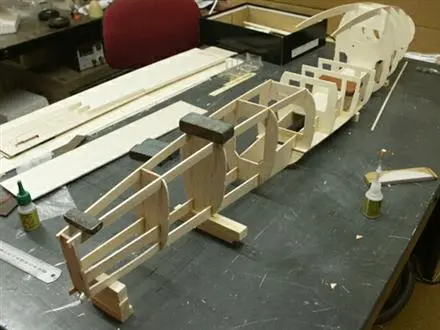

The RBC Kit Yak 15 is one of the most unique jets in a era where jets were reaching their full potential in air power. This easy to build kit will create a great looking jet that is easy to repair.  The RBC kit features construction of balsa, plywood and abs plastic to make an easy to build/repair kit that has great flying characteristics.  The Yak 15 can serve as a great cruiser or advanced aerobatic edf jet for the seasoned jet flyer. The kit contains all parts cnc cut including all wood to finish the Yak 15.  A large clear cad drawing is also included. The Yak 15 features a large top hatch for easy access to the battery and receiver area. The kit has a two piece design for easy transportation and a hatch for fan access. Instructions on cd rom include photos.  Designed to be bungee launched.

Decals not included in kit.

Specifications:
Wingspan: 1400mm/ 55.1 Inches
Wing Area: 36 dm2
Flying Weight: 1800 g. and up/ 4 lb. and up
Wing Loading: 53 gr md2 to 66 gr dm2
5 Channel Operation: Ailerons, Throttle, Elevator, Rudder, Retracts.

BUILDERS NOTE: REFER TO THE “ELECTRIC SETUP GUIDELINE” ON THE HOME PAGE TO HELP DETERMINE THE PROPER SET UP FOR FAN, ESC, MOTOR AND BATTERY.

ITEMS NEEDED FOR COMPLETION:

  • Ducted Fan: 90mm class fan unit- HET 9305, Wemotec Midifan, Schubeler DS-51 and others
  • Brush less Motor: 90mm Class
  • Electronic Speed Control: Brush less
  • Servos (Micro): 2 for regular operation: 2-Ailerons, 1-Elevator, 1-Rudder,
  • Retracts: Max depth is 20mm and designed as a Yak 15 with a tail wheel, 2 main gear
  • Li-Po Battery: Dependent upon the motor chosen (5-6S 3200-3500mah)
  • 3 in Y Servo Connector-Ailerons
  • 1 ft Red and Black Silicone Wire
  • Battery and Gilt Connectors
  • CA and Epoxy glues
  • 2x 18 in/ 457 mm Servo Extensions- Ailerons
  • 18 in Servo Extensions- Elevator

Insurance Note:  Fan Jets USA recommends the purchase of shipping insurance. If insurance is not purchased and the package is lost or damaged, the most that can be claimed with the USPS and awarded to the purchaser (shipment recipient) is $50.00.  Fan Jets USA is not responsible for reimbursing the purchaser the difference of an order of any amount.  Shipping charges are not included in an insurance claim per USPS guidelines.

Additional information

Weight 5.4 lbs
Dimensions 41.5 × 8 × 5 in
