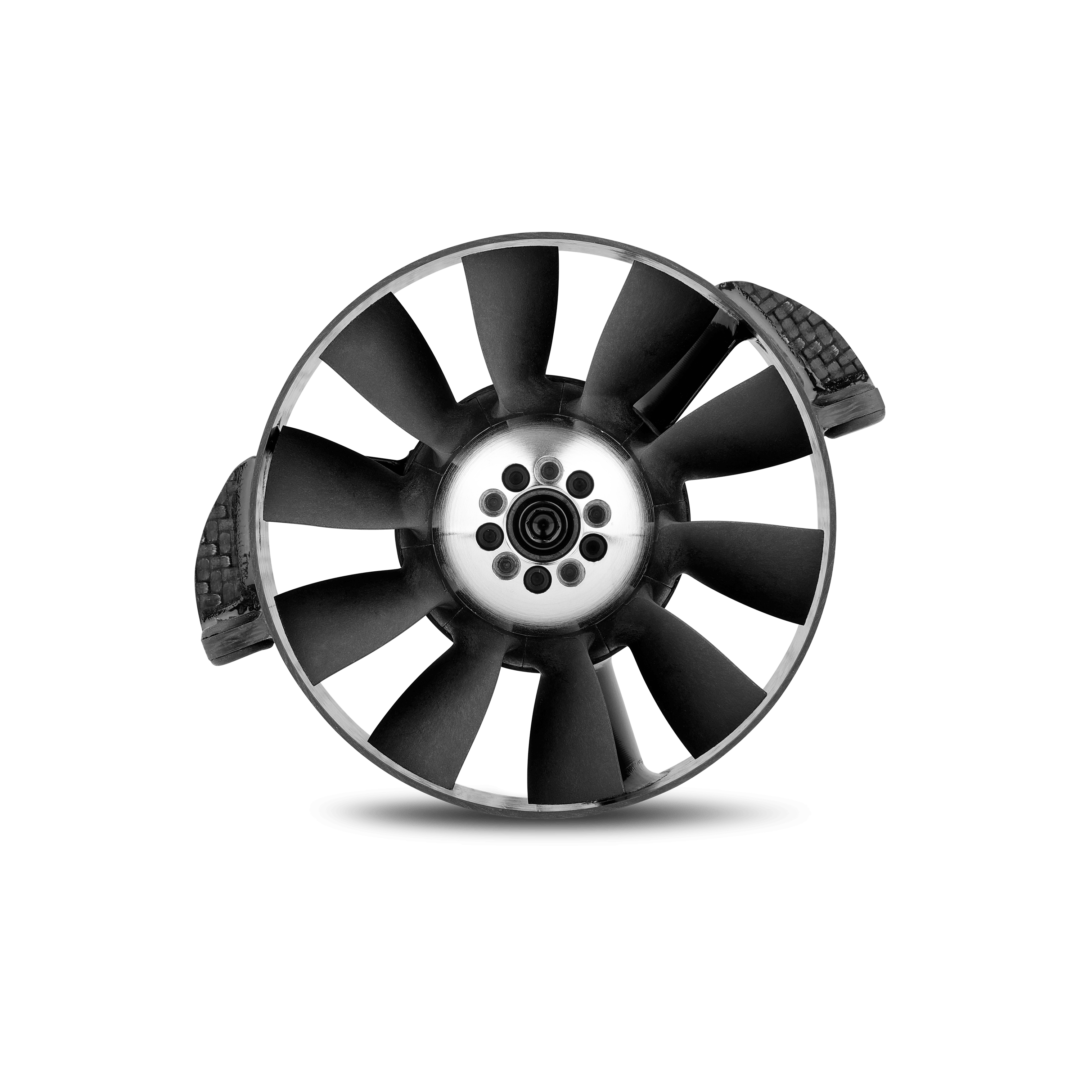

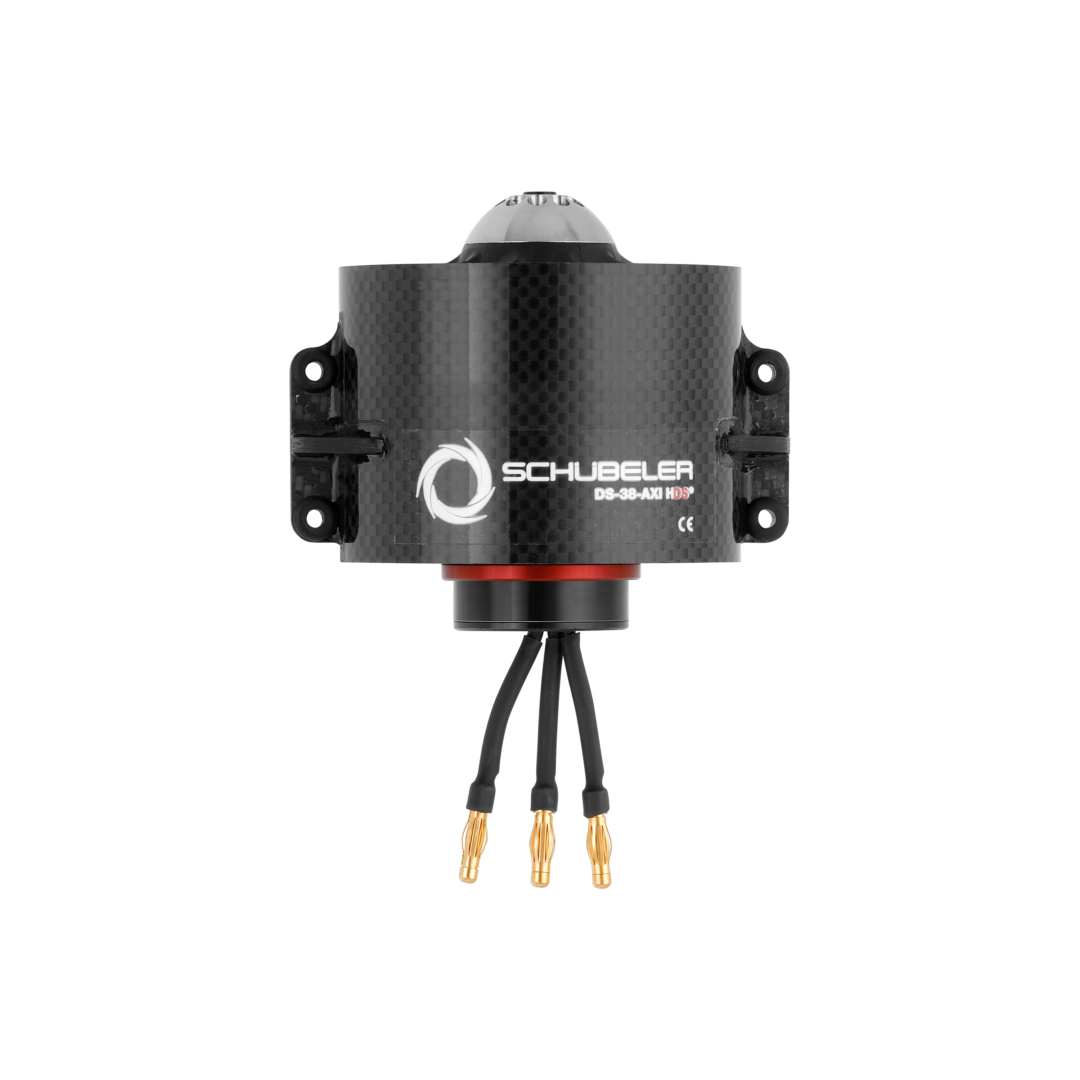

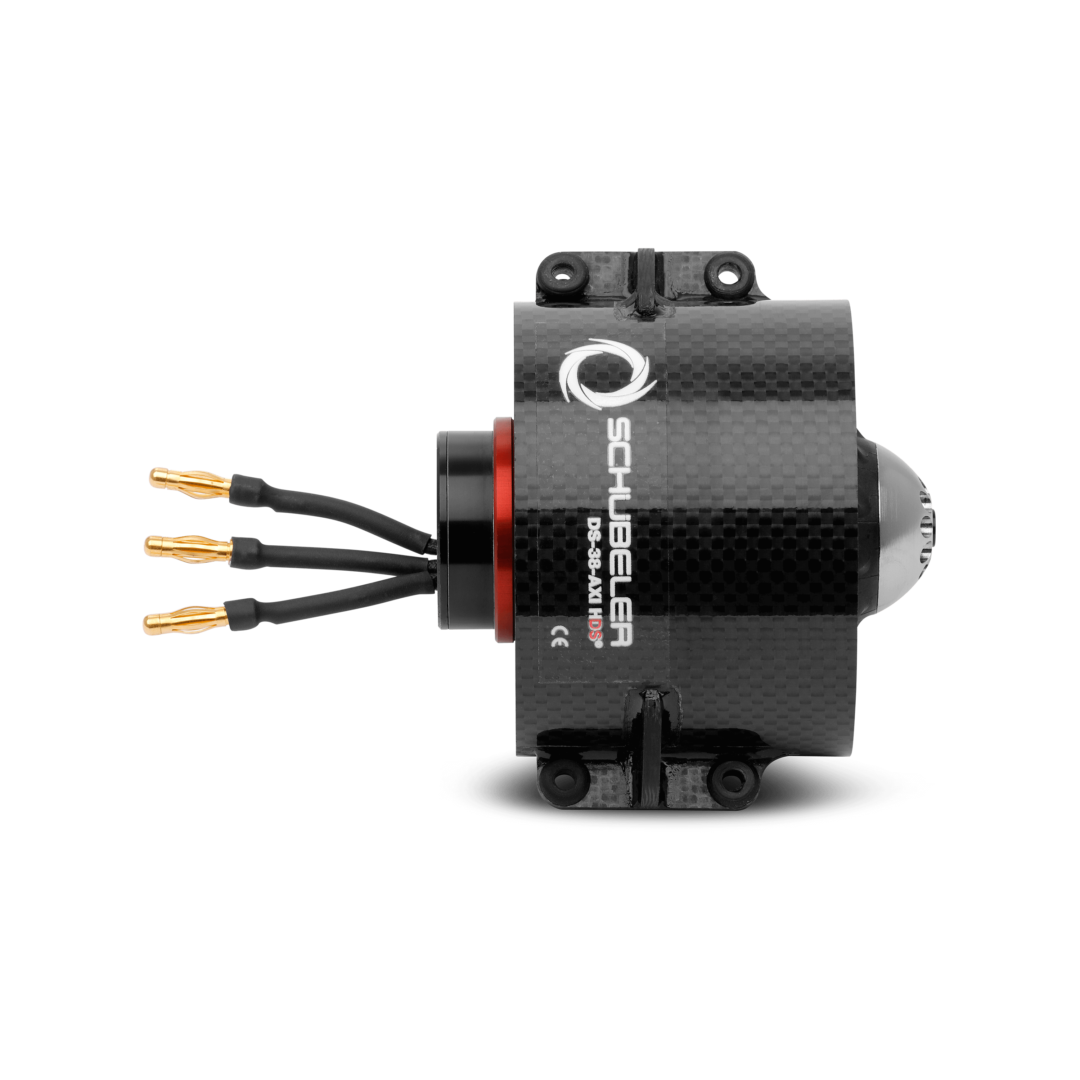

Schubeler DS-38-AXI HDS 80mm

The new Schubeler HDS fans offer high-tech fan technology for a wide market segment.

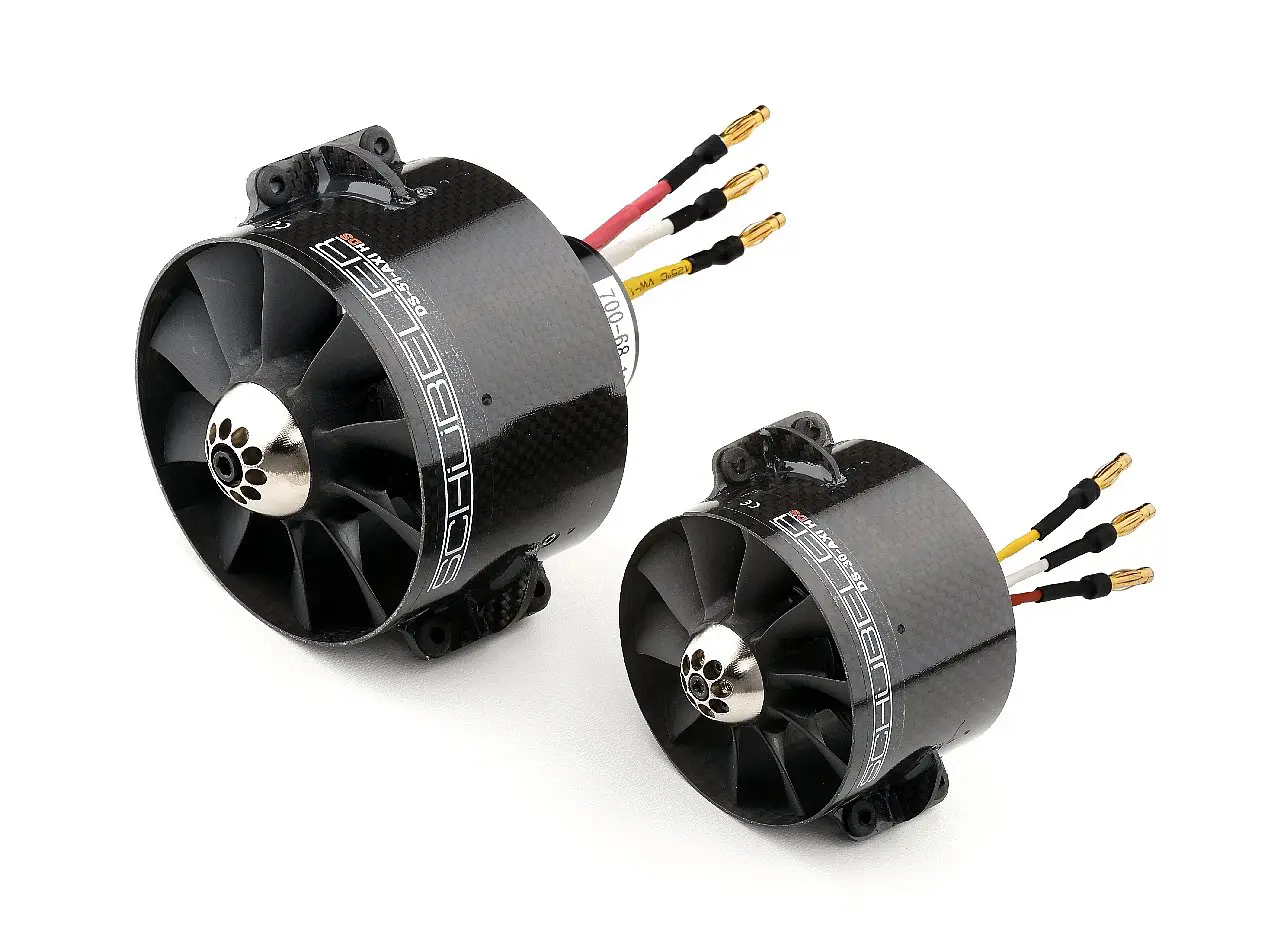

The new fan of the 69 to 120 mm class is based on the Schubeler HDS technology. This technique is characterized by an ingenious mix of materials, which leads to excellent technical features combined with an affordable price.

We have put a lot of effort and our full turbo machinery expertise into the development process of the HDS fans.

On the basis of our CFD optimization, the blades of the new fans are highly efficient, broadband, and quiet. In addition, they were designed mechanically very strong, and very rigid through our FEA calculations. The times of rubbing and twisting rotor blades are gone with the AXI HDS.

The stator consists of high-strength machined aircraft aluminum and guarantees perfect fan motor cooling. This is unique in this class.

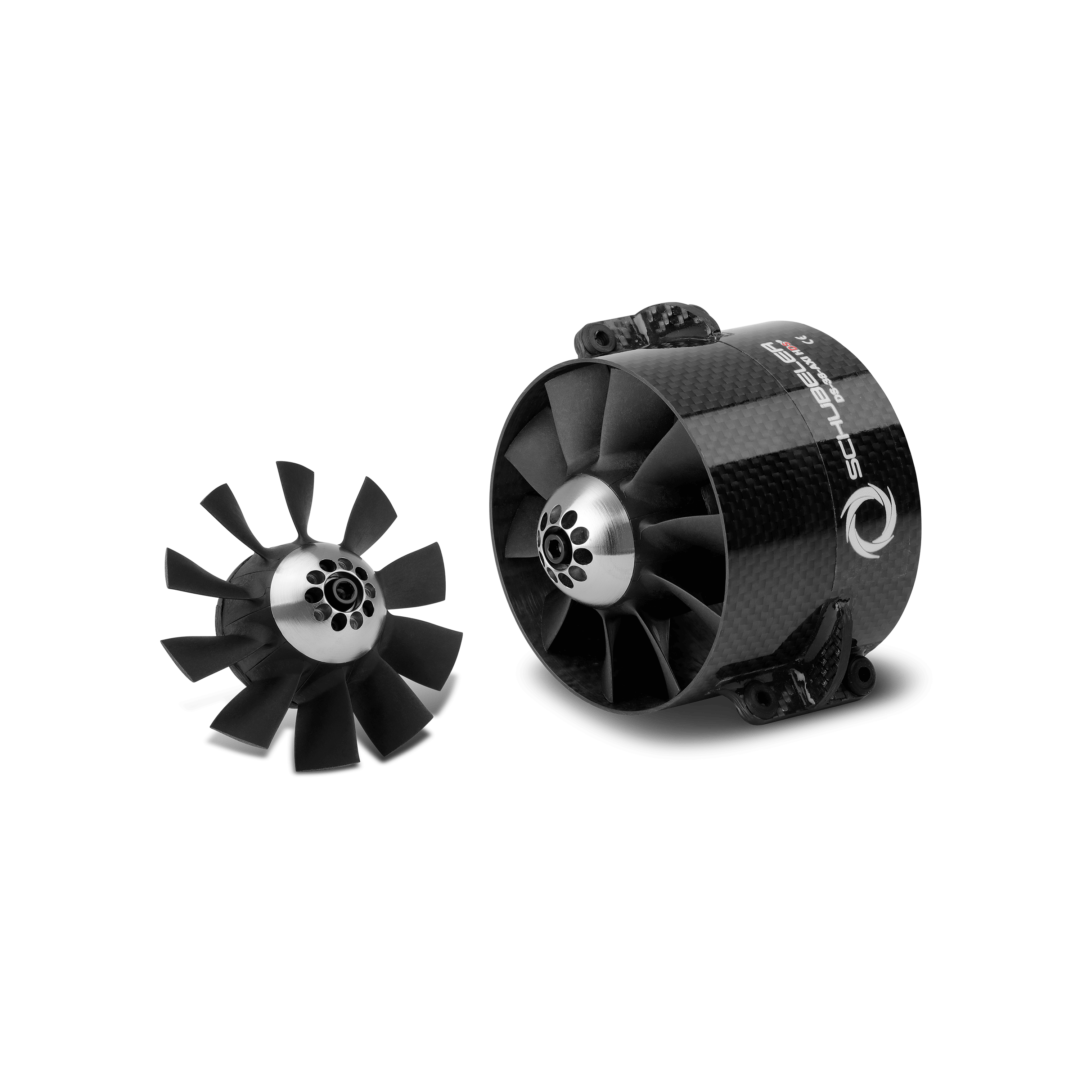

The fan housing made from unidirectional carbon fiber is bonded to the aluminum stator. The housing is very stiff and allows the realization of a very small tip clearance. This leads to a higher static thrust when the fan is installed in the model.

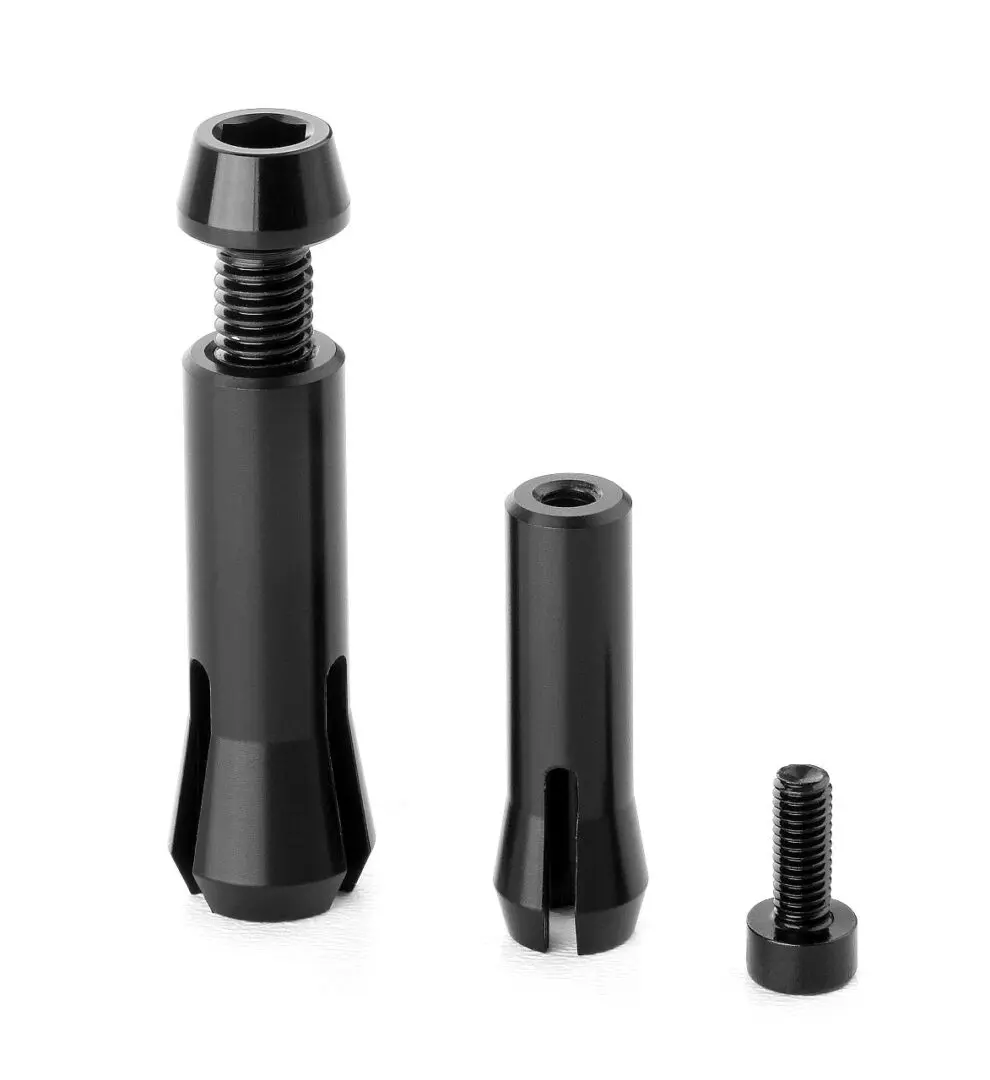

The DS-38-AXI HDS allows a motor diameter of max. 36-39mm. The hole pattern of the aluminum frame fits all standard brushless motors. The rotor has a 5mm H7 bore.

Mounting tabs come included from the factory.

BUILDERS NOTE: REFER TO THE “ELECTRIC SETUP GUIDE” ON THE HOME PAGE TO HELP DETERMINE THE PROPER SETUP FOR THE FAN, ESC, MOTOR, AND BATTERY.

Specifications:

• Diameter: 80mm
• Rotation: Counter Clockwise (CCW)
• Weight incl. Secure Fan Fix-frame: 100g/ 3.6 oz
• Static thrust range up to: 51N Max/  11.4lbs (Estimated)
• Max. motor diameter: 39mm
• Speed range: 22,000 – 50,000 Revolutions per min.
• Power input: 4,350W
• Static efficiency: 73%
• Motor Shaft Size: 5mm
• Recommended Motors: HET 650 and 700 series motors (not included).
• Max. Exhaust Speed: 106m/s
