Boomerang Mini Viper

The Boomerang Mini Viper with free shipping!

Download Instruction Manual

The Mini Viper is a fully composite airframe designed to fly either as an EDF or as a Turbine!  The Mini Viper has all the amazing qualities of a Viper, but pocket-sized!  From the high-speed, and High G flying to the relaxed and graceful, the Mini Viper can do it all.  Once you drop the flaps, the MV will come to a crawl, making landings a breeze.

Being fully composite means that the airframe is completely painted and uses live hinges for most of the control surfaces, and the rudder uses high-quality pin-style hinges to keep a center hinge location.  There are two hatches on the MV to allow for easy access to the battery and radio equipment, and then one on the belly to allow for easy access to your EDF unit or turbine.

Included in the box is the full composite Mini Viper, Composite Thrust Tube, High Quality landing gear with brakes and brake controller, and the hardware package.

To make transportation easy, the wings are removable with a single bolt hidden in the main gear wells.

The Mini Viper will accept turbines 35-65 and fly just great!

Specification:

• Wingspan: 55 inches or 1400mm
• Length: 49.2 inches or 1250mm

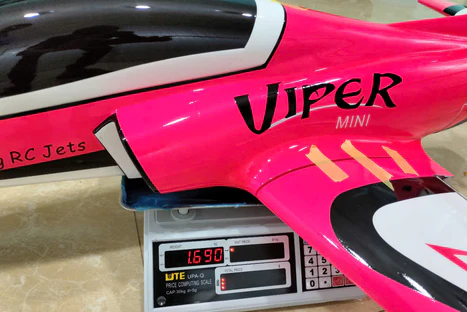

• Weight: 10-15 lbs
• EDF size: 90mm
• Turbine:  35-65N if doing the turbine conversion
• Fuel Tank Size:  33.8 oz or 1 liter (purchased in the turbine conversion)

What’s Included:
(1) Boomerang Mini Viper Jet Kit
(1) Hardware Package
(1) Electric Retract System w/ Electric Brakes
(1) Carbon Fiber Wing and Stab Tubes Set

Required for Flight:

• 7x  TORQ CL0508 Micro Servos
• 1x TORQ CL1208 Mini
• 90mm EDF unit and ESC
• 6-10s LiPo for EDF
• Receiver Battery
• Gyro (recommended)

Turbine conversion includes:

• Thrust Pipe
• Fuel Tank
