E-Jets Jetfan 80mm V3 EDF Unit

The new E-Jets JETFAN-80 V3 was developed from the proven JF-80.  Thanks to the increased ring area (FSA) of 37.7 qcm and new lower resistance stator blades, the efficiency and engine cooling could be improved again!  This results in an increase in thrust of up to 5% with the same input power!  The design continues in the direction of high jet speed and dynamic thrust.  Special care was taken to ensure that you can continue to use your tried and tested high-speed 36mm-40mm motors.

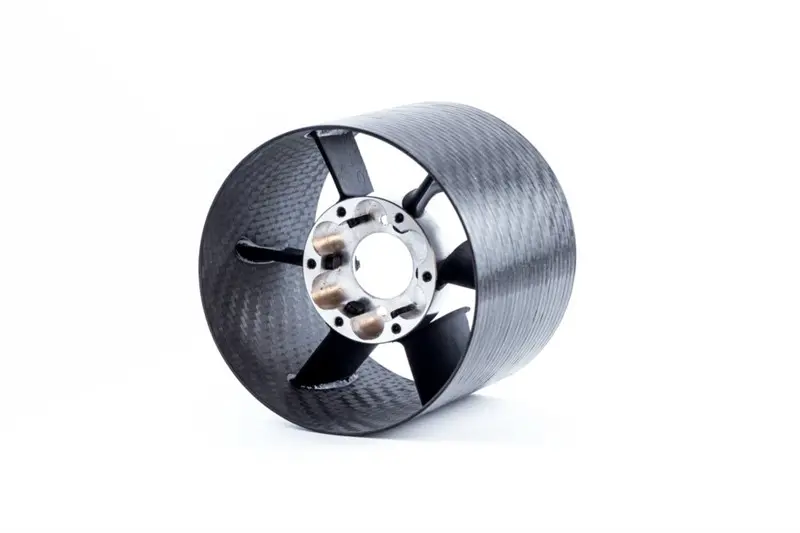

Matching complete heat sinks are available for 36mm motors like the HET-650 series, and for the 39mm motors like the HET-700 series there are enclosed tubes from 39.00 to 40.00mm so that the various motors are always fully supported by the stator blades,

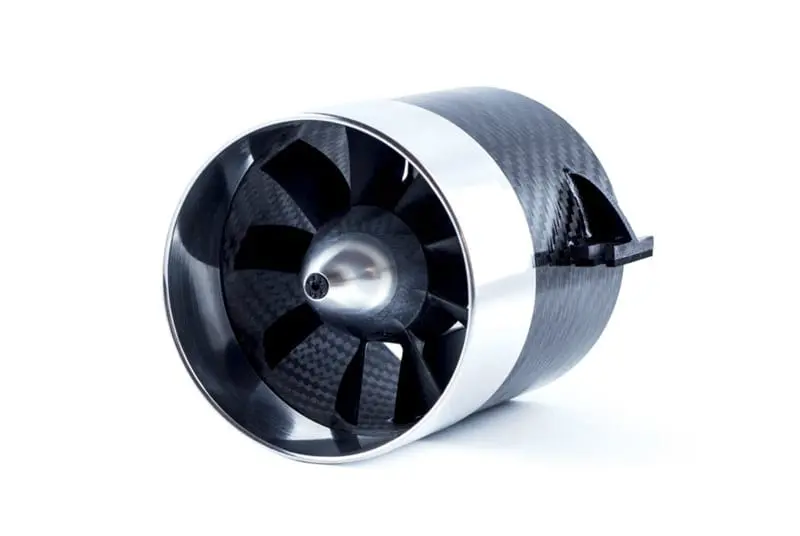

The JETFAN80, a 9-blade modular rotor with all-carbon housing, is expertly handmade in Austria and very affordable! This Fan was specially developed for a new “Jetsound”. The sound is very unique and the sound intensity has been minimized in order to get a smooth Whooshing sound similar to a turbine. The high pitch frequencies have been minimized in the design.

Compared to other fan systems which are mainly made for static thrust we have the advantage of high speeds. The fan blade design has been developed so that you can use common Kv motors and ESC with just a little more amp draw than a regular 80mm fan. The fan does not require highly specific low Kv motors in order to work. A very affordable multi-blade fan unit that gives you a jet-like sound at an unbeatable price!

BUILDERS NOTE: REFER TO THE “ELECTRIC SETUP GUIDE” ON THE HOME PAGE TO HELP DETERMINE THE PROPER SETUP FOR THE FAN, ESC, MOTOR, AND BATTERY.

SPECIFICATIONS:

• Shaft Diameter: 5mm
• Weight: 3.8oz/107.7g
• Input Power: 350-4,500 Watts
• Thrust Output: Up to 4.6kg/ 10.14 lbs.
• Rotor: Balanced at Jetfan factory
• Housing Length: 60mm
• Outside Housing Diameter: 81mm
• Inner Housing Diameter: 79.5
• Rotor Diameter: 79mm
• Mounting Tab: 25mm x 12mm
• Motor Diameter: 36-40mm
• Motor Shaft Size: 5mm
• Motor: HET 650 or 700 series edf motor recommended
• Fan Housing Material: Carbon Fiber
