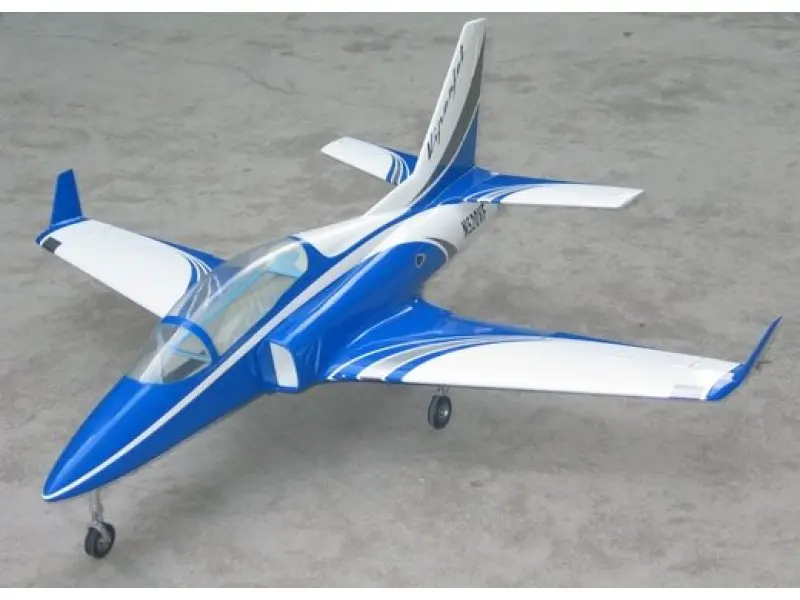

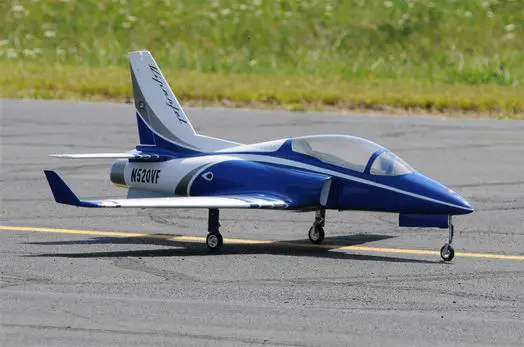

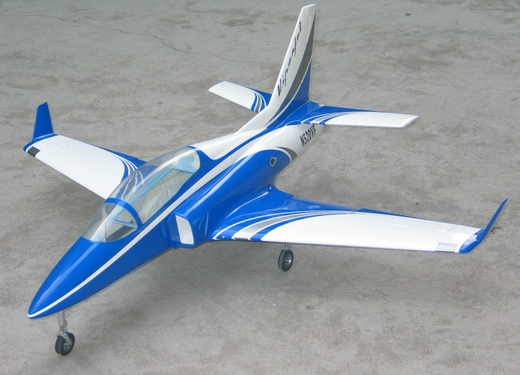

JTM Viper Blu/Slvr 1.7 120mm
$1,719.99 – $1,879.99
Item #: JTM-1107A
Manufacturer: JTM
Manufacturer’s Product Number: JTM-1107A
Condition: New
Description
Free Shipping! Special order the JTM Viper with Fan Jets USA. Lead time is an estimated 50 days. The jets are produced at the time of order. This ensures that our customers get a jet with the latest building techniques and one that has not been sitting for a long time in a factory.
Jet-Teng Models (JTM) are small, scale, and sport RC planes that are meticulously crafted to customer liking. There are dozens of available schemes and custom colors available upon request. The workmanship on these models is impeccable with great attention devoted to every detail from the airframe construction to the paint to all the finishing processes.
All fuselages are 100% composite with solid construction that is light, durable, and designed to withstand the stresses of high-speed, aerobatic flight. Integrated carbon fiber at key construction locations makes a very lightweight and super strong airframe.
Jet-Teng Models originated as a ducted fan platform and were re-engineered to accommodate Jet Turbines for propulsion. We offer both models, a Turbine or ducted fan.
Turbine Setup: If you wish to put a turbine in the Viper the turbine conversion kit will need to be purchased at the same time as the jet. They will be shipped together from the JTM factory. A link to the turbine conversion page is listed below.
The JTM Viper Jet is a full composite model with a high degree of prefabrication and painting. The two-part wing is attached to the left and right of the fuselage with an aluminum tube. This results in faster assembly and disassembly as well as space-saving transport (best suited for smaller cars). The RC system, the ECU, and the kerosene tank can be comfortably accommodated under the removable canopy, and the batteries can be mounted right at the front of the fuselage. The turbines or EDF are installed from the top of the fuselage through a spacious, separate maintenance cover with integrated “spring locks”. The electric retractable landing gear is made of high-quality aluminum and braked, the struts dampen rough landings very well. Ideal turbines for the JTM Viper Jet are turbines between 6 – 10kg thrust or EDF with 120mm diameter.
The flight behavior is very good-natured, short take-off distances on asphalt and on the grass runway are outstanding features. The extremely low landing speed due to the low flight weight and the associated low wing loading, as well as the well-acting landing flaps, are further plus points that are also advantageous for “turbine beginners”. The scope of delivery includes many small parts, as well as the linkage for the rudder linkage.
- Length:1700mm(67in)
- Wing Span:18400mm(72.4in)
- Material: All Composite with carbon fiber reinforcements
- Fan:120mm
- Flying Weight: 6500g/ 14.3lbs
EDF Unit Setup:
- 120mm EDF: Schubeler DS-86 AXI, JP Hobby, or E-Jets unit recommended.
- Brushless Motor: runs on a 10-14s lipo battery. A 12s power system is recommended for best performance.
- Brushless ESC: Castle Creations or HobbyWing esc recommended. The amps is determined by the motor chosen for power.
- Lipo Battery: 5-6,000mAh and 45-65C rating.
Turbine setup:
- Power: 6kg-10kg turbine
- Pipe available
- 1.8L Kevlar Fuel Tank available
BUILDERS NOTE: REFER TO THE “ELECTRIC SETUP GUIDELINE” ON THE HOME PAGE TO HELP DETERMINE THE PROPER SETUP FOR THE FAN, ESC, MOTOR, AND BATTERY.
ITEMS NEEDED FOR COMPLETION:
- Ducted Fan: 120mm class fan unit– Jetfan 120, JP Hobby, Schubeler DS-86, and others
- Brushless Motor: 120mm Class
- Electronic Speed Control: Brushless
- Retract Gear: JP Hobby ER-120 electric retracts (See link below)
- Struts: Recommend JP Hobby Viper Oleo Struts (See link below)
- Nose Wheel: JP Hobby 50mm, 4mm axle wheel
- Main Wheels: JP Hobby 65mm, 5mm axle wheel (either standard wheel or e-brakes)
- Radio: 6ch for regular operation: Ailerons, flaps, elevator, rudder, throttle, retracts (steering)
- Aileron/ Flap Servos: 4x Hitec HS-125MG, or Hitec HS-5125MG or Feetech Wing Digital Servos
- Elevator/ Rudder Servos: 3x Hitec HS-85mg or Feetech Micro Digital 180.
- Nose Gear Steering Servo: Hitec HS-82MG or Feetech Micro Metal Digital Servo
- Li-Po Battery: 12-14s recommended w/ 40C discharge rate or higher 5000mAh
- Wheels: Nose wheel 55mm, Main wheel 60-65mm
- Servo Extensions: 2x “Y” extensions, 8x 24″ extensions
- 2 ft Red and Black Silicone Wire
- Battery and Gilt Connectors, canopy closing, hinges, horns, small parts to your choice
- CA and Epoxy gluesFlight Surface Setup:
Elevator : -+/15mm
Rudder: -+/30mm
Ailerons: -+/18mm
Flaps: Take-off – 30mm, Landing – 50mm
C.G. 175mm From the L.E. where the wing meets the fuselage.
Insurance Note: Fan Jets USA recommends the purchase of shipping insurance. If insurance is not purchased and the package is lost or damaged, the most that can be claimed with the USPS and awarded to the purchaser (shipment recipient) is $10.00. Fan Jets USA is not responsible for reimbursing the purchaser the difference of an order of any amount. Shipping charges are not included in an insurance claim per USPS guidelines.
CA Residents: WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Additional information
Weight | 22.5 lbs |
---|---|
Dimensions | 48 × 18 × 17 in |
Landing Gear | None, Retracts/Struts/Brakes |
