RBC DH108 Swallow 90mm Kit

$294.99 $224.99

Item #: RBC-DH100KWZ80
Manufacturer: RBC Kits
Manufacturer’s Product Number: RBC-DH100KWZ80
Condition: New

In stock

Description

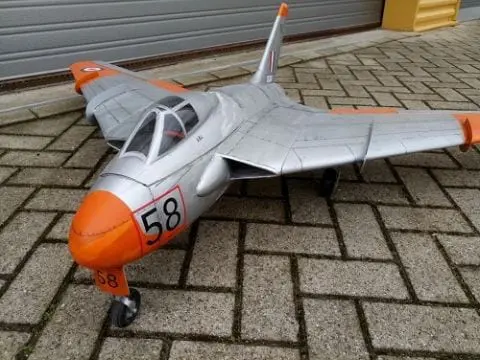

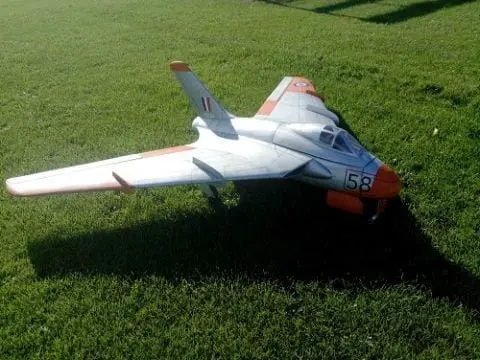

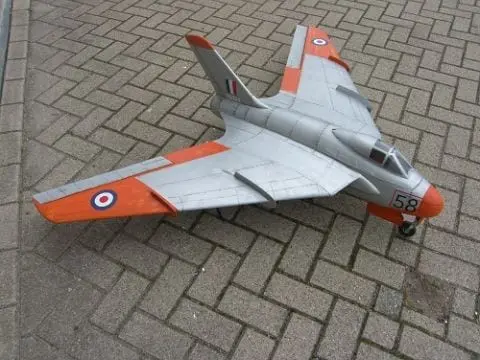

RBC DH108 Swallow 90mm Kit

Three DH108 ‘Swallow’ research aircraft were constructed to Air Ministry Specification E1/45 and E11/45 to investigate the low and high-speed characteristics of tailess, swept wing aircraft. The first of these (TG283) made its first flight at Woodbridge on 15th May 1946. Designed by John Carver Meadows Frost (who went on to design the Avro-Canada CF-100), the layout of the 108 resembled the configuration of the Messerschmitt ME163 Komet, a rocket-powered interceptor designed during World War II. www.baesystems.com

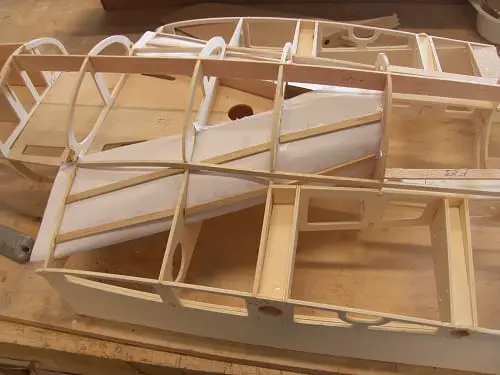

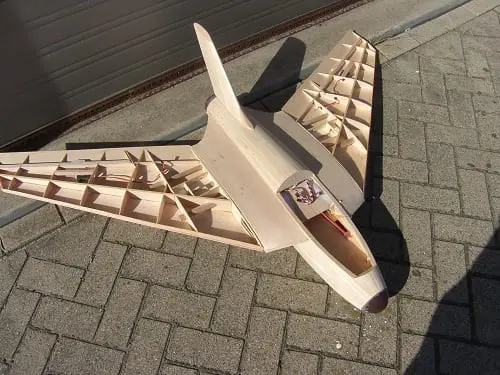

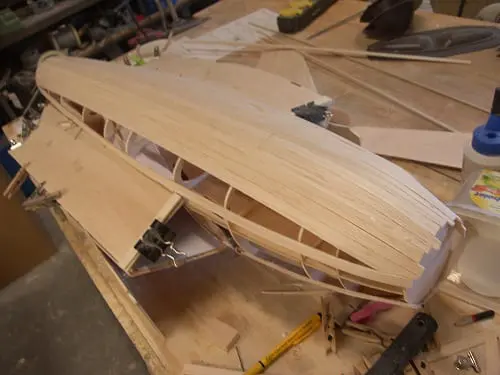

This easy to build kit will create a great looking jet that is easy to repair.  The RBC kit features construction of balsa, plywood and abs plastic to make an easy to build/repair kit that has great flying characteristics. The kit contains all parts cnc cut including all wood to finish the Swallow.  A large clear cad drawing is also included and also the vacuum formed tail cone, canopy and nose cone. Features a large top hatch for easy access to the battery and receiver area.

Decals not included in kit.

Specifications:
Wingspan: 1600mm/ 63 Inches
Length: 1000mm/ 39 Inches
Flying Weight: 3800g and up/ 8.3 lb.
Wing Area: 56 dm2
Functions: 4 Channel: Tailerons, Throttle, Retracts, Retract steering servo.
Features:

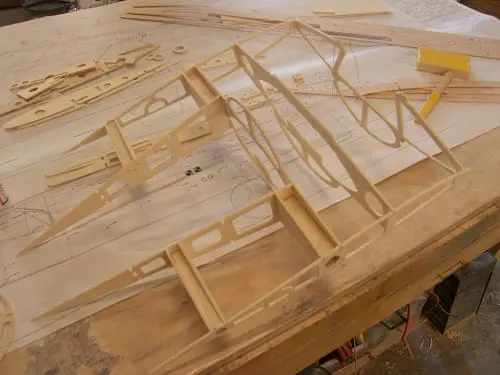

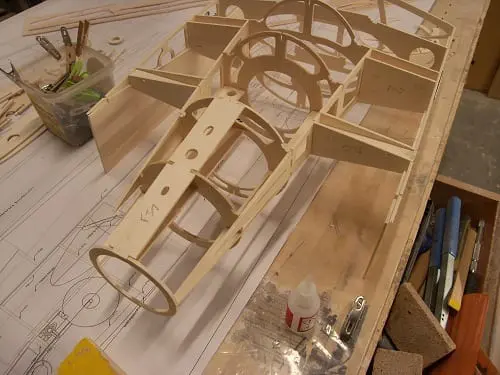

All formers and ribs CNC cut.
Unique tab lock design.

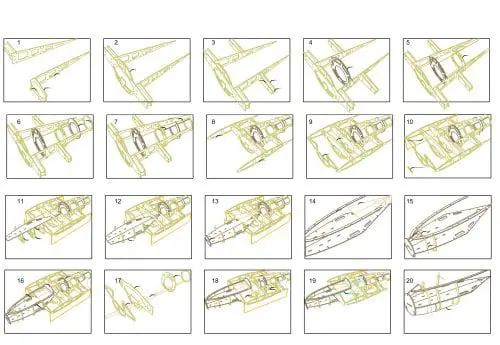

Photo Instructions on CD
Full Size Rolled Cad Plans With All Parts Shown
Vacuformed Canopy, tail cone, nose cone.
All wood and stringers
There is no hardware in this kit as most people have their own and want to use their own choice of materials and parts.

BUILDERS NOTE: REFER TO THE “ELECTRIC SETUP GUIDELINE” ON THE HOME PAGE TO HELP DETERMINE THE PROPER SET UP FOR FAN, ESC, MOTOR AND BATTERY.

ITEMS NEEDED FOR COMPLETION:

  • Ducted Fan: 90mm class fan unit- HET 9305, Wemotec Midifan, Schubeler DS-51 and others
  • Brush less Motor: 90mm Class
  • Electronic Speed Control: Brush less
  • Radio: 6ch for regular operation: Tailerons, Throttle, Retracts (steering)
  • Servos: 18g/ 64oz or higher with metal gears
  • Li-Po Battery: 6-8s recommended 5000mAh, 40C

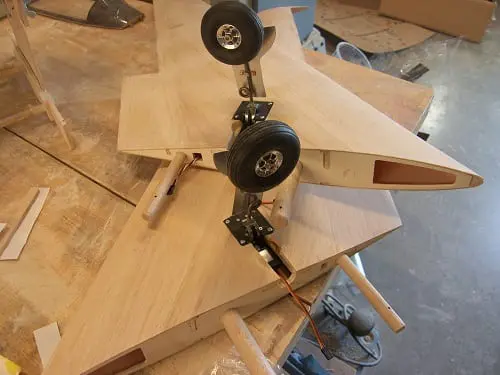

  • Electric retracts and struts: Kit designed with 4-5mm wire gear in mind.  Needs to be straight strut.
  • 2x 24″ Servo Connector-Tailerons
  • 1 ft Red and Black Silicone Wire
  • Battery and Gilt Connectors
  • Hinges, Push Rods, control horns needed
  • CA and Epoxy glues
  • Retracts for 90mm jet or wire landing gear.

Insurance Note:  Fan Jets USA recommends the purchase of shipping insurance. If insurance is not purchased and the package is lost or damaged, the most that can be claimed with the USPS and awarded to the purchaser (shipment recipient) is $50.00.  Fan Jets USA is not responsible for reimbursing the purchaser the difference of an order of any amount.  Shipping charges are not included in an insurance claim per USPS guidelines.

Additional information

Weight 8.6 lbs
Dimensions 41.5 × 8 × 5 in
