RBC Kits F4 Phantom

Description

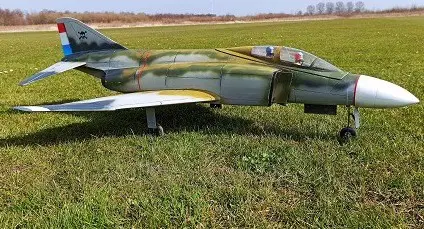

RBC F4 Phantom 90mm Kit

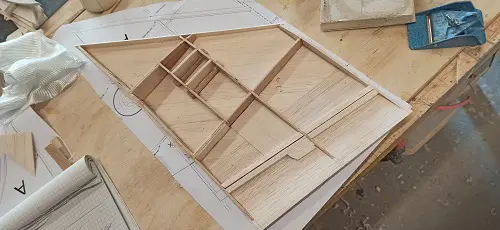

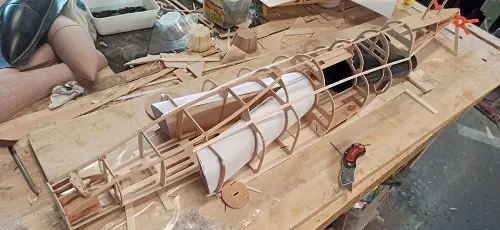

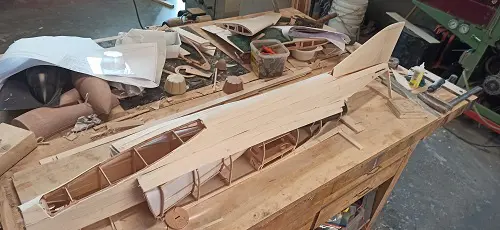

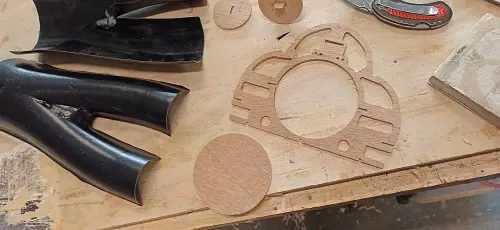

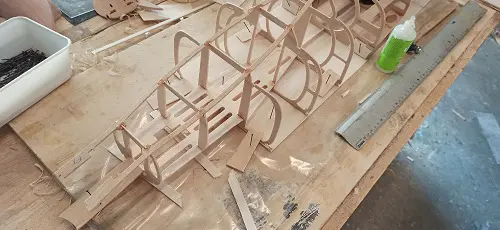

The RBC Kit F4 Phantom is one of the most iconic jets in an era where jets were reaching their full potential in air power. This easy-to-build kit will create a great-looking jet that is easy to repair.  The RBC kit features a construction of balsa, plywood, and abs plastic to make an easy-to-build/repair kit that has great flying characteristics.  The Phantom is an advanced aerobatic edf jet for the seasoned jet flyer. The kit contains all parts CNC cut including all wood to finish the kit.  Ductwork is included along with the vacuum-formed canopy and nose cone. Features a large top hatch for easy access to the battery and receiver area. Downloadable instructions are available at the link below.

Decals not included in the kit.

Click: RBC Kits F4 Phantom Instruction Manual

BUILDERS NOTE: REFER TO THE “ELECTRIC SETUP GUIDELINE” ON THE HOME PAGE TO HELP DETERMINE THE PROPER SET UP FOR FAN, ESC, MOTOR, AND BATTERY.

ITEMS NEEDED FOR COMPLETION:

• Ducted Fan: 90mm class fan unit- Jet Fan 90, JP Hobby, HET 9305, Wemotec Midifan, Schubeler DS-51, and others
• Brushless Motor: 90mm Class
• Electronic Speed Control: Brushless
• Radio: 5ch for regular operation: Ailerons, Elevator, Throttle, Rudder, Retracts (steering)
• Landing Gear: JP Hobby ER-005 or ER-120 electric retracts
• Struts: JP Hobby ER-005 oleo struts
• Servos: 25g metal gear or higher
• Li-Po Battery: 5-6s  5000mAh recommended
• Y Servo Connector-Ailerons
• 1 ft Red and Black Silicone Wire
• Battery and Gilt Connectors
• CA and Epoxy glues
• Servo Extensions- Ailerons/Rudder/ Elevator
• Control Horns, pushrods, clevises
