RBC Kits L-39 Albatros

Description

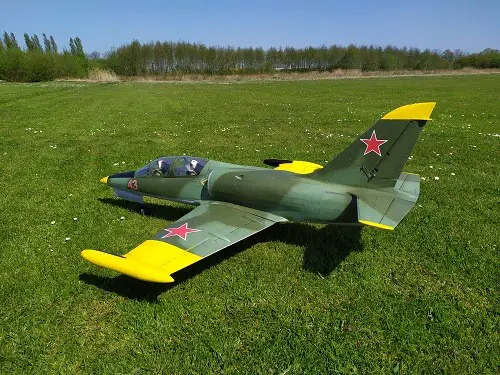

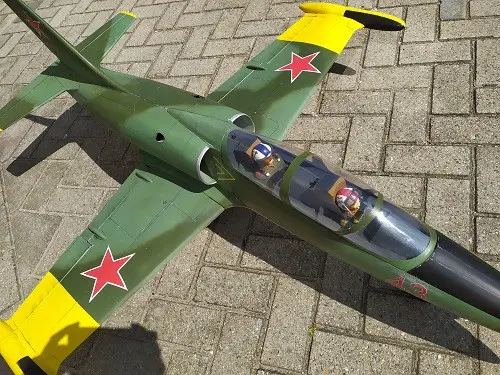

RBC L-39 Albatros 90mm Kit

The Aero L-39 Albatros is a high-performance jet trainer developed in Czechoslovakia by Aero Vodochody. It was designed during the 1960s as a replacement for the Aero L-29 Delfín as a principal training aircraft. It was the first trainer aircraft to be equipped with a turbofan power plant. The type was exported to a wide range of countries as a military trainer.

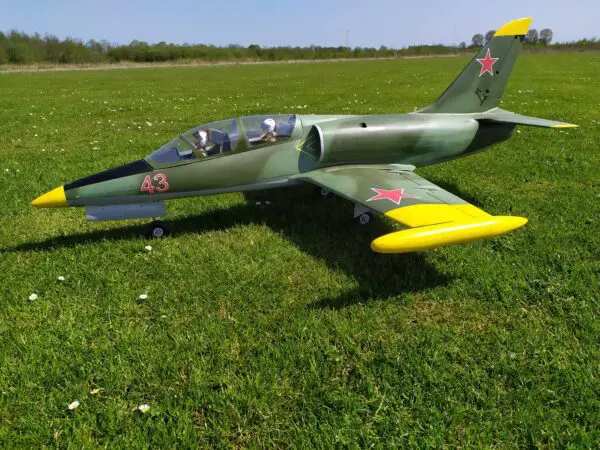

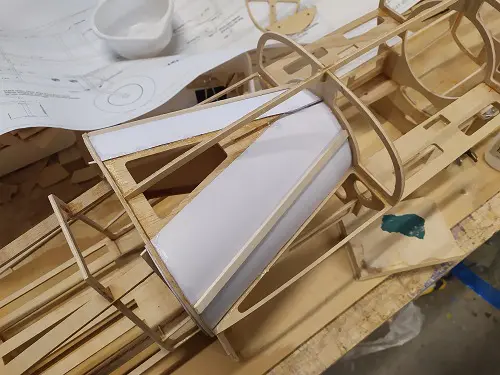

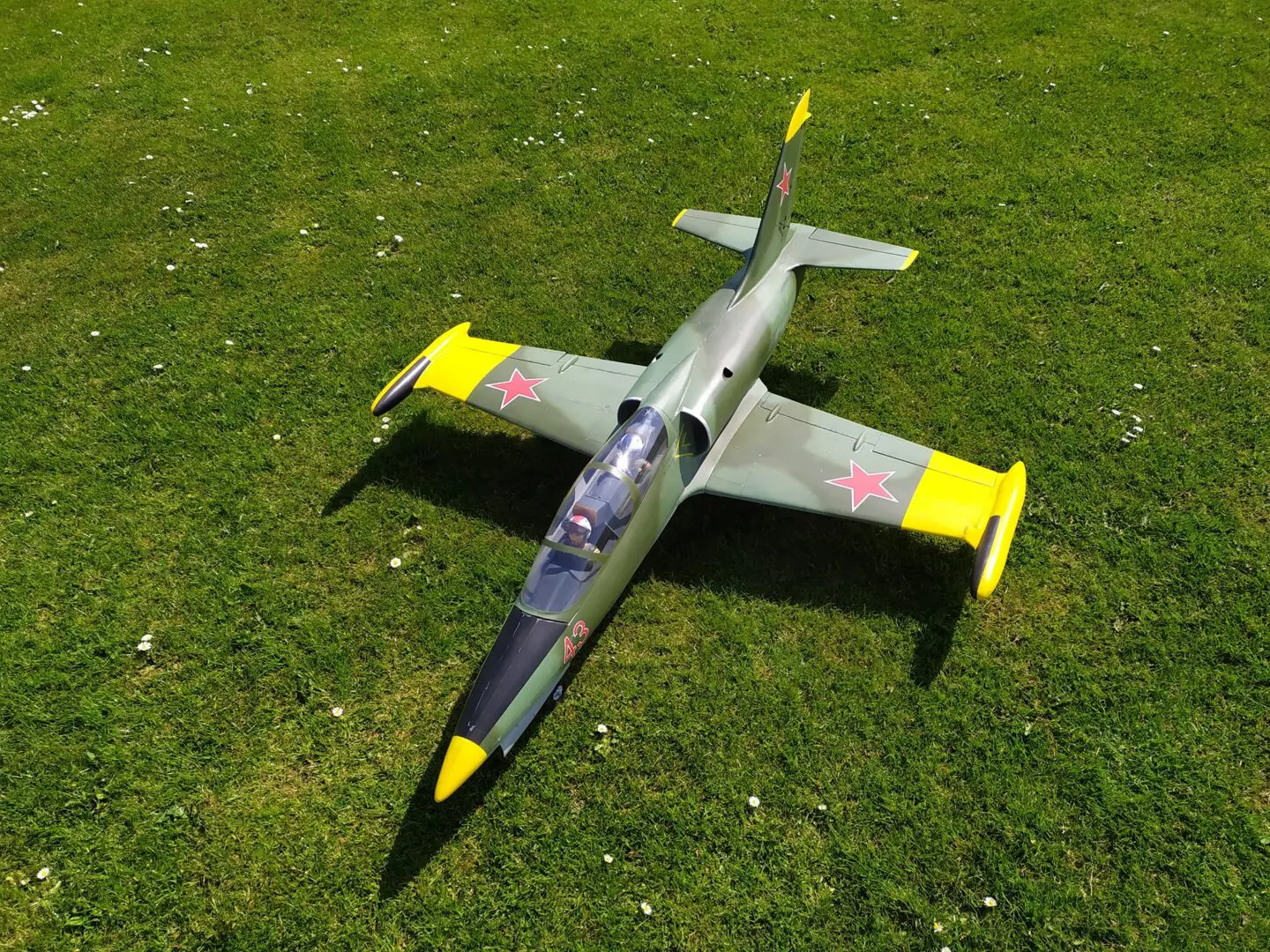

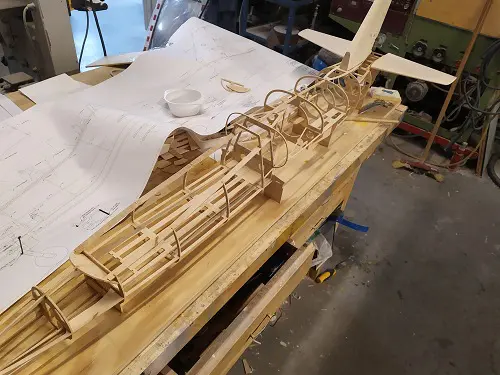

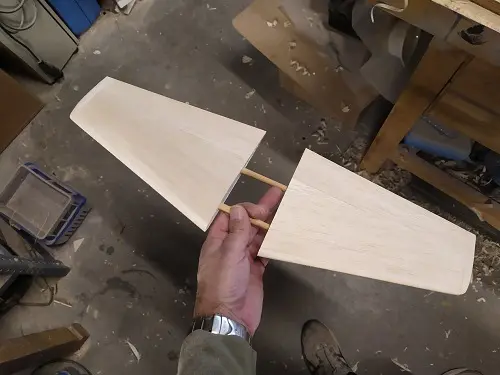

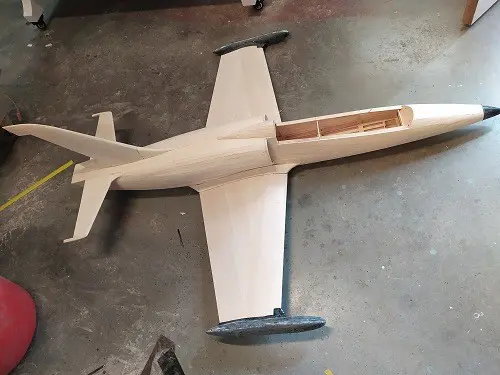

The RBC L-39 Albatros is a moderate build kit and will create a great looking jet that will get attention at the flying field. The RBC kit features construction of balsa, plywood and abs plastic to make an easy to build/repair kit that has great slow flying characteristics and lands slow like a trainer.  The kit contains all parts cnc cut including all wood to finish the kit.  A large clear cad drawing with instructions is also included and a vacuum formed canopy along with front air intake. It features a large top hatch for easy access to the battery and receiver area. Instructions are on a cd and built on a frame where the parts interlock for strength.  It features removable wings for easy transportation.

Does not come with decals, landing gear or hardware kit.

Link for instruction manual

BUILDERS NOTE: REFER TO THE “ELECTRIC SETUP GUIDELINE” ON THE HOME PAGE TO HELP DETERMINE THE PROPER SET UP FOR FAN, ESC, MOTOR AND BATTERY.

ITEMS NEEDED FOR COMPLETION:

• Ducted Fan: 90mm class fan unit- Jetfan 90, HET 9305, Wemotec Midifan, Schubeler DS-51, JP Hobby and others.
• Brush less Motor: 90mm Class
• Electronic Speed Control: Brushless
• Retract Gear: Servo-less Retract with Metal Trunion 44mm x 41mm Mount x3 (JP Hobby 005 electric retracts and 005 Oleo Struts recommended)
• Radio: 6ch for regular operation: Ailerons, flaps, elevator, rudder, throttle, retracts
• Servos: 6x 13g or higher with metal gears (flaps x2, elevator x2, rudder (thin wing servo) and nose steering)
• Servos: 2x 30G or higher with metal gears for ailerons. Thin wing servos recommended.
• Li-Po Battery: 6-8s recommended w/ 40C discharge rate or higher with 4,500-5,800mAh
• Wheels: Nose wheel 50mm/ 2″ Inch, Main wheel up to 80 mm/Wheel Max
• 2x Y Servo Connector-flaps and elevator
• 1 ft Red and Black Silicone Wire
• Battery and Gilt Connectors, canopy closing,hinges ,horns ,small parts to your choice
• CA and Epoxy glues
• Hinges for control surfaces
• Servo Extensions- Ailerons (x2), Flap (x2), Rudder, Throttle (x2), Retract, Elevator

RBC L39 maiden flight with head cam.

Second Flight on L-39
