RBC Kits Mig 25 Foxbat

Description

RBC Mig 25 Foxbat 90mm Kit

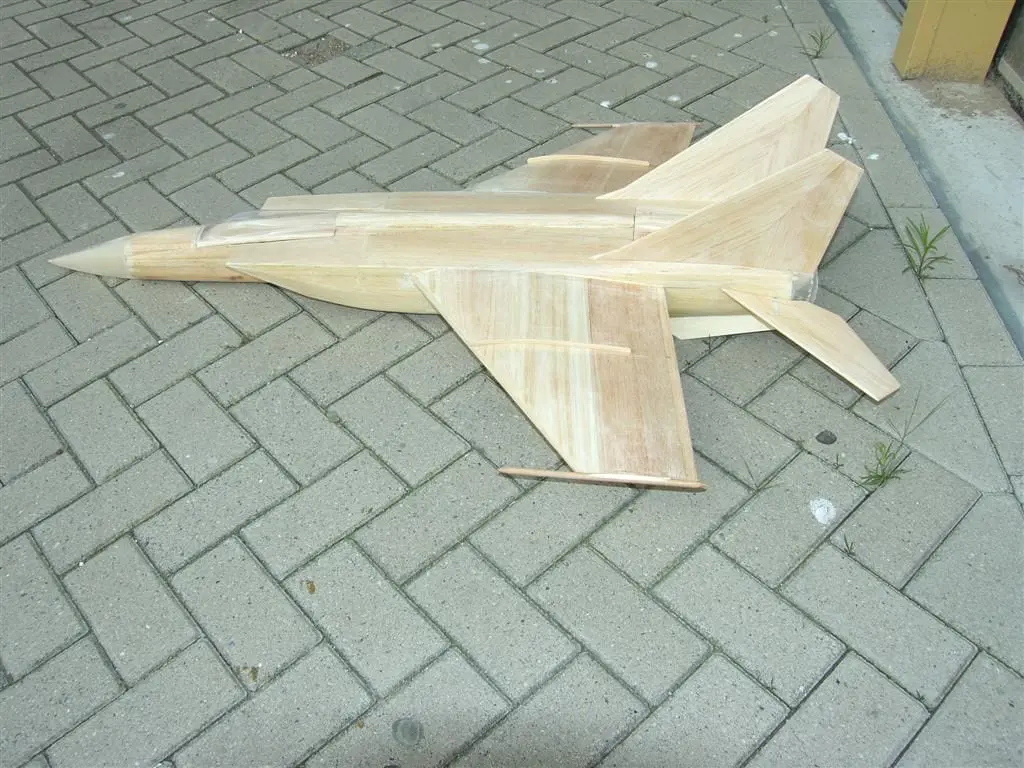

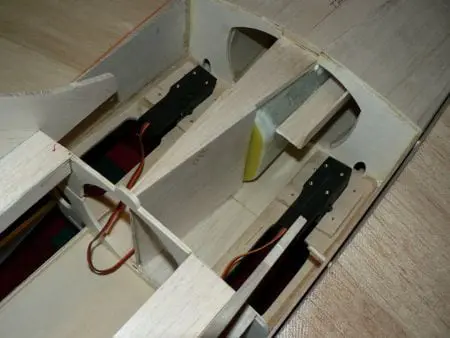

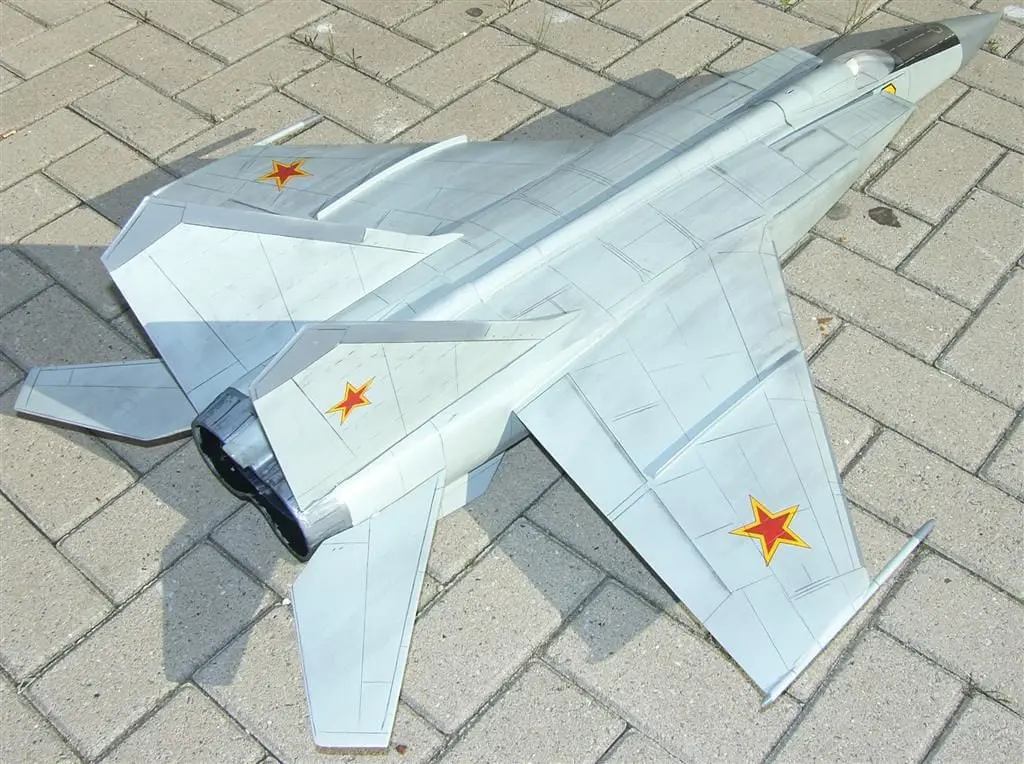

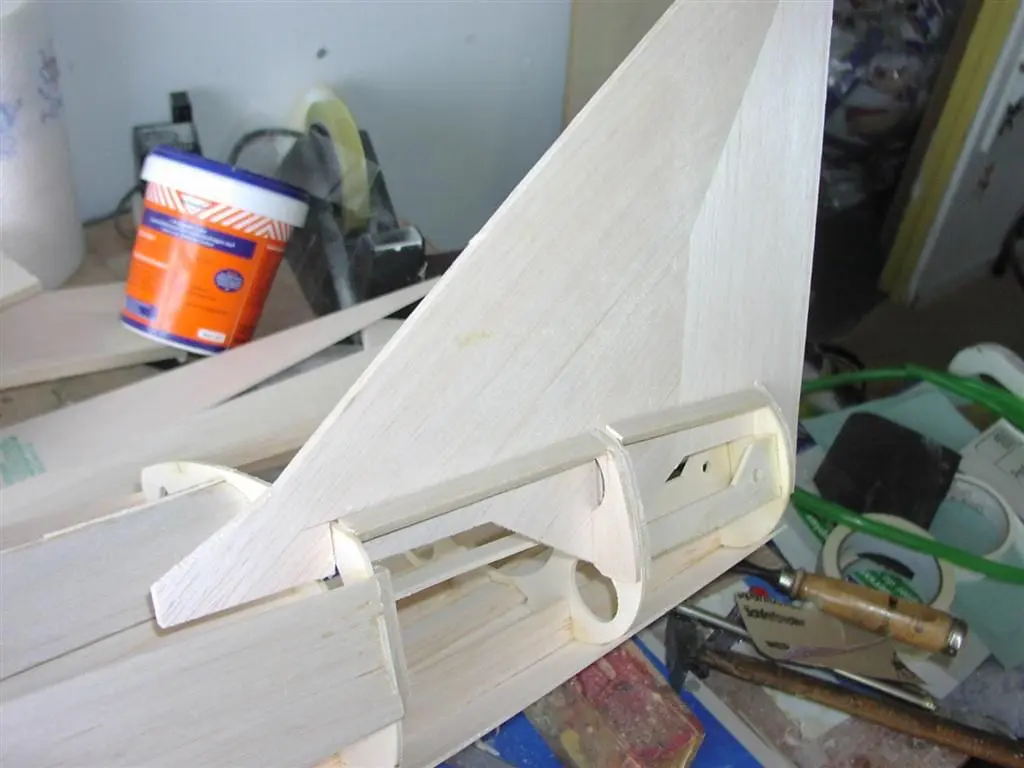

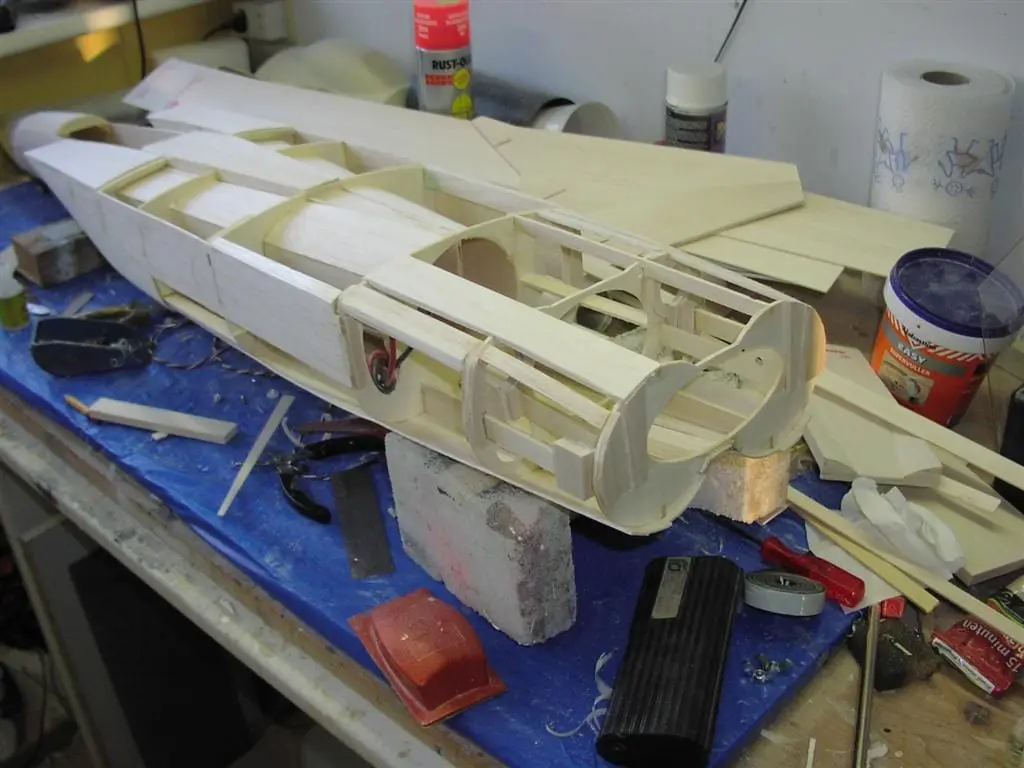

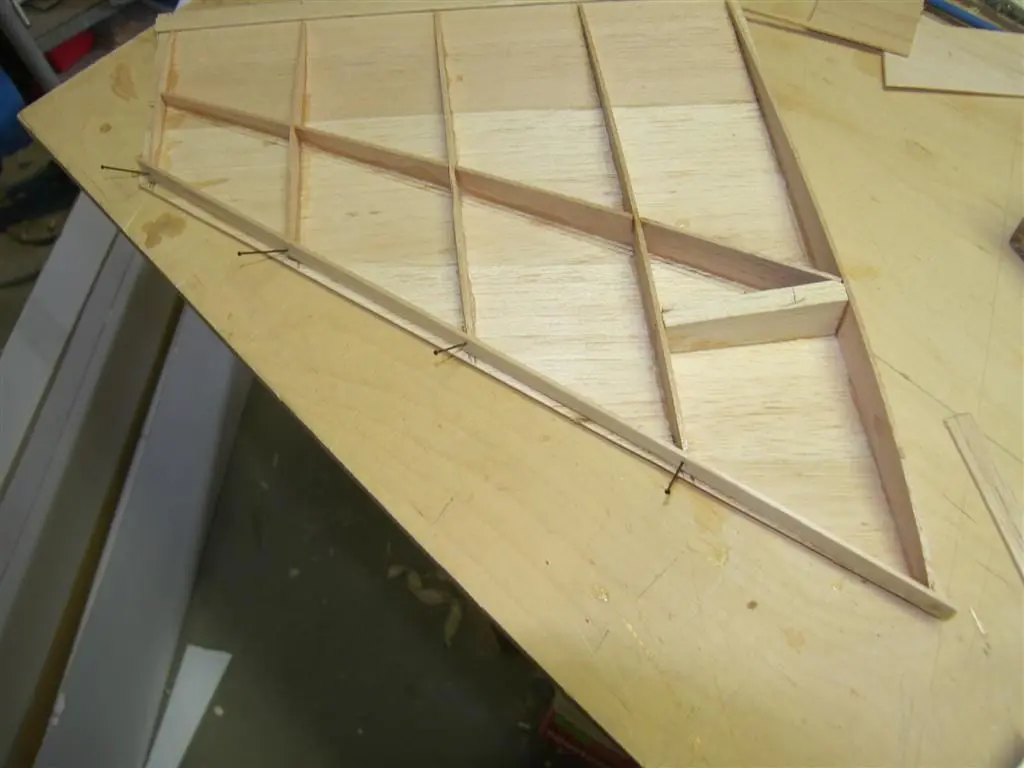

The RBC Kit Mig 25 “Foxbat” is one of the most iconic jets in a era where the cold war was heating up. This easy to build kit will create a great looking jet that is easy to repair.  The RBC kit features construction of balsa, plywood and abs plastic to make an easy to build/repair kit that has great flying characteristics. The kit contains all parts cnc cut including all wood to finish the Mig.  A large clear cad drawing is also included and also the vacuum formed tip canopy and nose cone. Features a large top hatch for easy access to the battery and receiver area. Instructions on photo sheet and full size plans.  The Mig 25 works extremely well with the Jetapult launching system from Fan Jets USA or a set of electric retracts.

Decals not included in kit.

BUILDERS NOTE: REFER TO THE “ELECTRIC SETUP GUIDELINE” ON THE HOME PAGE TO HELP DETERMINE THE PROPER SET UP FOR FAN, ESC, MOTOR AND BATTERY.

ITEMS NEEDED FOR COMPLETION:

• Ducted Fan: 90mm class fan unit- HET 9305, Wemotec Midifan, Schubeler DS-51 and others
• Brush less Motor: 90mm Class
• Electronic Speed Control: Brush less
• Mini Servos (Metal Gear): 2 for regular operation: 2- Tailerons, 1-Rudder (Optional for gear steering)
• Li-Po Battery: 5-8S 3200mAh Lipo
• 3-5 Channel transmitter/Receiver
• 1 ft Red and Black Silicone Wire
• Battery and Gilt Connectors
• CA and Epoxy glues
• 2x 18 in/ 457 mm Servo Extensions- Tailerons
• 12 in/ 305 mm Servo Extensions- Throttle
