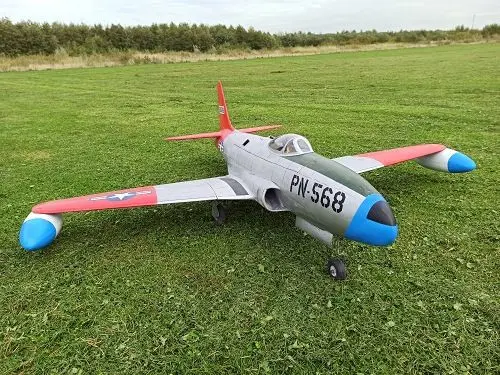

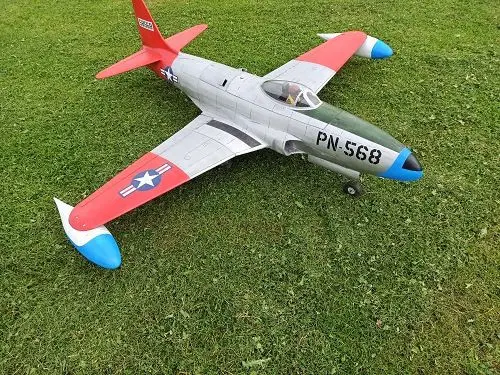

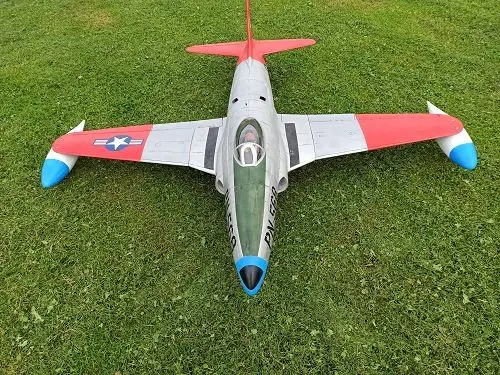

RBC P80 90mm Kit
Item #: RBC-P80
Manufacturer: RBC Kits
Manufacturer’s Product Number: RBC-P80
Pre-Order the P80 Shooting Star from RBC Kits. As soon as they arrive we will ship one to you.

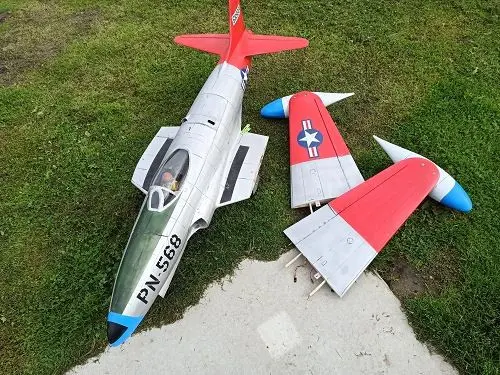

RBC P80 90mm Kit
The Lockheed P-80 Shooting Star was the first jet fighter used operationally by the United States Army Air Forces (USAAF) during World War II. Designed and built by Lockheed in 1943 and delivered just 143 days from the start of the design process, production models were flying, and two pre-production models did see very limited service in Italy just before the end of World War II. Designed with straight wings, the type saw extensive combat in Korea with the United States Air Force (USAF) as the F-80.

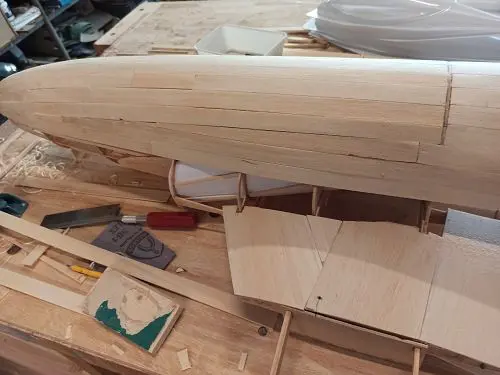

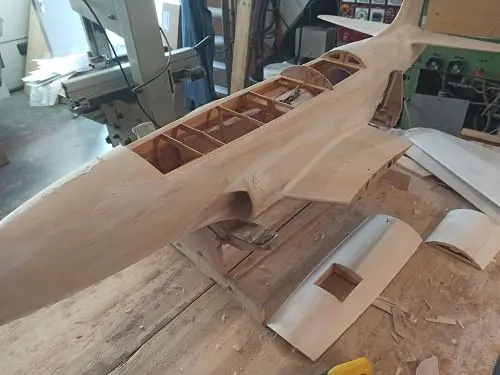

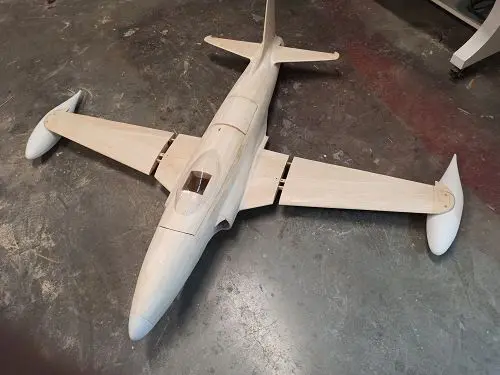

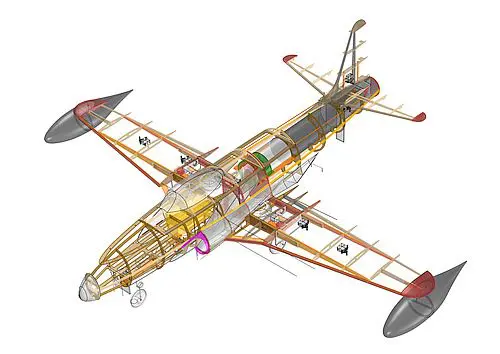

This easy to build kit will create a great looking jet that is easy to repair. The RBC kit features construction of balsa, plywood and abs plastic to make an easy to build/repair kit that has great flying characteristics. The kit contains all parts cnc cut including all wood to finish the P80 Shooting Star. A large clear cad drawing is also included and also a vacuum formed canopy and nose cone. Features a large top hatch for easy access to the battery and receiver area.
Decals not included in kit.
Full pictures and instructions download here
- Wing Area: 36.5 dm2
- Wing Span; 1545 mm/ 60.8 Inches
- Length :1345mm/ 52.9 Inches
- Flight Weight: Starts at 4500 grams/ 10 lbs.
- 6 Channel: Ailerons, elevator, throttle, retracts, flaps, nose wheel steering, rudder

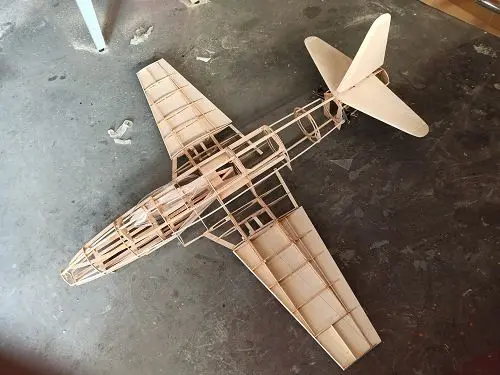

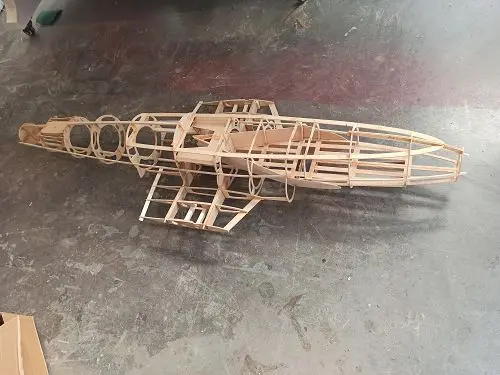

- All Formers And Ribs are cnc cut parts in balsa and ply
- Unique Tab Lock Design
- Photos and Instructions download
- Full size rolled cad plans with all parts shown included.
- Vacu-formed Canopy, nosecone, headrest ducting, paper inlet and outlet ducting
- All wood and sheeting to make the P80 3 sheets of balsa sheeting, 5 sheets of lite ply and spruce and balsa stringers
- Cnc cut ply and balsa parts
- There is no hardware in the Bae Hawk like hinges and horns etc etc
BUILDERS NOTE: REFER TO THE “ELECTRIC SETUP GUIDELINE” ON THE HOME PAGE TO HELP DETERMINE THE PROPER SET UP FOR FAN, ESC, MOTOR AND BATTERY.
ITEMS NEEDED FOR COMPLETION:
- Ducted Fan: 90mm class fan unit- HET 9305, E-Jets Jetfan, JP Hobby, Schubeler DS-51 and others 8-10 cells 5000
- (a FMS unit or equal will not work in RBC Kits edf jets)
- Brushless Motor: 90mm Class
- Electronic Speed Control: Brushless
- Radio: 6ch for regular operation: Throttle, Rudder, Elevator, Flaps, Retracts
- Servos: 13g higher with metal gears/ Flaps need 30g torque
- Li-Po Battery: 8s recommended 5000mAh, 40C
- Hinges, Push Rods, control horns needed
- CA and Epoxy glues
- Retracts for 90mm jet or wire landing gear.
