JP Hobby Multifunction Landing Gear and Doors Sequencer

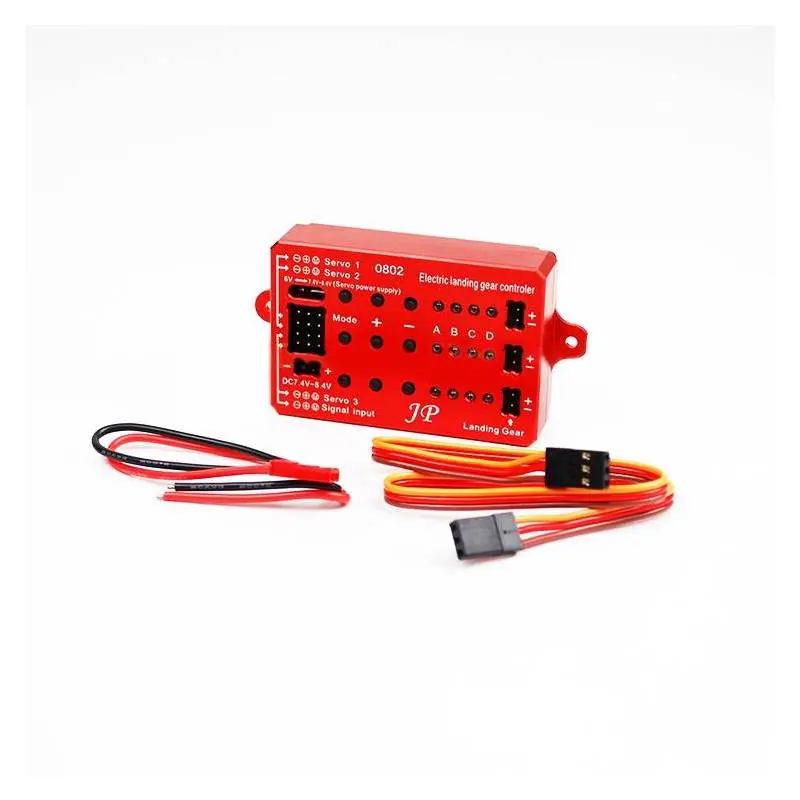

Description

This is the mother of all JP Hobby controllers for their electric retracts and sequencers.  This control box combines all the other control boxes into 1.

This new JP Hobby electronic module is used to control the animation sequences of retractable landing gear as well as doors. It can also be used with other enclosures equipped with integrated end-of-limit switches.

The functions of the JP Hobby module are multiple:
Automatic detection of the supply voltage.
Adjusting the supply voltage of the servos actuating the gear doors.
Adjusting the direction of rotation of the servos actuating the gear doors.

Multi-Function JP Hobby Retracts Controller Manual

Mode selection:

– 1: Opened gear doors when the landing gear is out
– 2: Closed gear doors when the landing gear is out

Specifications

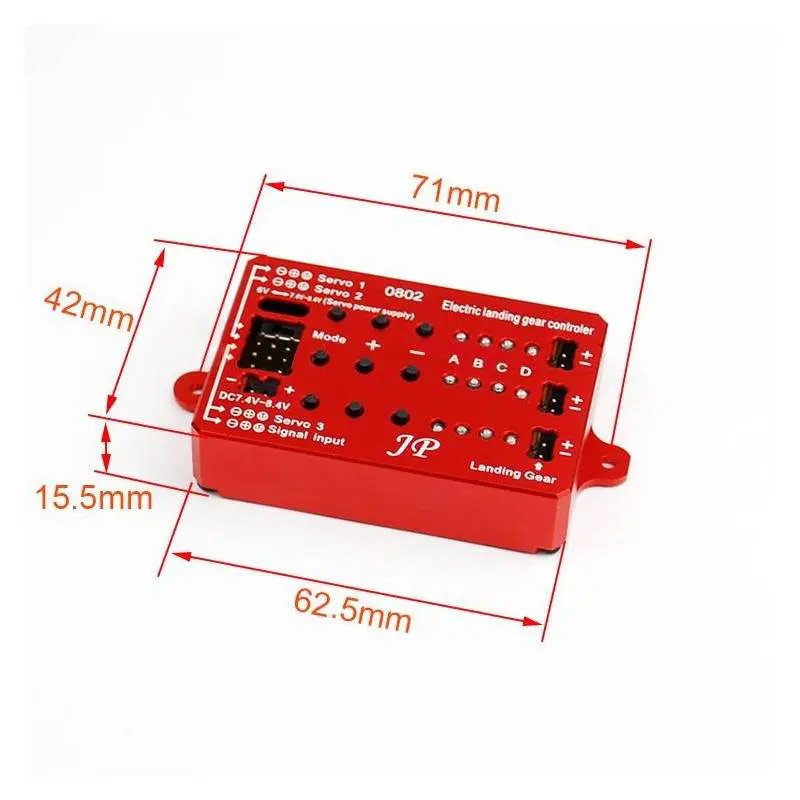

• Dimensions: 63x42x16mm
• Voltage range: 7.4-8.4V
• Weight: 34.7g


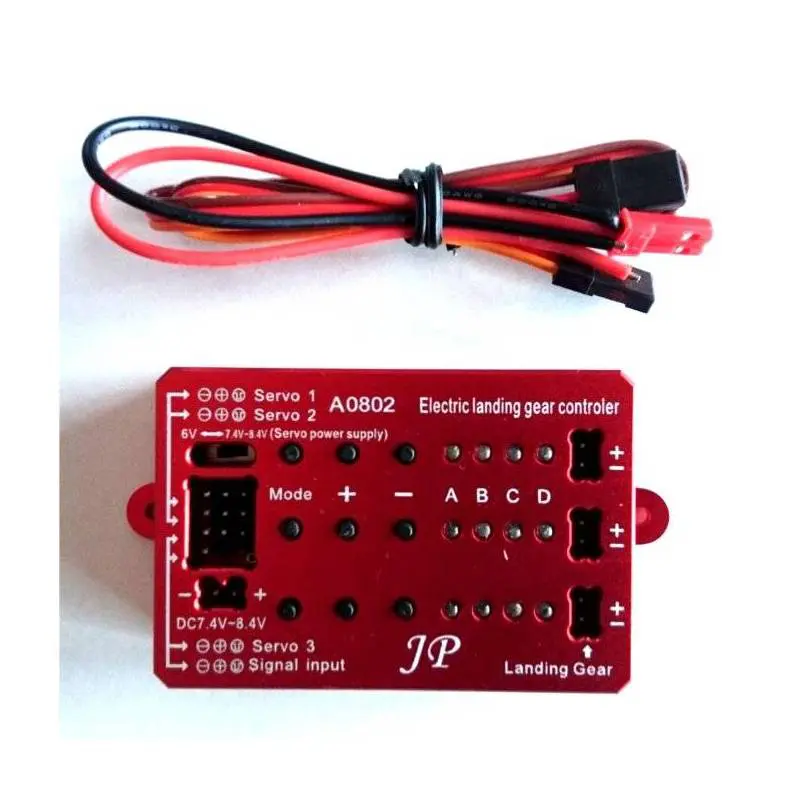

  How to use it

  To change the direction of the Door Servo:

  • Long press the “MODE” key
  • A or B will flash.
  • Press + or – to change the direction.

  To change the -100% Servo stroke:

  • Long press the “MODE” key
  • A or B will flash.
  • Press “MODE” once
  • A and B will flash.
  • press + and – to increase or decrease stroke

  To change Servo stroke +100%:

  • Long press the “MODE” key
  • A or B will flash.
  • Press twice on “MODE”
  • C and D will flash.
  • press + and – to increase or decrease stroke

  To change the “MODE”:

  • Long press the “MODE” key
  • A or B will flash.
  • Press “MODE” 3 times
  • C or D will flash.
  • press + for “MODE 1” or – “MODE 2”
