RBC Kits Horten XII

Description

Stock Notice:  This is not a normal stock item with Fan Jets USA. If one is wanted it needs to be purchased as a backorder.  It will then be placed with our next RBC Kits order.

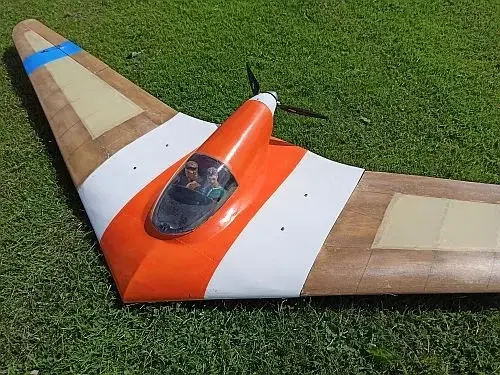

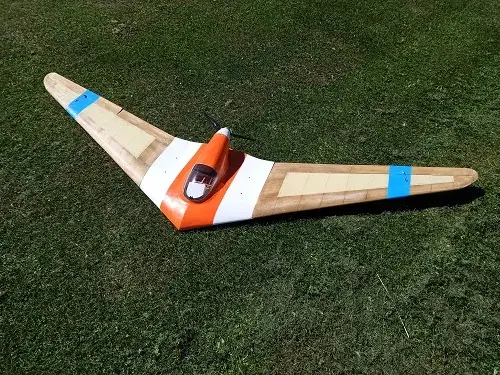

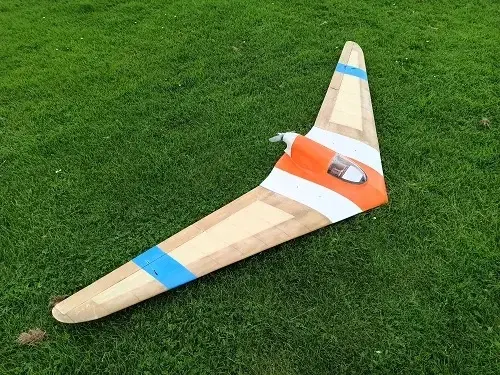

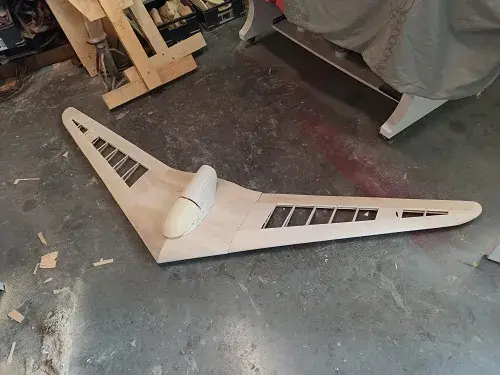

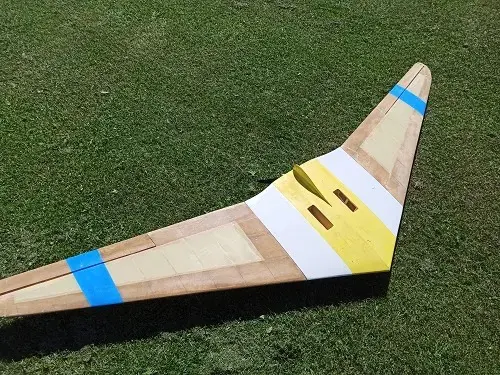

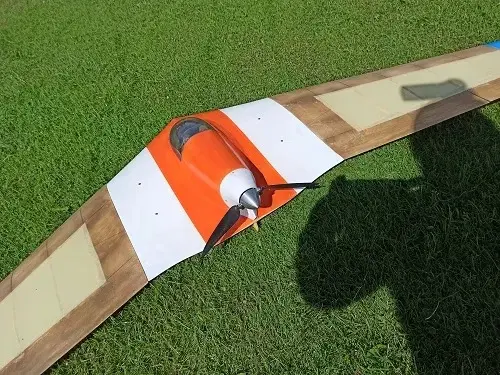

This fast easy-to-build kit will create a great-looking flying wing that is easy to repair. The RBC kit features a construction of balsa, plywood, and ABS plastic to make an easy-to-build/repair kit that has great flying characteristics. The kit contains all parts CNC cut including all wood to finish the kit. A large clear cad drawing is also included as the vacuum-formed canopy.

This kit will work very well with the Jetapult launching system with Fan Jets USA.  Hand launching is also an option.

Hardware is not included.

Design Features:

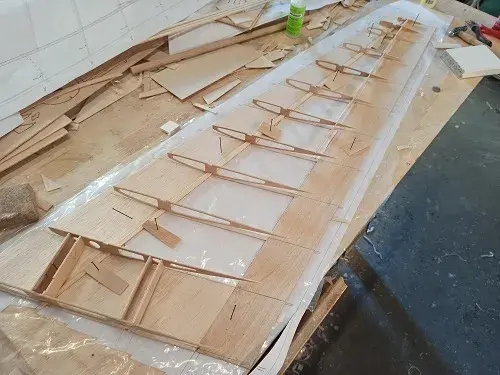

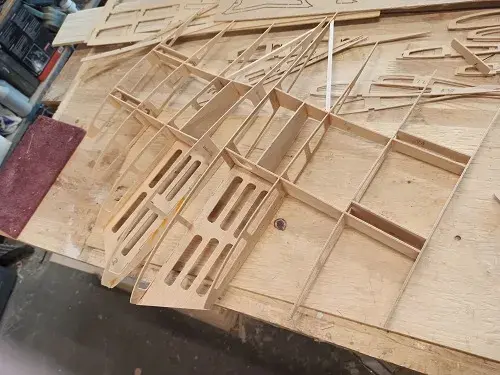

• All Formers And Ribs CNC Cut
• Unique Tab Lock Design
• One Piece Design Easy transportation
• Motor/Fan compartment Easily accessible
• Battery Access Through Canopy

• Wing Area: 60dm2
• Wing Span; 2350 mm
• Flight Weight: Starts at 1900 grams
• Wing Loading: 32gr dm2
• 3 Channel  Ailevons & Throttle

Items needed for completion:

• Control Horns, fasteners
• 4 Channel Radio
• Battery, Motor etc Cells 4s3000 lipo
• Power req: 3520 830kv
• Controls: 2x servo
